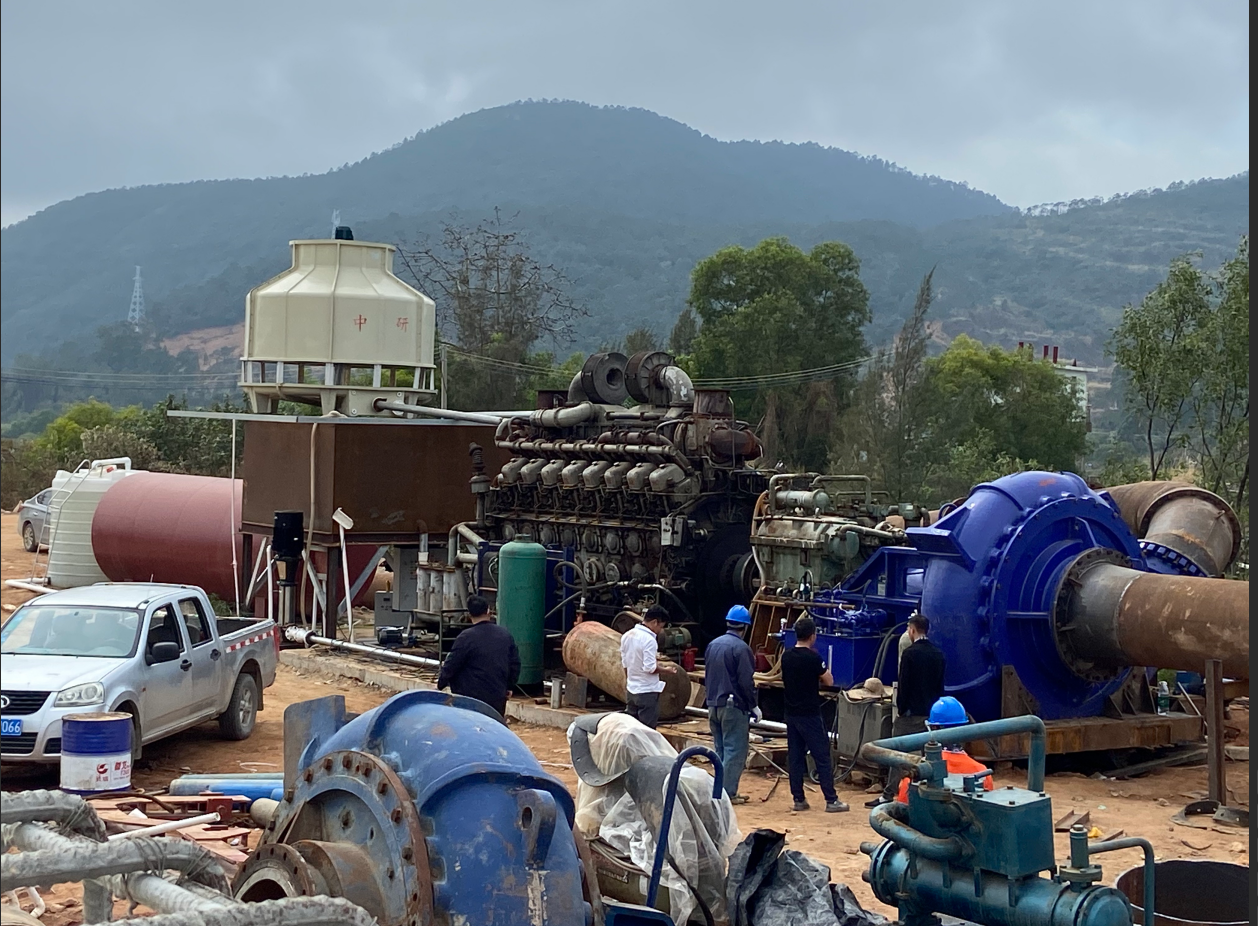

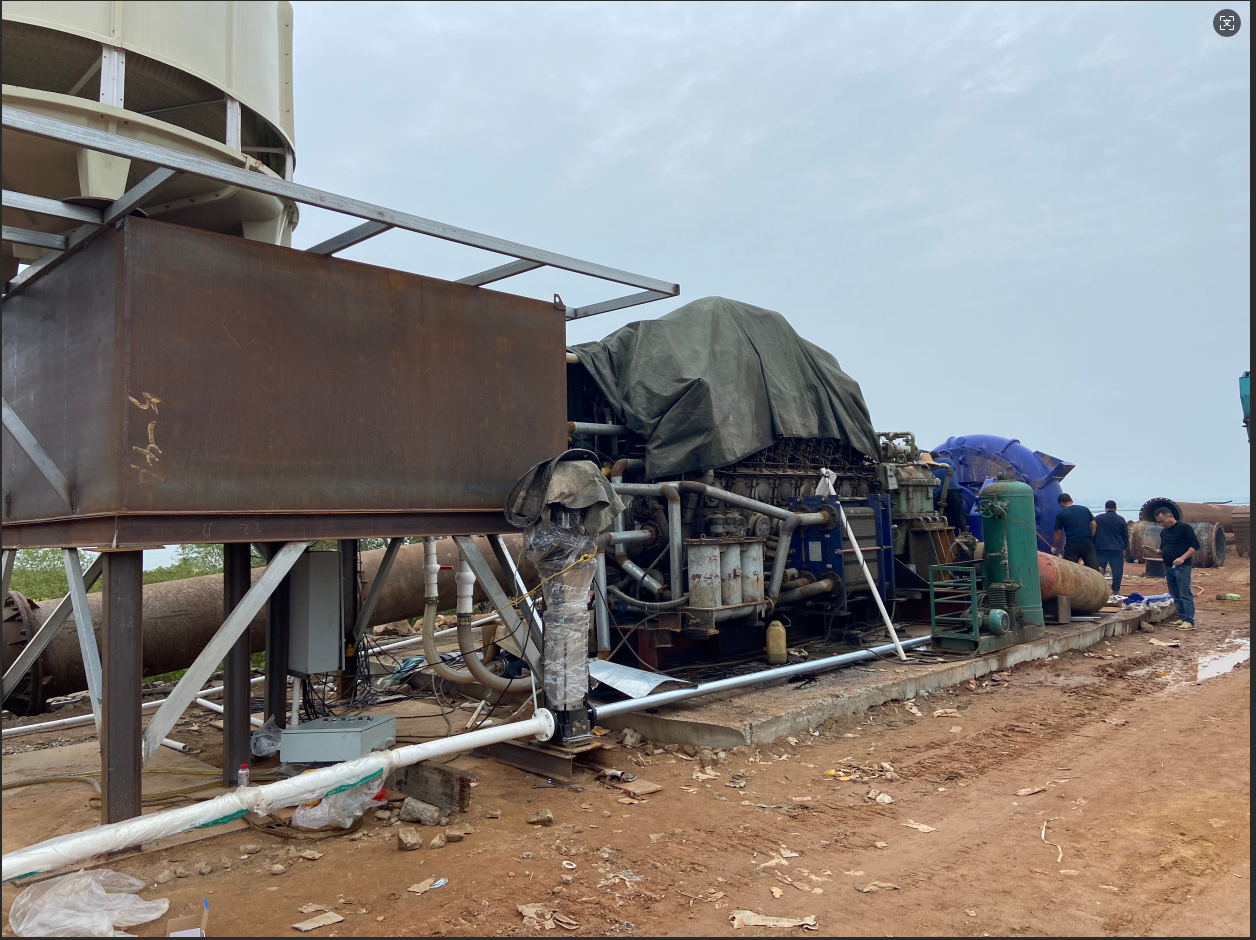

Booster Pump Station Commissioning - Yangyang Marine Dredging Project

FAQs about Booster Pump Station

1. Q1: What is the main function of the booster pump station in the Dredging project?A: The core function is to increase the conveying pressure of dredging materials, extend the onshore discharge distance of the Cutter Suction Dredger or even Trailing Suction Hopper Dredger, ensure the smooth transportation of dredged soil/sediment, and improve the overall operation efficiency of the Dredging project.
2.

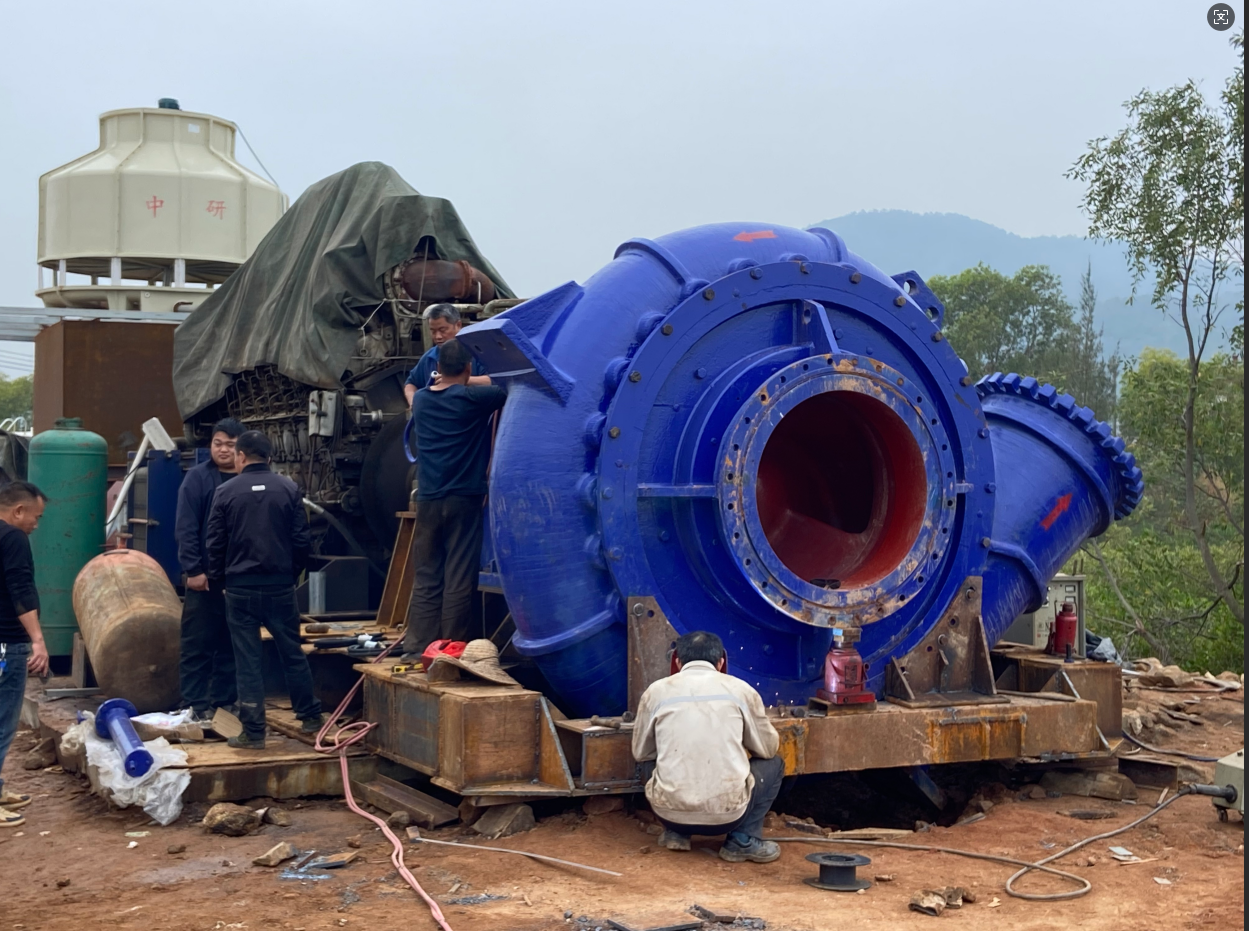

   Q2: What core components does a dredging booster pump station include?A: It is equipped with key components such as diesel engine (power source), gearbox (speed regulation), Dredge Pump (core conveying part), fixed base (stabilization), as well as supporting pipeline and control systems.

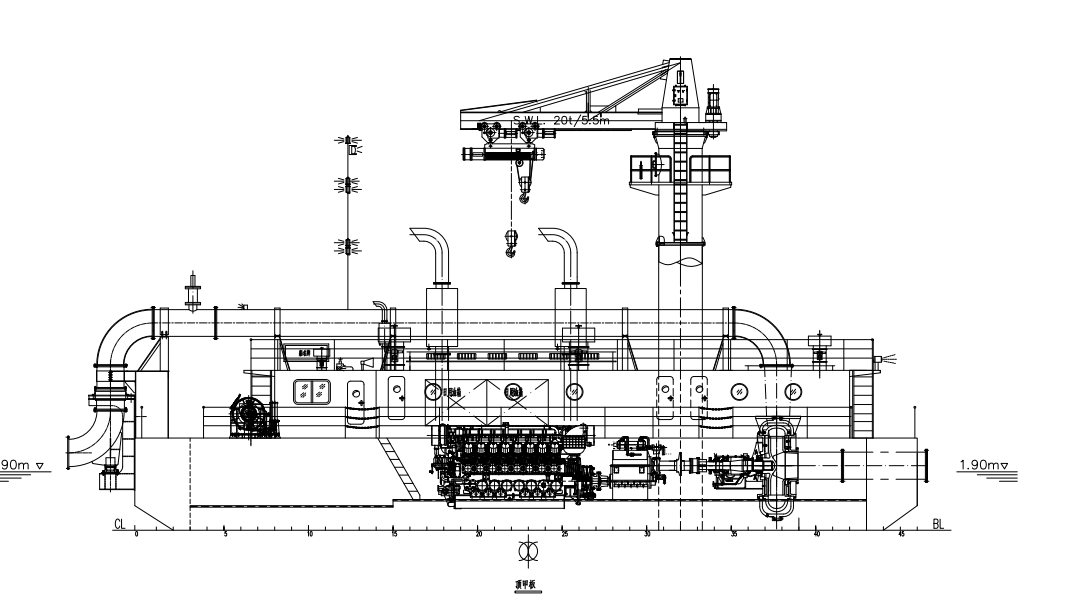

   If used for floating Booster Station then need additional a real pontoon, crane for maintenance .

3.

4.
   Q3: What is the flow rate of the booster pump station for Yangyang Marine Dredging Project, and how to ensure its stable operation?
   A: The designed flow rate is 14400M³/H. All components are fully installed and debugged on-site; regular inspection of power and transmission parts, real-time monitoring of pump operation parameters, and professional maintenance can ensure its stable operation.
5.
   Q4: How does the booster pump station extend the discharge distance of the cutter suction dredger?
   A: It compensates for the pressure loss of dredging materials during long-distance pipeline transportation by increasing the hydraulic pressure of the conveying pipeline, so that the dredged materials can be transported to a longer onshore designated area through the pipeline.
6.
   Q5: What preparations are needed for the on-site commissioning of the dredging booster pump station?
   A: First, confirm that all components are installed in place and meet the design requirements; then check the connection of pipelines and circuits, debug the power and transmission system, and conduct a trial run of the whole machine to verify all operation parameters.


7. Q6: What are the key points of daily maintenance of the dredging booster pump station?
   A: Key points include checking the oil level and operation status of the diesel engine and gearbox, cleaning the dredge pump impeller to prevent blockage by sundries, inspecting the tightness of pipeline connections, and recording all operation and fault data in a timely manner.
