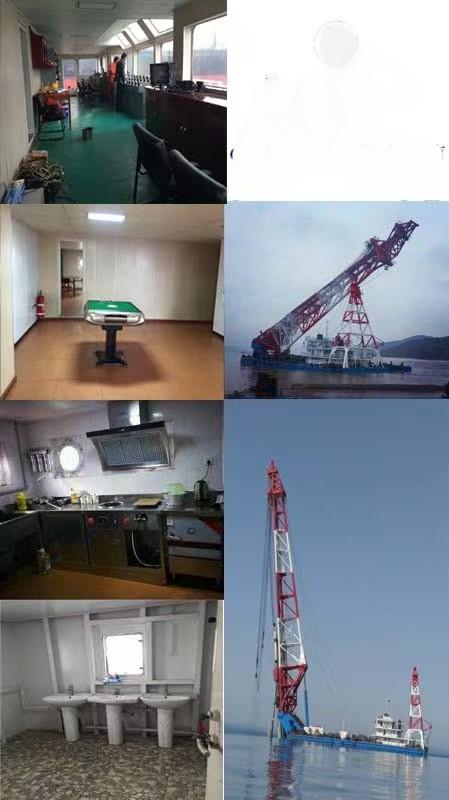

Pile Driving Barge | 96-meter Class Pile Frame
Engineered for the most demanding deep-water foundation projects, this piling vessel features an industry-leading 96-meter pile leader. This exceptional height enables the precise installation of extra-long steel tubular piles and monopiles required for deep-water offshore wind farms, cross-sea bridges, and major port infrastructure.
Equipped with heavy-duty hydraulic hammers, advanced Positioning 8-point mooring systems, and centimeter-level DGPS guidance, the vessel ensures unmatched verticality and efficiency even in challenging open-sea conditions. It represents the pinnacle of marine co...
Category：Pile Driving Barge | 96-meter Class Pile Frame Browse number：227 Release time：2026-02-28 17:17:00
-
Share：
Contact us
Inquiry
-
Loa65.80 m (including appendages)
Length Between Perpendiculars Lpp 59.80 m
Moulded Breadth B 28.20 m
Moulded Depth D 4.60 m
Design Draft d 2.70 m
Camber f 0.35 m
Frame Spacing 0.60 m
Crew19 P
