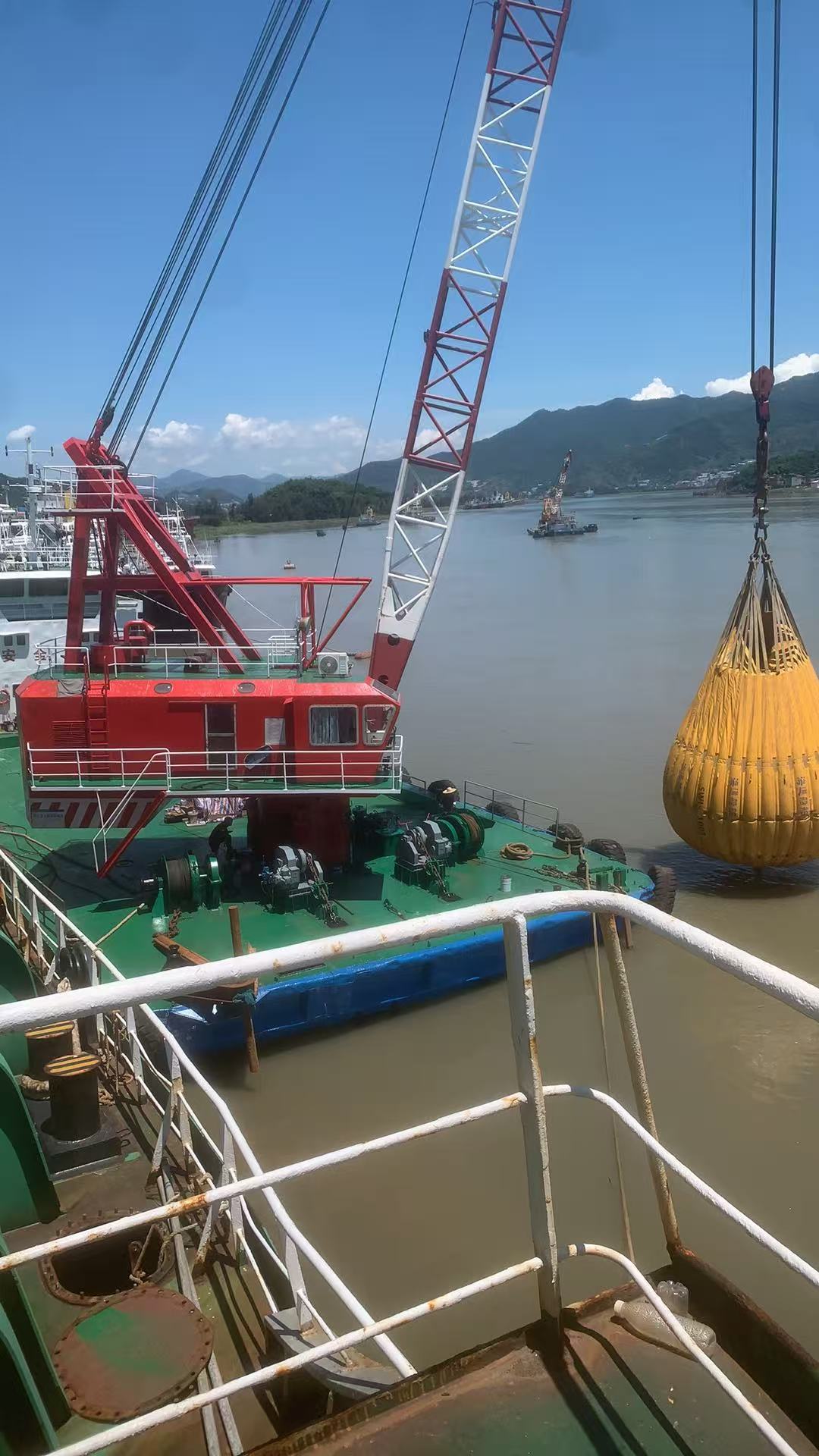

80-Ton Fully Revolving floating crane Specification

I. Basic Vessel Information

Vessel Identification Number (VIN): CN2001455

Ship Inspection Registration Number: 2006B1100136

Navigation Area: Coastal

Gross Tonnage: 616

Net Tonnage: 184

Vessel Type: Engineering Vessel (Floating Crane)

Maximum Crew: 8 persons

Keel Laying Date: June 26, 2001

Build Completion Date: November 16, 2006

Certification: ZC Certificate, Dandong Transportation Comprehensive Administrative Law Enforcement Team

Certificate Issue Date: October 20, 2023

Certificate Expiry Date: January 5, 2029

II. Main Hull Parameters

Length Overall (LOA): 42.30 m

Length (LBP): 39.96 m

Beam: 15.00 m

Depth: 3.50 m

Full Load Draft: 2.400 m

Light Draft: 2.149 m

Full Load Displacement: 1250.700 tons

Hull Material: Steel

Number of Watertight Transverse Bulkheads: 7

Number of Cargo Holds: 0

Structural Type: Not Provided

III. Propulsion System

Main Engine Model: R6160A-4 (Diesel Engine)

Number of Main Engines: 2 units

Rated Power: 184.00 kW (each)

Rated Speed: 1000 r/min

Manufacturer: Weichai Power Co., Ltd.

Manufacturing Date: January 1, 2006

Gearbox Model: Z300

Shafting Diameter: 115 mm

Number of Shaftings: 2

IV. Anchoring Equipment

Anchor Type: Hall Anchor, Speck Anchor

Number of Anchors: 6 total (2 Starboard Bow, 2 Port Bow, 1 Starboard Stern, 1 Port Stern)

Windlass Model: JJK-60, YH32

Windlass Power: 15 kW

Anchor Chain Diameter: 28.00 mm, 32.00 mm

Anchor Chain Length: 250.00 m, 192.50 m

Anchor Chain Material: Wire Rope, Grade AM3

V. Steering Gear

Number of Rudders: 2

Main Steering Gear Type: Electro-hydraulic

Auxiliary Steering Gear Type: Manual Hydraulic

VI. Life-Saving Appliances

Life Raft: Non-self-righting throw-over type, capacity 15 persons, 2 units

Lifebuoys:

DF5555-I: 9 units

DF5555-I (with self-igniting light): 1 unit

DF5555-I (with 30m buoyant lifeline): 2 units

VII. Navigation Equipment

AIS: FT-8800, 1 unit

GPS: 1 unit

Standard Magnetic Compass: CPT-130D, 1 unit

Echo Sounder: 1 unit

Marine Loudhailer: 1 unit

ECDIS: HM-5817, 1 unit

Magnetic Compass: CPT-165A, 1 unit

Radar: LR1704MK2, 1 unit

Inclinometer: 1 unit

VIII. Signaling Equipment

Daytime Signaling Lamp: 2 units

Whistle: 1 unit

Day Shapes: 3 units

Bell: 1 unit

Anchor Light: 1 unit

Not Under Command (NUC) Lights: 2 units

Masthead Light: 1 unit

Side Lights: 2 units

Stern Light: 1 unit

IX. Radio Equipment (Operating Area A1+A2)

VHF Radiotelephone: FT-805, 1 unit

MF/HF Radiotelephone: SRG-1150DN, 1 unit

Two-way VHF Radiotelephone for Life Rafts: FT-2800, 1 unit

Search and Rescue Radar Transponder (SART): FT-501, 1 unit

EPIRB: SEP-406, 1 unit

NAVTEX Receiver: FT-7600, 1 unit

X. Electrical Equipment

Distribution System: AC 3-phase 3-wire insulated system

Generator Sets:

1# Generator Set: TFX-225M4-H, 40.00 kW, 1500 r/min, AC72.20A, 400.00 V, Prime Mover 4135Caf, 58.80 kW

2# Generator Set: TFX-225M4-H, 40.00 kW, 1500 r/min, AC72.20A, 400.00 V, Prime Mover 4135Caf, 58.80 kW

3# Generator Set: TZHW3-200S4-TH, 30.00 kW, 1500 r/min, AC54.10A, 400.00 V, Prime Mover 495AZD, 37.70 kW

Air Bottles:

Capacity: 0.08 m³

Quantity: 2 units (Main Engine Start), 1 unit (General Service)

Design Pressure: 3.30 MPa

Working Pressure: 3.00 MPa

Manufacturer: Shandong Gaomi Pressure Vessel Factory

XI. Core Parameters of Lifting Equipment (Slewing Crane 61#)

Equipment Name: Slewing Crane 61#

Max Safe Working Load (SWL): 980.000 kN (approx. 100 tons)

Test Load: 1489.600 kN (approx. 152 tons, 1.52 times SWL)

Jib Angle to Horizontal During Test: 75.000°

Inspection Basis: 1999 "Technical Rules for Statutory Inspection of Lifting Appliances"

Renewal Inspection Date: October 14, 2024

Inspection Location: Ningbo Port

Certificate Expiry Date: January 5, 2029

Next Annual Inspection Date: January 5, 2026

Issue Date: March 7, 2025

Inspection Number: 2024110

XII. Summary of Lifting Equipment Test Records

Static Tests:

100%-110% Load Free Fall: No descent phenomenon, compliant

Main Load-Bearing Members: No permanent deformation, compliant

Member Welds: No abnormalities, no cracks, compliant

Dynamic Tests:

75% Load Operation Test: Operation normal, compliant

100% Load Operation Test: Operation normal, compliant

110% Load Operation Test: Operation normal, compliant

Control Mechanism Check: Light, reliable, normal, good condition

Fasteners of Mechanisms: No loosening, good condition

Electrical Safety Check: Brake reliable, good condition

Transmission Mechanism Operation: No noise, no abnormalities, good condition

Main Load-Bearing Members: No permanent deformation, compliant

Member Welds: No abnormalities, no cracks, compliant

XIII. Auxiliary Hook Performance Parameters (if applicable)

Lifting Height: 56 m

Lifting Speed: 10 m/min

Jib Luffing Angle: 75°

Slewing Speed: 0.8 r/min

Lifting Capacity: 5 tons

Total Power: 250 kW

XIV. Load Line Information

Applicable Regulations: 2004 "Technical Rules for Statutory Inspection of Domestic Sea-Going Vessels"

Tropical Load Line (R): 50 mm above Summer Load Line

Summer Load Line (X): Upper edge of the line passes through the center of the circle

Tropical Fresh Water (RQ): Above Summer Load Line (X) [value] mm

Summer Timber (MX): Above Summer Load Line (X) [value] mm

Applications

• Port Construction & Maintenance: Ideal for installing port facilities, handling heavy machinery, and general cargo operations in coastal harbors.

• Bridge & Waterway Engineering: Suitable for lifting bridge components, steel piles, and construction materials for waterway projects.

• Salvage Operations: Capable of lifting sunken objects or disabled vessels in coastal areas due to its high stability and lifting capacity.

• Offshore Support: Assisting in near-shore wind farm installation or maintenance of offshore platforms (within coastal limits).

Key Features

• High Lifting Capacity: Equipped with a Slewing Crane (No. 61#) featuring a Safe Working Load (SWL) of 980 kN (approx. 100 tons), tested up to 1489.6 kN.

• Fully Revolving: The crane offers 360° operation, providing maximum flexibility for loading and unloading from any angle.

• Robust Hull Design: Steel construction with a length of 39.96m and beam of 15.00m, ensuring high stability during heavy lifting operations.

• Reliable Power: Powered by dual 184kW Diesel Engines (Weichai R6160A-4), ensuring dependable propulsion and maneuverability.

• Comprehensive Certification: Holds valid ZC Certificates (China Classification Society) for domestic coastal navigation, with safety and tonnage certificates valid until 2029.

• Advanced Safety Systems: Fitted with AIS, GPS, Radar, and a full suite of firefighting and lifesaving appliances compliant with 2004 statutory rules.

• Auxiliary Lifting: Includes a secondary hook (5-ton capacity) for lighter, faster handling tasks.

Frequently Asked Questions (FAQ)

1. What is the maximum lifting capacity of this floating crane?

The main slewing crane (Unit 61#) has a Safe Working Load (SWL) of 980 kN, which is approximately 100 metric tons. The vessel is often referred to as an "80-ton" crane based on specific operational configurations, but the certification supports up to ~100 tons.

2. What are the navigation limits for this vessel?

The vessel is certified for Coastal Navigation within domestic waters. It is not designed for open ocean (international) voyages.

3. Is the crane revolving?

Yes, it is a fully revolving (slewing) crane, allowing for 360-degree rotation to handle cargo from any side of the vessel.

4. What is the condition of the certificates?

The vessel holds valid ZC certificates. The "Safety and Environmental Protection Certificate" is valid until January 5, 2029, and the crane equipment certificate is also valid until 2029.

5. What kind of power source does the crane use?

The crane operates using the vessel's electrical system, powered by three generator sets (two 40kW and one 30kW) and the main propulsion engines.
