GA 3500T Flating Crane
floating crane Vessel - Key Parameters
Basic Information
Type: crane vessel (Non-motorized Lifting Engineering Vessel)Keel Laying: 22 Sep 2008Completion: 22 Feb 2011Gross Tonnage: 27239tNet Tonnage: 8171tNavigation Area: OffshoreHull Material: SteelStructure: Crossbar hybrid skeleton / All-welded longitudinal steel structure Main Dimensions
LOA: 148.40mBreadth MLD: 44.60mDepth MLD: 12.00mLight Draft: 5.500mFull Load Draft: 8.468mDesign Draft: 8.50mLight Displacement: 10485.500tFull Load Displacement: 52976.608t
Main Crane
Type: SWL1800 Full-swing Offshore CraneWorking Elevation Angle: 30°~75°Max Lifting Capacity (Fixed direction): 1600t×2 (main/aux hook)Max Lifting Capacity (Full swing): 900t×2 (main/aux hook)Designer: Wuhan Gangdi Mechanical Engineering Design Co.
Power System
Main Generators
3 sets, 1FC6566-8LA42, 900kw/750r/min, 400VPrime Mover: 6DL-26, 1000kw/750r/min
Auxiliary Generators
2 sets, 1FC2, 400kw/1500r/min, 400VPrime Mover: TD400, 500kw/1500r/min
Emergency Generator
1 set, IFC2282-4SB43, 100kw/1500r/min, 400VPrime Mover: TBD226B-6CD5, 110kw/1500r/min
Crane Power
Total Installed Capacity: 3180KWMain Hoist Winch: 4×250KW, AC380VAux Hoist Winch: 2×315KW, AC380V
Crew & Life-saving
Total Crew: 22Max Berthing: 372 personsLifeboat: 2×Fully enclosed, 65 persons eachSurvival Suit: 82 pcsLife Jacket: 123 pcs
Anchor & Mooring
Anchor: 9×Delta anchor, 14270kg each; 2×10t AC-14 anchorWindlass: 9×99kw eachAnchor Chain: 9×120mm(dia)×400m, Grade AM2Positioning Winch: 8×1100KN hydraulic type
Fire-fighting
Fire Pump: 3×XBD4.9/15-80, 54m³/h, 0.49MpaCO2 Fire System: Fixed type, protects engine room (1056m³)Portable Extinguishers: 92 sets (0.068m³,24.5Mpa)
Navigational & Radio Equipment
Navigation
AIS: AIS-1; Radar: MR-1000th; Echo Sounder: DS606-1; GPS: GPSMAP152C
Radio
VHF: SE2000 (25W); MF/HF: SRG-315DN (150W); Lifeboat VHF: SE1500 (1W)
3500T Offshore Crane Vessel
Advantages :
Ultra-heavy lifting capacity
Max lifting capacity up to 3000 tonnes, suitable for super‑large offshore modules, platforms and wind turbine components.
Excellent stability & strength
Robust steel hull, large‑scale ballast tanks and compliant stability design ensure safe operation under complex sea conditions.

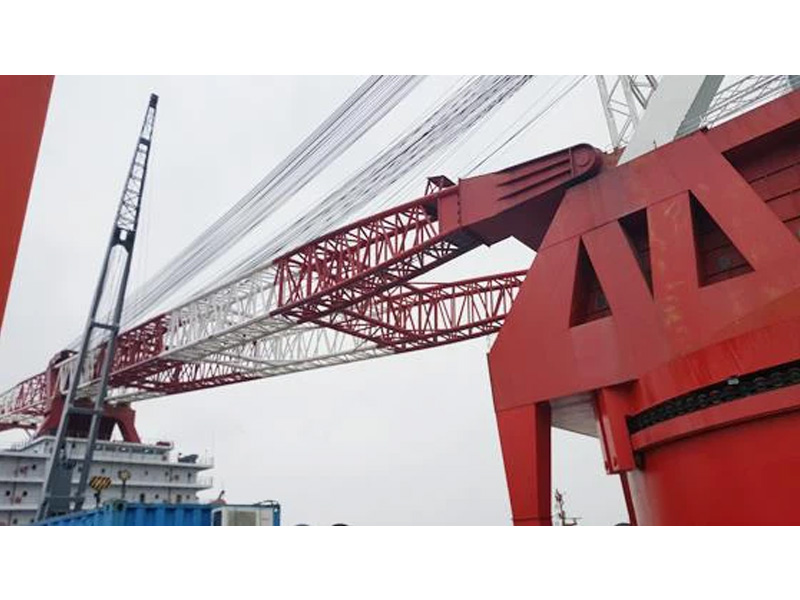

Full‑slewing flexible operation
Equipped with full‑slewing crane to realize 360° all‑directional lifting and high operating efficiency.
Large deck & accommodation space
Ample deck area for equipment storage; berths for up to 372 persons for long‑term offshore missions.
Reliable power system
Multiple high‑power generator sets guarantee uninterrupted crane and vessel operation.
Complete safety systems
Full set of fire‑fighting, lifesaving, communication and navigation equipment meets offshore working standards.
Applications :
Offshore Wind turbine installation & maintenance

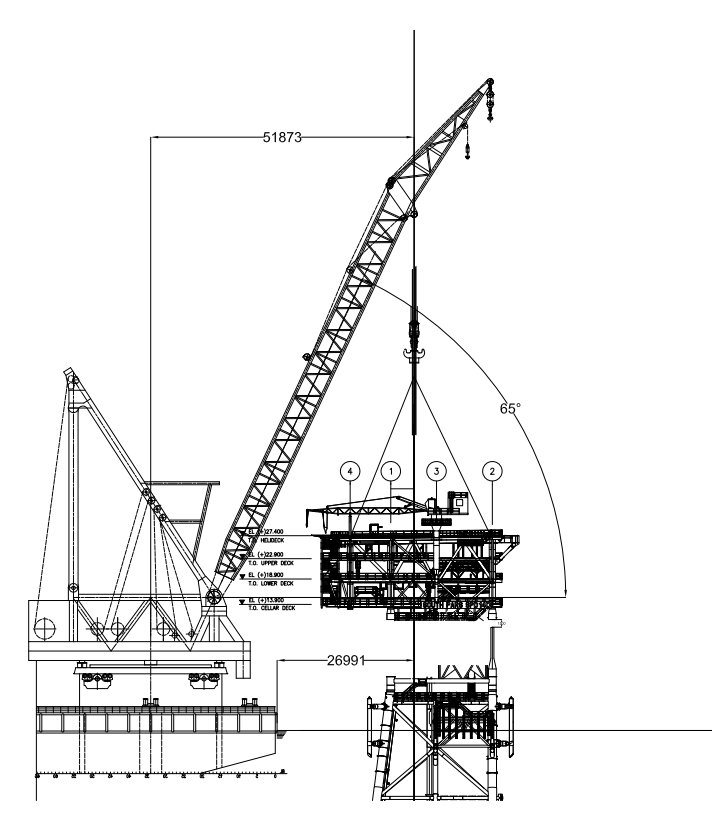

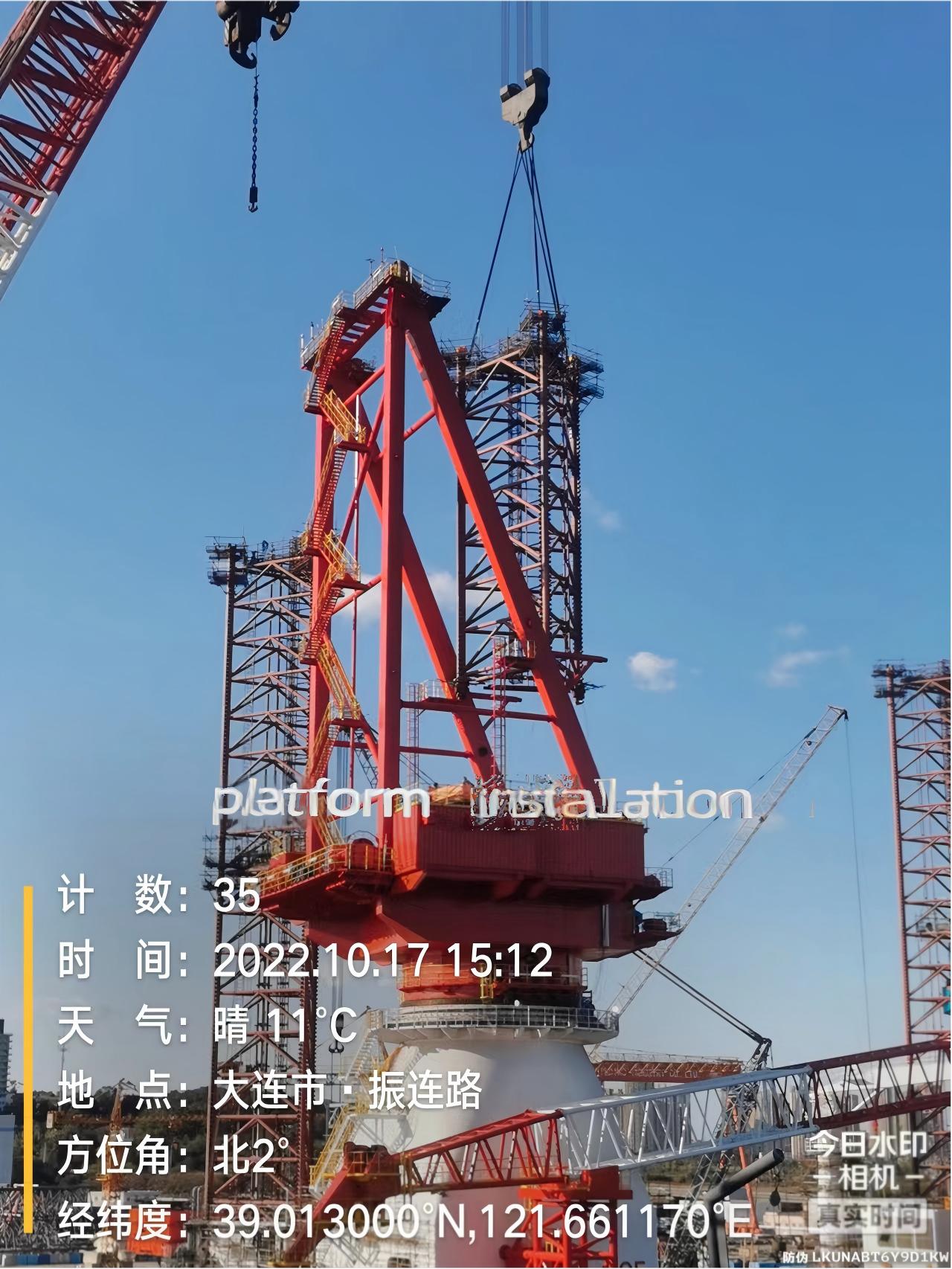

Offshore platform & module lifting
Large bridge & port engineering construction
Shipbuilding & heavy vessel repair
Submarine pipeline & cable laying
Marine salvage & wreck removal
Coastal & offshore heavy engineering projects
Project List :
Booster Station LiftingLocation: Leting Wind Farm, Hebei ProvinceDate: July 18, 2021Maximum single lift: 2999 tons Heavy Module LiftingLocation: COSCO Dalian Port, Zone 6Date: August 28, 2019Maximum single lift: 2150 tons
Module LiftingLocation: COSCO Dalian Port, Zone 6Date: July 24, 2019Maximum single lift: 1300 tons
Heavy Module LiftingLocation: COSCO Dalian Port, Zone 6Date: August 27, 2019Maximum single lift: 2350 tons
FAQ
Q:What is the maximum lifting capacity of this 3500T offshore crane vessel?
A :This 3500T offshore crane vessel features a maximum safe lifting capacity of 3500 tonnes, with a full‑slewing capacity of 1800 tonnes, ideal for heavy offshore lifting.
Q: What are the key advantages of this 3500T crane vessel for offshore projects?
A: This 3500T crane vessel offers ultra‑heavy lifting, full‑slewing flexibility, excellent stability, large accommodation, and reliable power, making it perfectly suited for offshore wind, platform installation, and heavy engineering operations.
