| Overall Length | 79.80m | Beam | 0.15m |
| Waterline Length | 78.76m | Navigation Area | Coastal |
| Length Between Perpendiculars | 77.56m | Frame Spacing | 0.60m |
| Moulded Breadth | 15.60m | Main Engine Power | 900kWx2 |
| Moulded Depth | 6.20m | Crew Number | 10 P |
| Design Draft | 5.20m | Ice Class | Class B |
FAQ
Q1: What is the full load draft of the 3200 m3 Split Hopper Barge?
A: For the 3200 m3 Split Hopper Barge, the standard full load draft is 5.2 meters.When the vessel is empty, the draft significantly reduces to 1.899 meters.
This low-draft design ensures excellent shallow water accessibility, which is critical for near-shore Dredging operations and coastal navigation.
Q2: Is the vessel self-propelled or non-propelled?
A: The 3200 m3 Split Hopper Barge is a self-propelled mud carrier designed for high maneuverability.It is equipped with twin main engines (Model: CW6200ZC-37 3).Each engine provides a rated power of 900 kW at 1000 r/min, totaling 1800 kW of propulsion power.The propulsion system utilizes two fixed-pitch cast steel propellers, each with a diameter of 2680.00 mm, ensuring stable performance even under heavy loads.
Q3: Is the hopper reinforced to carry stones and heavy materials?

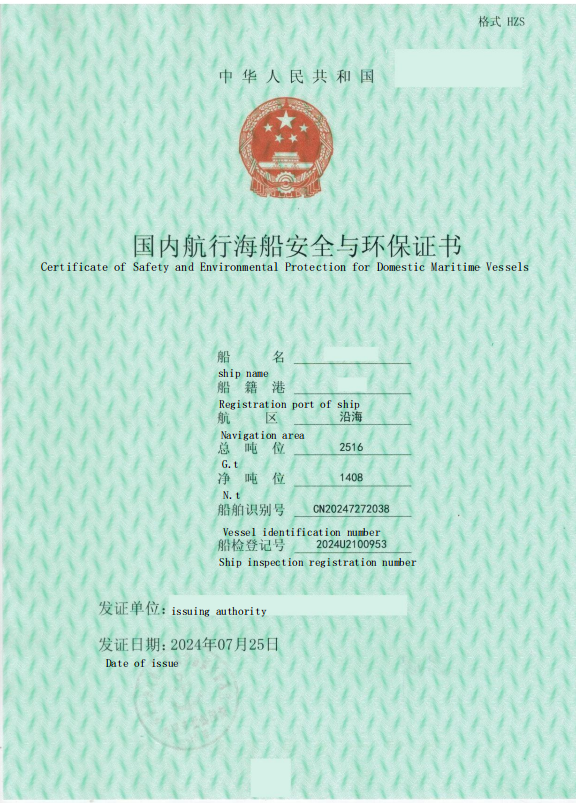

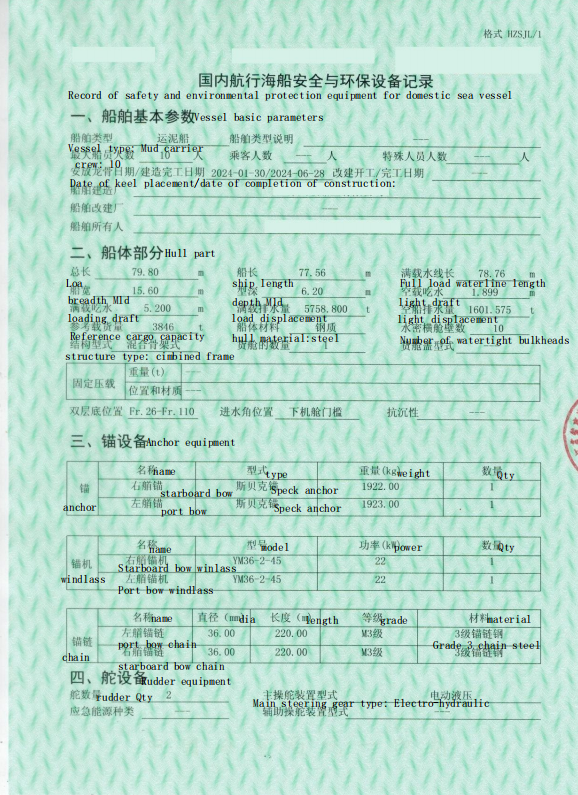

A: Yes, this 3200 m3 class hopper barge is engineered for heavy-duty dredging tasks.It is specifically certified to carry mud, sand, slurry, and silt.The ship's certificate notes a minimum mud slurry density of 1.42 t/m3, indicating a robust structural capacity.Constructed with steel material and a mixed framing system , the hopper is built to withstand the high impact and abrasion associated with loading large volumes of dredged material.
Brand: Yanyang Marine
Model: 3200 m3 Split Hopper Barge
Key Specs: Draft (5.2m), Power (1800kW), Capacity (3846t Reference Cargo).
Maintain. Train. Deliver.
Yanyang Marine offers end-to-end solutions for your dredging assets:
