Home > Vessels For Sale > Tugboat | ASD | AHTS | PSV | OSV > 3000HP Tugboat
3000HP Tugboat | BV

    3000HP Tugboat | BV

    This 3000HP Towing Tug, classified by BV, is a China-manufactured tugboat with overall length of 31.00M and moulded breadth of 10.00M. Equipped with two ZIBO LB6250ZLCZ-9 main engines (2x1103KW) and fixed pitch propellers, it features robust power performance and reliable deck machineries including a 20T towing winch (40T brake holding capacity) and 15.3kn anchor windlass. The tug has a total complement of 10 men with well-configured accommodation (2 single, 2 double, 1 four-men berths), and ample capacity for freshwater (70M³) and fuel oil (180M³). It is fitted with full sets of JRC/YOKOGAWA/...
    Category：3000HP Tugboat     Browse number：107     Release time：2026-03-22 15:42:22
  • Share：
    • Contact us Inquiry
  • E-mail：Info@yanyangmarine.com
    WhatsApp：15952900547

VIDEO.jpg3000HP Tugboat


 3000 HP  Towing Tug

Particulars & Equipments

Classification & Main Dimensions

  • Classification: BV

  • Length overall (Mld hull): approx. 31.00 M

  • Length p.p.: 28.30 M

  • Breadth moulded: 10.00 M

  • Depth moulded: 4.65 M

  • Draft moulded (design): 3.20 M

  • Draft (scantling): 4.2075 M

  • Height from B.L. to radar mast top: abt.18.92m

Main Machineries

  • Main Engines: ZIBO (CHINA) LB6250ZLCZ-9, 2x 1103KW 750rpm

  • Gear box: CGC39.41, ratio 2.469:1

  • Couplings: Supplied with gearbox

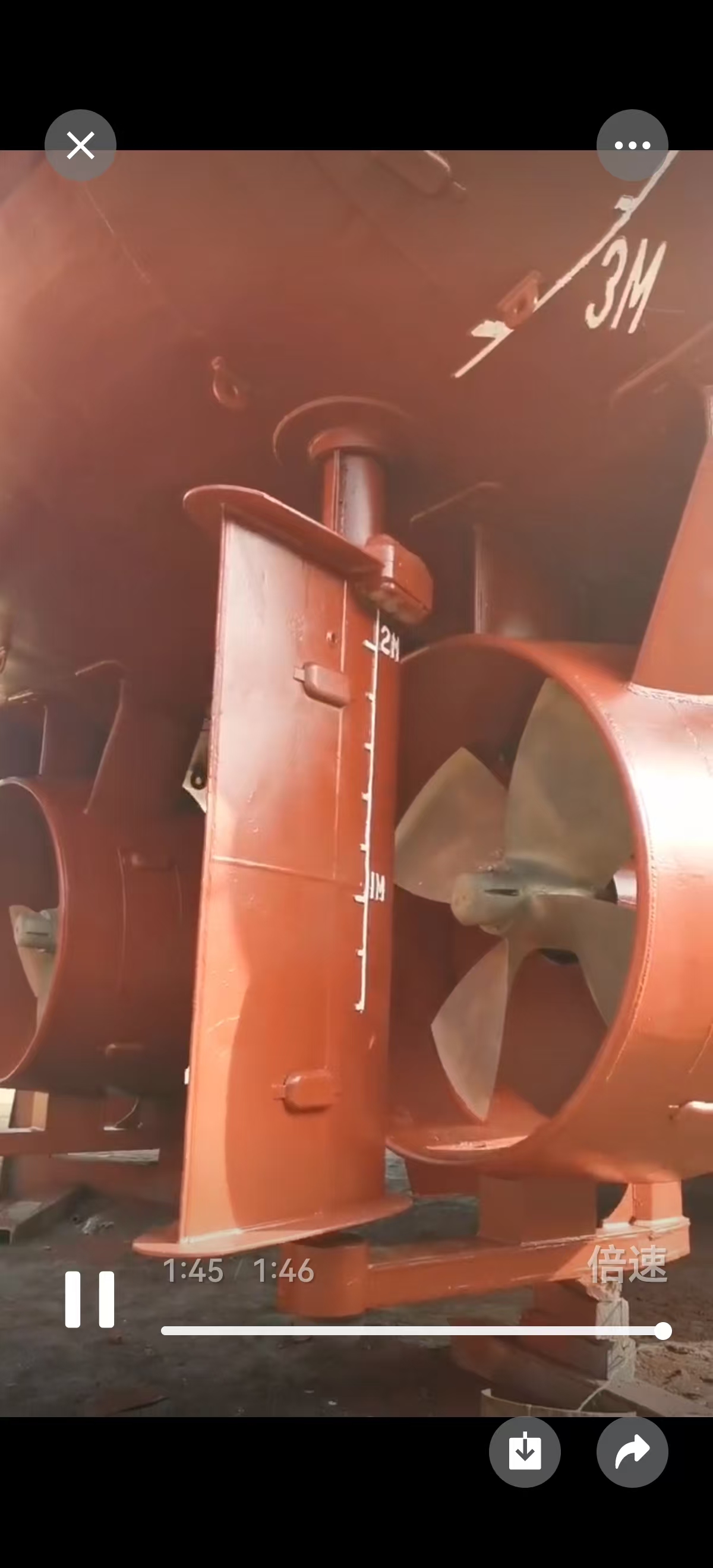

  • Propeller: 2 x Fixed pitch type

  • Main air compressor: 2X E.V.2-stage, 20m³/H, 3Mpa

  • Generator sets: 2X A.C.400V,90KW 1500r/min, 400V/50Hz, 3ph.

  • Steering gear: CFYD-1-30/28, 30KN

Capacity

  • Freshwater (total): approx 70 M³

  • Fuel Oil (total): approx 180M³

Discharge Rates (Pumps)

  • Bilge & general service Pump: 36M³/H,2950r/min, 30m Head, 1set

  • Fire & general service Pump: 36M³/H,2950r/min, 30m Head,1set

  • Air conditioner cooling Pump: 50M³/H,2950r/min,25m Head,1set

  • Main engine S.W. stand by Pump: 60 M³/H,2950r/min,21m Head,1set

  • M/E FW cooling stand by Pump: 60M³/H,2950r/min,21m Head,1set

  • Chain locker injection Pump: 3.6M³/H,0.08MPA,1set

  • M/E L.O. standby Pump: 40M³/H,960r/min,0.6Mpa,1set

  • G/B L.O. standby Pump:7.5M³/H,1450r/min,2.5mpa,1set

  • M.D.O transfer Pump:3.3M³/H,1450r/min,0.33mpa,1set

  • Diety oil Pump:3.3M³/H,1450r/min,0.33mpa,1set

  • Hand Pump:1.2M³/H,50/min,25m Head,4set

Accommodation

  • Single berth: 2 Rooms

  • Double berth: 2 Rooms

  • Four men berth:1 Room

  • Total Complement:10 men

Navigation & Communication Equipment

1 MF/HF SSB Radio telephone (JRC): JSB-196GM1 Inmarsat-c (JRC): JUE-852 VHF radio (JRC): JHS-770S1 RADAR (JRC): JMA-5212-625kw1 NAVTEX receiver (JRC): NCR-3331 GPS (JRC): JLR-75001 AIS (JRC): JHS-1821 ECHO SOUNDER (JRC): JFE-3801 Eledtromagnetic log (YOKOGAWA): EML5001 Reflection compass (JRC): MR-150A1 EPRIB (UK): E53 Two way VHF radio (MCMURDO): R22 SART (MCMURDO): S4

Deck Machineries

  • Towing winch: 20 T, drum cap. 750m X 40 dia., Brake holding cap. 40 T

  • Anchor windlass:15.3kn,6m/min

Life Saving Equipment

  • First aid box: approx 600mmx400mm x400mm

  • Life rafts:2sets, 15 persons each

  • Life buoys:8 sets

  • Life jackets:14 sets (YB)

  • Pyrotechnics:1set line throwing apparatus;12sets parachute distress rockets;2sets orange smoke signals

  • Life saving signal box:1set

  •                                                                 Parachute signal for ships:12sets (HGS 40-30000)

    Advantages: Brand new vessel, BV classed. Fully commissioned with all machinery operating normally, ready for immediate operation.
