Vessel Specs

Keel Laid / Completion Date: Nov 24, 2004 / Dec 12, 2005

Domestic Navigation (China)

1. Basic Vessel Particulars

Vessel Type: General Tugboat

Max Crew Capacity: 15 persons

2. Hull Dimensions & Structure

Length Overall (LOA): 41.20 m

Length Between Perpendiculars (LBP): 36.80 m

Length at Full Load Waterline: 38.10 m

Beam: 9.60 m

Moulded Depth: 4.30 m

Draft (Full Load): 3.200 m

Draft (Light Condition): 3.200 m

Displacement (Full Load): 770.160 tonnes

Hull Material: Steel

Structural System: Transverse Framing

Watertight Bulkheads: 5

Cargo Holds: 0

Subdivision Stability: Not applicable

Angle of Flooding Location: Crew cabin door sill

3. Anchoring Equipment

Anchors:

Starboard Bow Anchor: Hall type, 570.00 kg × 1

Port Bow Anchor: Hall type, 570.00 kg × 1

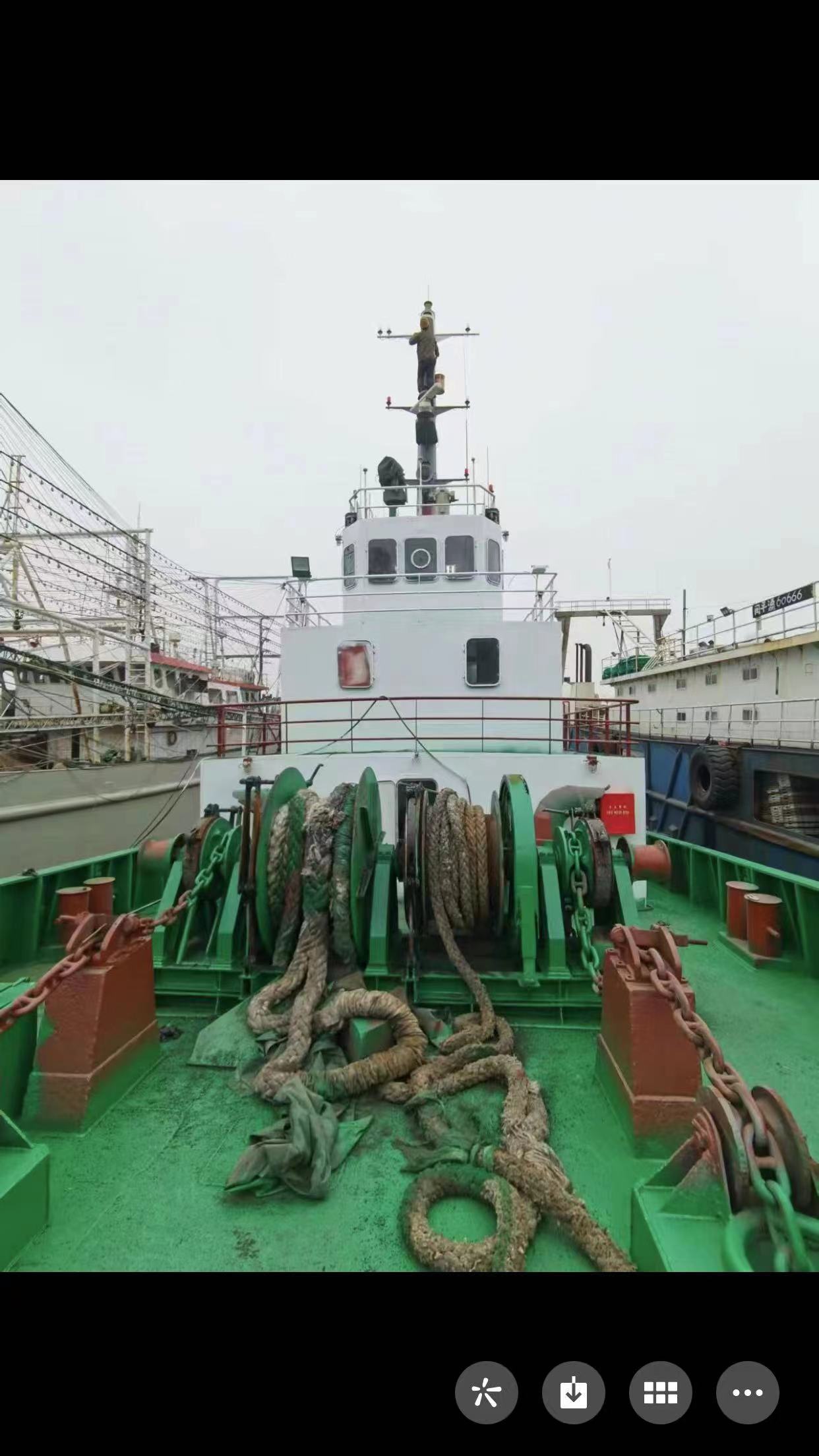

Windlass:

Bow Windlass: Horizontal electric, 8.5 kW × 1 unit

Anchor Chains:

Starboard Chain: Ø24.00 mm, 165.00 m long, AM1 grade, Grade I chain steel

Port Chain: Ø24.00 mm, 192.50 m long, AM1 grade, Grade I chain steel

4. Steering Gear & Rudder

Number of Rudders: 2 (Starboard + Port)

Rudder Type: Streamlined

Single Rudder Area: 2.40 m²

Rudder Stock Diameter: 220.00 mm

Rudder Stock Material: 30# Forged Steel

Main Steering Gear Model: DYD110-40S

Manufacturer: Hangzhou Huayuan Electromechanical Equipment Co., Ltd.

Steering Mode: Electro-hydraulic

5. Firefighting Equipment

Main Fire Pump: Model 65CWZ-8, capacity 36.00 m³/h, head 0.27 MPa, located in engine room × 1

Fire Hydrants: 3 units; Fire Nozzles: 3 units

Portable Fire Extinguishers:

Dry Powder: 5 units (deckhouse, steering gear room, crew quarters)

Foam: 8 units (deckhouse, crew quarters, engine room)

Wheeled Mechanical Foam extinguisher: 1 unit (engine room)

Foam Hose Reel: — set

Sand Buckets: 3 pcs; Fire Axes: 3 pcs

Firefighter Outfit: 1 set

Emergency Escape Breathing Device (EEBD): — units

Sand Box: — units

Fire Detection Alarm: Manual call points, total 7 units, installed on all decks and engine room

6. Life-Saving Appliances

Total Persons Covered by LSAs: 15

Lifejackets: 18 pcs (no child/infant lifejackets)

Immersion Suits: 15 pcs

Life Rafts: Self-righting throw-over type (CHF-Z-15), capacity 15 persons × 2 rafts

Lifebuoys: Model SJ5556 or equivalent × 4

Evacuation System / Line-throwing Appliance: Not fitted

7. Navigation Equipment

GPS: SPR-1400 × 1

Echo Sounder: DS-792 × 1

Magnetic Compass: CPL-165/CPT-130 × 2

Navigation Radar: JMA-2300 × 1

ECDIS (Electronic Chart): HM-5817 × 1

AIS (Automatic Identification System): FT-2200 × 1

8. Signal Equipment

International Signal Flags: 1 set

National Ensigns: 3 flags

Whistle: 1; Ball Signals: 3; Bell: 1

Red Flag: 1; All-round Lights: 7; Diamond Shape: 1; Flashing Light: 1

Hand Flags: 1 pair; Tow Light: 1; Masthead Lights: 3; Side Lights: 2; Stern Light: 1

9. Radio Communication Equipment (Operating Sea Area A1+A2)

MF/HF Radiotelephone: JSB-196GM × 1

VHF Radiotelephone: FT-805 × 1

Two-way VHF for Survival Craft: SR-102 × 2

NAVTEX Receiver: NCR-330 × 1

SART (Search and Rescue Transponder): S4 × 1

EPIRB (Emergency Position Indicating Radio Beacon): VEP8 × 1

10. Propulsion System

Main Engines (x2):

Models: 8300ZLCA-4 & 8300ZLCzA-4

Type: Diesel Engine

Serial Numbers: 20051766 / 20051811

Rated Power: 1103.00 kW each

Rated Speed: 600 rpm

Manufacture Dates: Mar 1, 2005 / Apr 1, 2005

Manufacturer: Zibo Diesel Engine Factory

Gearboxes:

Model: GWC42.45-01 × 2 units

Shafting:

Propeller Shaft: Ø192 mm × 2 shafts

Intermediate Shaft: Ø180 mm × 2 shafts

11. Prevention of Oil Pollution (Applicable Regulation: 2004 “Statutory Inspection Technical Rules for Domestic Navigation Seagoing Ships”)

Oily Water Separator: Model CCF-0.25, approved per MEPC.107(49)

Oil Content Monitor: Model GQS-206, approved per MEPC.107(49)

Sludge Tank: 1 tank, total volume 1.48 m³

Overboard Discharge Valve for Oily Bilge Water: Not sealed with lead

12. Prevention of Sewage Pollution (Applicable Regulation: 2020 “Statutory Inspection Technical Rules...”)

Sewage Treatment Method: SWMBR-20

Total Holding Tank Volume: 7.000 m³

20. Prevention of Garbage Pollution (Applicable Regulation: 2020 “Statutory Inspection Technical Rules...”)

Mobile Garbage Collection Containers: 4 units, total volume 0.50 m³

Advantages: Overhauled in 2025, the vessel is currently in excellent condition. It is currently under towing work, so it will be ready to start work immediately upon purchase.

FAQ

Q1: Can this vessel operate internationally, or is it restricted to Chinese waters?

Answer: Currently, this vessel holds a Domestic Navigation Certificate compliant with Chinese statutory regulations (2004/2020 Rules). While its core machinery (Zibo diesel engines) and navigation equipment (GPS, Radar, AIS, GMDSS A1+A2) meet general international standards, it is not currently classed for unrestricted global trading.

Low-horsepower tugs are better suited for coastal and port towing. If international navigation is intended, a Single Voyage Permit will be required.

Q 2: What is the actual bollard pull or Towing Capacity of this tug?

Answer: For a conventional harbor tug of this power and hull type, the estimated bollard pull typically ranges between 25 to 30 tonnes.

Q 3: What is the status of the environmental compliance equipment (Oil, Sewage, Garbage)?

Answer: The vessel is fully equipped to meet current Chinese domestic environmental regulations:

Oil Pollution: Fitted with an approved Oily Water Separator (CCF-0.25) and Oil Content Monitor (GQS-206) compliant with MEPC.107(49), plus a 1.48 m³ sludge tank.

Sewage: Equipped with a SWMBR-20 sewage treatment plant and a 7.0 m³ holding tank, compliant with 2020 rules.

Garbage: Includes 4 mobile garbage collection containers (0.50 m³ total).
