Overall length 76.80m, waterline length 75.92m, length between perpendiculars 74.52m, moulded breadth 15.60m, moulded depth 6.00m, designed draft 4.90m, beam camber 0.15m, frame spacing 0.60m
Navigation & Classification
Navigation area is domestic coastal waters, B-class ice zone reinforcement, complies with 2020 China Maritime Bureau Statutory Inspection Rules
Propulsion System

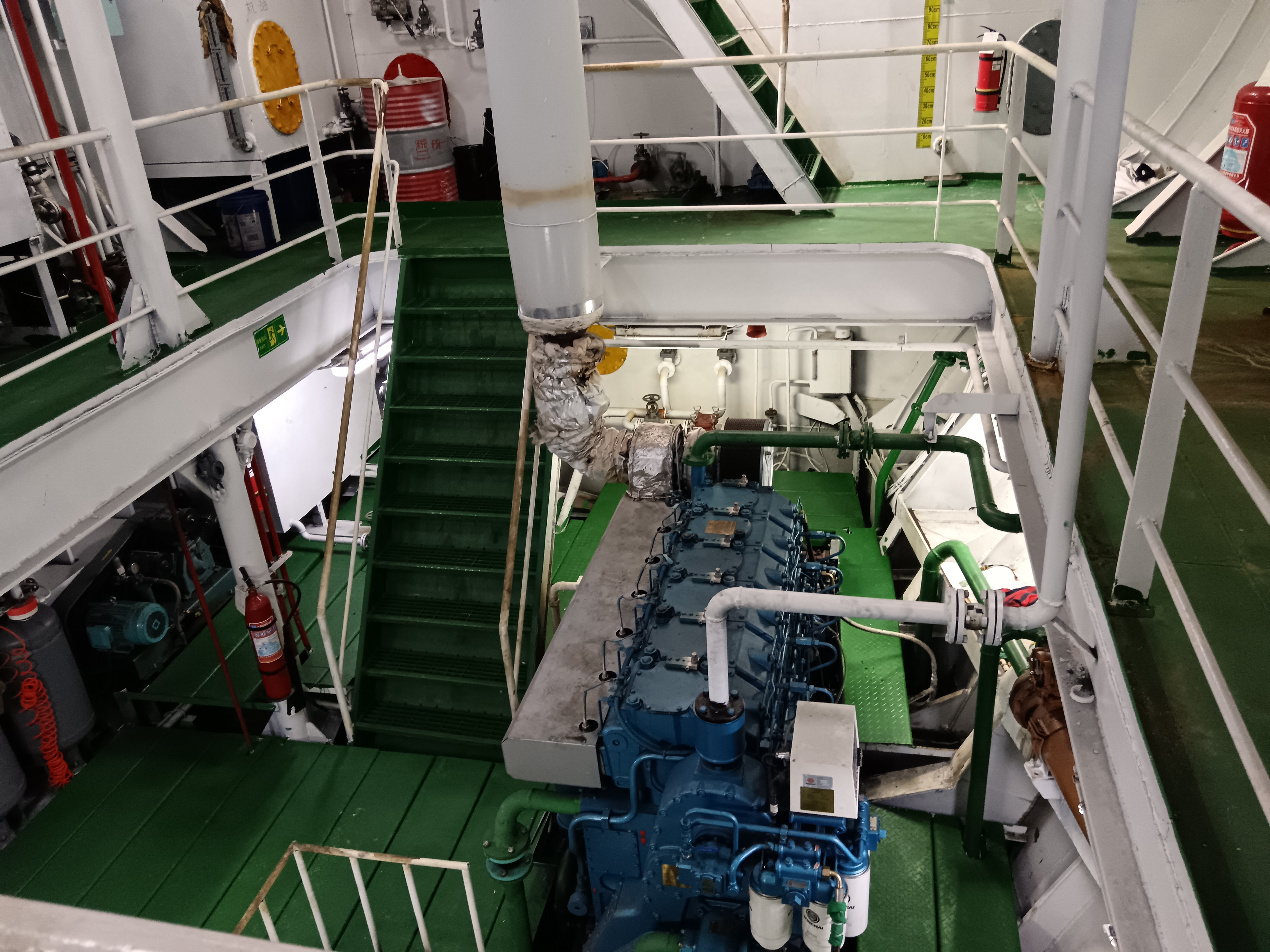

Main engine model CW6200ZC-370, two sets with rated power 370kW each, rated speed 1000r/min; marine gearbox model J1200A, speed ratio 4.45:1; dual propeller and dual rudder configuration, electro-hydraulic main steering gear, single rudder area 5.4㎡, steering gear nominal torque 2×30kN·m, steering time ≤28s
Performance
Cruising speed about 10 knots (under designed draft 4.9m, maximum continuous power, no hull fouling, Beaufort scale below 3); summer freeboard 1116mm, meets the requirements of Type B vessels; gross tonnage about 2296, net tonnage about 1285
Cargo & Tank Capacity
Designed for mud transport with density 1.42t/m³; fuel tank capacity 60.89m³ (P/S), freshwater tank 94.40m³ (P/S), cooling water tank 13.29m³ (P/S), domestic wastewater storage tank 3.00m³, oil-water separator tank 1.53m³ (P/S), oil tank 0.31m³ (P/S), lubricant storage tank 1.51m³; four sets of middle ballast tanks with total large capacity for stable navigation
Crew Configuration
Total 10 crew members, including captain, chief officer, third officer, 3 watchkeeping seamen, chief engineer, third engineer, 2 duty engine operators; 2 deck department staff part-time as electrical officers, equipped with BRC semi-automated engine room
Main Equipment
Main diesel generator set model CCFJ75J (2 sets), mooring generator set model CCFJ50J (1 set); air compressor unit model 2ZF-0.34/30-B (2 sets); oil-water separator model ZYFM-0.25 (2 sets), domestic wastewater treatment equipment model WCBM-10; 68L carbon dioxide fire extinguishing equipment, 14 fire hydrants, complete navigation equipment including marine radar, GPS, electronic chart system, AIS; open-body
Hydraulic Cylinder model 750/360-2600 (2 sets) with matching hydraulic power unit
Hull Structure
Single deck, steel welded structure, longitudinal framing for midship deck, bottom and side shell, transverse framing for other areas; the hull is divided into left and right half-hulls connected by deck hinges and hydraulic cylinders, with a three-deck cabin at the stern that remains level when the hull is open
Safety & Life-saving Equipment
14 life jackets with lights, 10 life-saving suits, 4 self-illuminating lifebuoys, 2 lifebuoys with floating ropes, 7 emergency escape breathing apparatus, 2 10-person self-righting life rafts, 12 rocket parachute signals; complete fire-fighting equipment including portable foam fire extinguishers, 45L hand-push foam fire extinguishers, dry powder fire extinguishers and firefighter equipment
Main Advantages
Stable Sailing: Reasonable hull structure, large ballast capacity, adapts to coastal waters, strong wind and wave resistance
Reliable Power: Dual main engine configuration, sufficient power, steady cruising speed, low failure rate
Standard Compliance: Meets national maritime inspection rules, ice zone reinforced, wide operating range
Complete Equipment: Full set of power, fire-fighting, navigation and lifesaving equipment, safe and reliable
Efficient Transport: Specialized mud transport design, suitable tank layout, smooth operation
Intelligent Management: Semi-automated engine room, reduced labor intensity, convenient operation and maintenance
Main Applications
Coastal Mud Transport: Carry dredged mud and sediment for port and waterway projects
Port Engineering Support: Assist port construction, channel Dredging and silt disposal
Waterway Maintenance: Cooperate with daily channel cleaning, prevent siltation
Offshore Engineering Auxiliary: Support coastal infrastructure construction and water conservancy projects
FAQs
Q1: What is the core unloading advantage of this 2600m³ self-propelled open-hull mud barge?
A1: The barge adopts an integral split-hull design, with the mud tank bottom and bulkhead rotating around deck hinges and separating to both sides under the action of hydraulic cylinders. The cargo in the tank is unloaded by gravity from the bottom, which makes heavy clay and stone easy to discharge. Compared with other mud door unloading methods, it has faster unloading speed and is especially suitable for shallow water unloading operations. It can also be unloaded by mechanical equipment such as grabs.
Q2: What are the main compliance standards and inspection requirements of this mud barge?

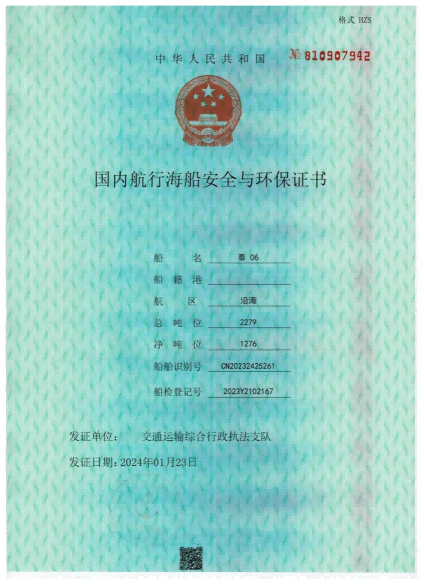

A2: The barge fully complies with the 2020 Technical Rules for Statutory Inspection of Domestic Navigation Sea Vessels of the People's Republic of China and its 2022 amendment notices, as well as the 2022 Construction Standards and Material & Welding Specifications of China Classification Society. It has obtained the Certificate of Safety and Environmental Protection for Domestic Ocean-going Vessels, valid until January 22, 2029, and the next annual inspection shall be carried out within three months before and after January 22, 2025. All main equipment is equipped with ship inspection certificates and meets relevant emission and environmental protection requirements.
Q3: What supporting power and electrical equipment is the barge equipped with to ensure continuous operation?
A3: The barge is equipped with 2 sets of main diesel generator sets (model CCFJ75J) and 1 set of mooring generator sets (model CCFJ50J) from Weichai Power, matching Lanzhou Electric Motor Factory marine brushless AC generators; 1 set of shaft-driven generator (30kW, 400V/50Hz) for auxiliary power supply; 2 sets of air compressor units and multiple air bottles for main engine starting,
Miscellaneous use and control; complete backup pump systems for lubricating oil, cooling water, fuel and ballast to ensure the continuous and stable operation of the main engine and hull systems in coastal dredging operations.
