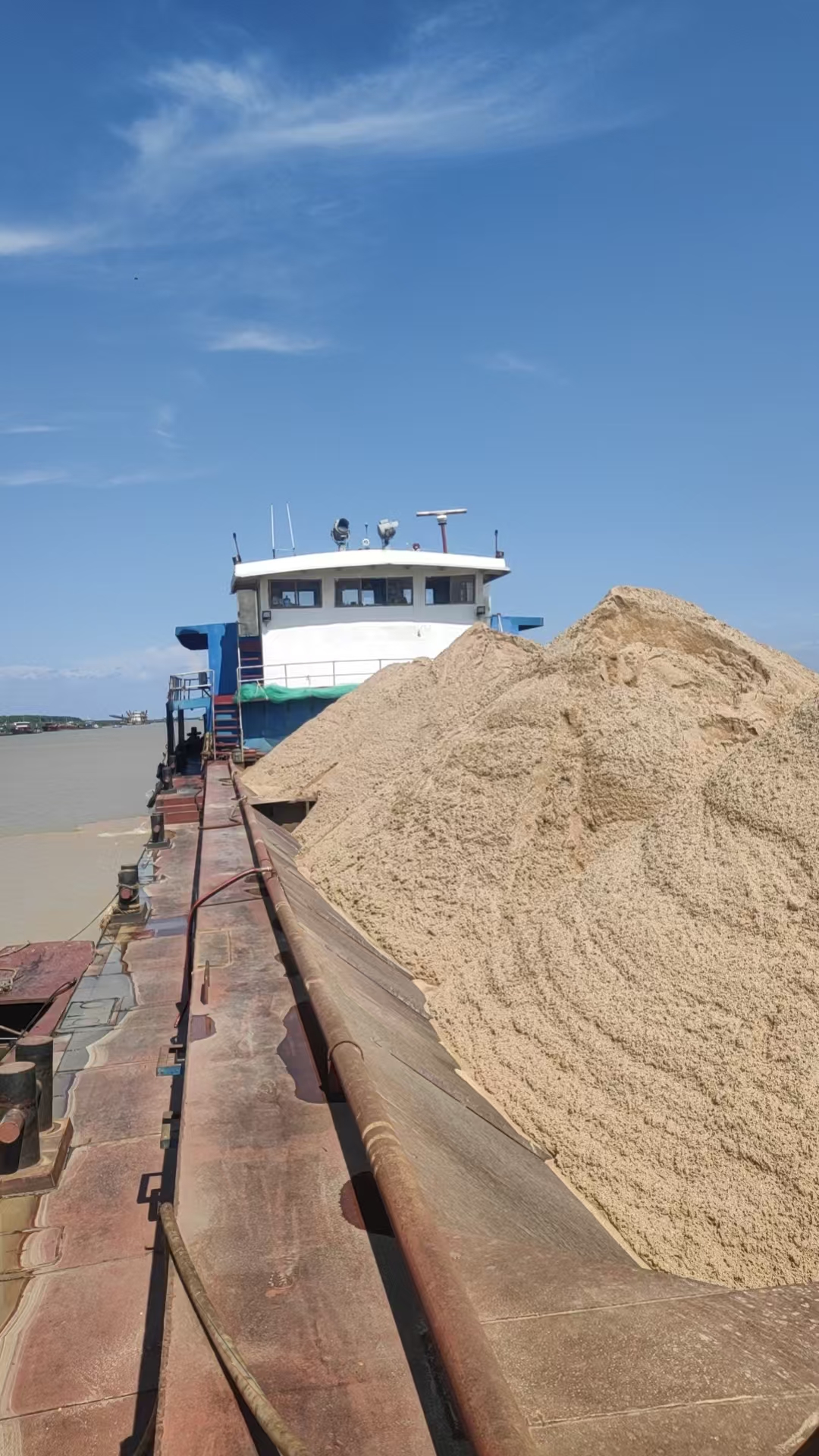

Vessel Type: Self-unloading sand carrier
Built: 2015-03-20 / Completed: 2015-07-29 / Refit completed: 2022-08-15
Overall Length (LOA): 82.80 m
Length Between Perpendiculars (LBP): 79.70 m
Breadth Molded: 14.60 m
Max Breadth: 14.63 m
Depth Molded: 3.80 m
Max Height: 14.07 m
Light Draft: 0.847 m
Full Load Draft: 3.100 m
Light Displacement: 728.621 t
Full Load Displacement: 3160.885 t
Deadweight: 2389.00 t
Hull Material: Steel
Structural Type: Mixed Skeleton
Number of Watertight Bulkheads: 10
Number of Cargo Holds: 1
Main Engines (2 sets):
Model: Z6170ZLC-20 (Diesel)
Rated Power: 430 kW each (Total 860 kW)
Rated Speed: 1350 r/min
Built: 2015-05-15
Gearbox (2 sets): Model JD400A (Port & Starboard)
Propeller Shaft (2 sets): Diameter 175 mm
Rudders (2 sets): Flat plate rudder, Area 5.76 m² each, Rudder stock diameter 220 mm (25# steel)
Main Steering Gear: Model DYA-75/20S, Torque 75.00 kN·m
Anchors (3 sets): Hall anchor (2×1590 kg, 1×480 kg)
Windlasses (3 sets): CM28 (11 kW), YM36 (18.5 kW), WPA250 (11 kW)
Anchor Chains: 36 mm (100 m), 28 mm (175 m), 19 mm (150 m)
AIS: Model XL-2200 (1 set)
Echo Sounder: Model DS792 (1 set)
Radar: Model LR1206 (1 set)
Searchlight: Model TG9 (1 set)
Floodlight: Model TX1 (2 sets)
VHF Radiotelephone (2 sets): Model CY-VHF-B
Public Address System: Model XA-150W (1 set)
Life Jackets: 9 pieces (for max crew 8 persons)
Lifebuoys: 10 sets (Model ZX-5556)
Fire Pumps (2 sets): XBD3.2/44-150L (158 m³/h), XBD2.4/39-150L (140 m³/h)
Fire Hydrants: 6 units
Fire Nozzles: 6 units
CO₂ Extinguishers: 2 units
Dry Powder Extinguishers: 18 units
Portable Foam Gun: 1 set
Fireman’s Equipment: 4 axes, 6 buckets, 4 sand boxes
Oil Water Separator: Model JYYSF-0.5, Capacity 0.50 m³/h
Oil Alarm Device: Model GQS-206 (Mounted on OWS)
Sewage Storage Tank: 2.000 m³ (Model JYWSCCG-2.0)
Garbage Containers: 3 units (Total 0.56 m³)
Anti-fouling System: Not used
38m Telescopic Belt Conveyor (Unloading System)
AIS Identifier: 413833186
