Vessel Full Specifications -

1. Basic Vessel Information

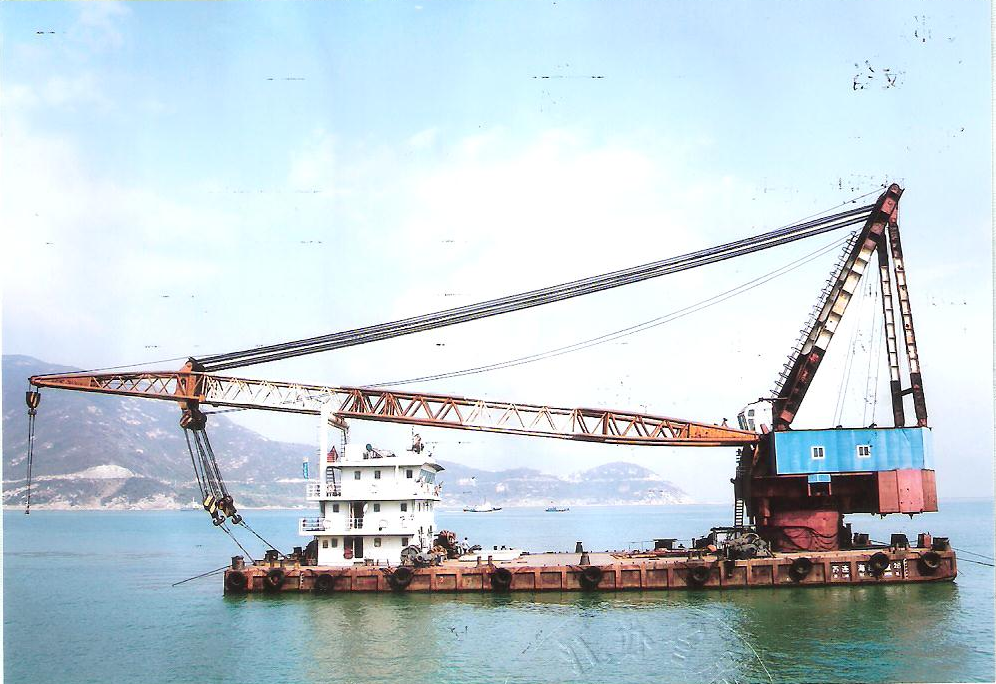

Type: crane vessel (Rotary Luffing Crane Vessel)

Keel Laying Date: 08 March 2006

Construction Completion Date: 27 January 2007

2. Hull Particulars

Overall Length (LOA): 50.90 m

Length Between Perpendiculars (LBP): 49.00 m

Loaded Waterline Length: 50.40 m

Breadth (Moulded): 21.00 m

Depth (Moulded): 4.00 mLight

Draft: 1.659 m

Loaded Draft: 2.000 m

Light Displacement: 1600.00 t

Loaded Displacement: 1964.00 t

Navigation Area: Coastal (A1+2 Operating Sea Area)

Hull Material: Steel

Deck Material: Steel

Number of Watertight Bulkheads: 7

Structural Type: Longitudinal Framing

Special Loading Condition: 200t Rotary Luffing Crane on Deck

Inlet Water Angle: Crew Quarters Window Sill

Buoyancy Requirement: No Requirement

3. Crane & Lifting Equipment (Key Focus)

3.1 Crane General & Certification

Crane Type: Rotary Luffing Crane

Maximum Safe Working Load (MSWL): 1960 kN

Certified Safe Working Load at Test Condition: 1862 kN

Test Load: 2440 kN

Test Condition: Boom Angle 75°, Working Radius 18.00 m

Crane Location: No.23 Hold Position

3.2 Main Hoist Performance (Main Hook)

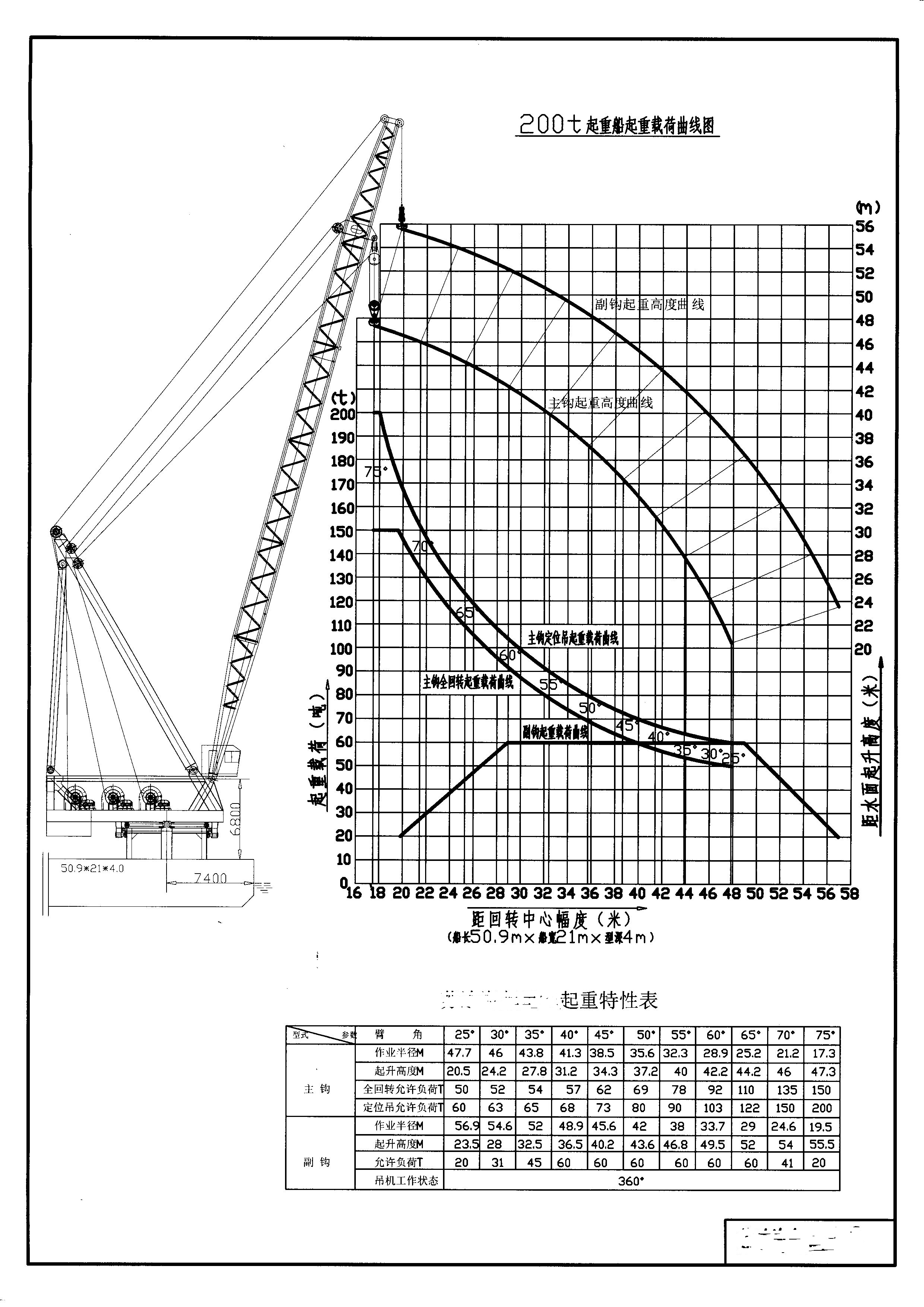

Working Radius vs. Safe Working Load & Lifting Height:

At boom angle 25°: Working radius 50m, SWL 60t, lifting height 20.5m

At boom angle 30°: Working radius 46m, SWL 69t, lifting height 24.2m

At boom angle 35°: Working radius 41.3m, SWL 72t, lifting height 27.8m

At boom angle 40°: Working radius 37.5m, SWL 80t, lifting height 31.2m

At boom angle 45°: Working radius 34.3m, SWL 80t, lifting height 34.3m

At boom angle 50°: Working radius 30.6m, SWL 90t, lifting height 37.2m

At boom angle 55°: Working radius 28.9m, SWL 103t, lifting height 42.2m

At boom angle 60°: Working radius 25.2m, SWL 110t, lifting height 44.2m

At boom angle 65°: Working radius 21.2m, SWL 135t, lifting height 46.8m

At boom angle 70°: Working radius 17.3m, SWL 150t, lifting height 47.3m

At boom angle 75°: Working radius 18.00m, SWL 186.2t (1862kN), lifting height 47.7m

Full-circle Rotation Allowable Load: 50t at 28m radius, 54t at 24m radius, 58t at 20m radius, 62t at 18m radius, 65t at 16m radius, 68t at 14m radius, 69t at 12m radius, 72t at 10m radius

Fixed-position Allowable Load: 100t at 30m radius, 120t at 26m radius, 133t at 22m radius, 146t at 20m radius, 150t at 18m radius, 200t at 18m radius (test condition)

3.3 Auxiliary Hoist Performance (Auxiliary Hook)

Working Radius vs. Safe Working Load & Lifting Height:

At boom angle 25°: Working radius 54.6m, SWL 20t, lifting height 23.5m

At boom angle 30°: Working radius 50m, SWL 31t, lifting height 28m

At boom angle 35°: Working radius 45m, SWL 42t, lifting height 32.5m

At boom angle 40°: Working radius 40.2m, SWL 45t, lifting height 36.5m

At boom angle 45°: Working radius 36.5m, SWL 60t, lifting height 40.2m

At boom angle 50°: Working radius 32.8m, SWL 60t, lifting height 43.6m

At boom angle 55°: Working radius 29.5m, SWL 60t, lifting height 46.8m

At boom angle 60°: Working radius 25.4m, SWL 54t, lifting height 50m

At boom angle 65°: Working radius 21.5m, SWL 41t, lifting height 54m

At boom angle 70°: Working radius 19.5m, SWL 20t, lifting height 55.5m

Crane Working Range: Full 360° rotation

4. Anchor & Steering Equipment

4.1 Anchor System

Anchor Chain Number: 582Number of Anchors: 6

Number of Anchor Winches: 6

Anchor Type & Weight: 6 sets of High-Power Fluke Anchors, 1500kg each

Anchor Winch Models & Power: Multiple models including HQA20A (30kW), 10020A (30kW), JDM20A (30kW), manufactured by Dongtai Winch FactoryAnchor Chain

Specification: 36.50mm diameter, 210.00m length per chain, AM2 grade, steel wire rope material

4.2 Steering System

Rudder Quantity: Not specified

Main Steering Gear Type: Not specified

Emergency Steering Gear Type: Not specified

5. Fire Fighting & Life Saving Equipment

5.1 Fire Fighting System

Main Fire Pump: Model 50CWZ-5, capacity 14.00 m³/h, pressure 0.35 MPa, 1 unit installed in engine room

Emergency Fire Pump: Model 100CWZ-19, capacity 100.00 m³/h, pressure 0.20 MPa, 1 unit installed in engine room

Fire Hydrants: 6 units, 6 fire hoses

CO₂ Fixed Fire Extinguishing System: For engine room, maximum protected volume 345.60 m³, required agent 215.80kg, manual operation

Fire Extinguishers: 8 light foam extinguishers, 8 dry powder extinguishers, 2 cart-type dry powder extinguishers, installed in engine room and living quarters

Fire Alarm: 4 smoke detectors installed in engine room and living quarters, fire control diagram displayed in wheelhouse and mess room

Other Fire Gear: 4 fireman's axes, 2 crowbars, 4 sand buckets, 1 set of fireman's outfit

5.2 Life Saving Equipment

Total Crew: 12 persons, no passengers

Life Raft: Throw-over type, capacity 15 persons, 1 unit

Life Buoy: 3 units with self-igniting light, 2 units with life line, 2 units with smoke signal

Line Throwing Apparatus: 4 units of ship-type line thrower PSQ230Life Jacket: YT (suit type), 18 units

6. Navigation, Signal & Communication Equipment

6.1 Navigation Equipment

Echo Sounder: Model F4430C, 1 unit

Searchlight: Model TG-1, 2 units

Binoculars: 7*50, 1 unit

GPS Receiver: Model RF-63GP, 1 unit

Inclinometer: Model QB55-200, 1 unit

Marine Clock: Model 104, 1 unit

AIS: Model AWAIS-1, 1 unit

6.2 Signal Equipment

Signal Flags: 40 sets

Masthead Lights: 2 units

All-round Lights: 5 units

Sidelights: 2 units

Stern Light: 1 unit

National Flag: 4 units

Red Flag: 1 unit

Whistle: 1 unit

Bell: 1 unit

Day Shapes: 3 units

6.3 Communication Equipment

VHF Radio: Model VHF-7100, output power 25W, built-in DSC, 1 unit

MF/HF Radio: Model IC-M802, output power 150W, built-in DSC, 1 unit

Survival Craft VHF: 3 units (Model STV-160 ×2, R1 ×1), output power 2WNAVTEX Receiver: Model NR-1, 1 unit

EPIRB: Model SEP-406, 1 unit

SART: 2 units of Model TBR-600A

7. Power & Propulsion System

7.1 Main Engine

Not specified (non-self-propelled crane vessel)

7.2 Generator Sets

1# Generator Set: Model HC1544D1, rated power 400.00kW, rated speed 1500r/min, AC 721.70A, 400V, driven by Model X6170ZD-3A prime mover (450.00kW, 1500r/min)

2# Generator Set: Model VCD1274J14, rated power 160.00kW, rated speed 1500r/min, AC 311.00A, 400V, driven by Model WD615.46 prime mover (200.00kW, 1500r/min)

Emergency Generator Set: Model TFXW-225M4-H, rated power 30.00kW, rated speed 1500r/min, AC 54.00A, 400V, driven by Model 4120S1D1 prime mover (48.00kW, 1500r/min)

8. Other Equipment

8.1 Lifeboat

Not equipped

8.2 Auxiliary Equipment

Anchor handling boat required for operation (for non-self-propelled vessel)

Applications

• Marine Engineering Projects: Core support for port construction, including quay wall installation, pier reinforcement, and wharf maintenance.

• Offshore Lifting Operations: Heavy-duty lifting tasks such as marine structure installation, underwater salvage, and shipbuilding/outfitting support.

• Coastal Infrastructure: Assisting in the construction of Offshore Wind farms, oil drilling platform positioning, and waterway clearance.

• Harbor & Logistics Support: Facilitating the loading, unloading, and relocation of large-scale maritime equipment and components within port limits.

•

Advantages

• Exceptional Lifting Capacity: Features a fixed 200-ton maximum safe working load (SWL) at an 18-meter radius, with a rotating 150-ton SWL capability. This high payload ensures efficiency in handling massive maritime components.

• Full 360° Rotation & Precision: Equipped with a full-circle rotating crane system, enabling stable and flexible operation across all azimuths without positional limitation, ideal for complex construction layouts.

• Robust Hull Design: Constructed from high-quality steel with a longitudinal framing structure, the vessel offers superior stability even under heavy load conditions, supporting a displacement capacity of up to 1964 tons.

• Comprehensive Safety & Navigation Suite: Outfitted with complete fire-fighting systems, life-saving appliances, and advanced communication/navigation equipment (including AIS, GPS, and VHF/MF/HF radios), ensuring full compliance with international maritime safety standards.

• Reliable Power Supply: Triplicated generator sets (400kW + 160kW + 30kW) provide a stable and redundant energy foundation for both crane operations and daily shipboard needs.

FAQs

Q: Do you provide after-sales warranty?

A: International transactions for second-hand vessels are sold on an "As-is, Where-is" basis, and the price does not include warranty or after-sales service.

However, we will assist the buyer in handing over necessary documentation (such as original manuals and maintenance records).

If you require a warranty or after-sales support from us, this can be arranged under a separate contract. We have extensive experience and can guarantee the smooth operation of the vessel throughout its lifecycle.

Q: If the transaction is cancelled, is the deposit refundable?

A: The refundability of the deposit depends on the reason for cancellation. If the transaction is cancelled due to the buyer's reasons (e.g., unavailability of funds, unilateral breach of contract), the deposit is generally non-refundable. If it is due to undisclosed major defects in the equipment or force majeure, the deposit will be fully refunded. Please refer to the default provisions in the "Memorandum of Agreement (MOA)" for specific terms.
