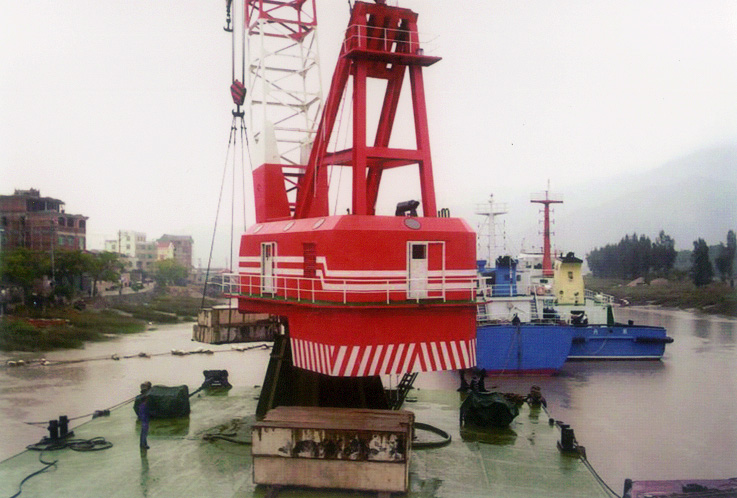

Type: Floating Crane
Model: Full Slewing Crane
Flag / Class: China / ZC
Build Time: August 2009
LOA: 52.6 m
Breadth Mld: 18.8 m
Depth Mld: 3.6 m
Load Draft: 3.2 m
Empty Draft: 1.0 m
Full Load Displacement: 3654.020 t
No Load Displacement: 3497.6 t
Main Engine: Diesel 6170C, 408 KW
Self‑propelled Engine: Diesel 6160, 275 KW × 2 sets, built 2008

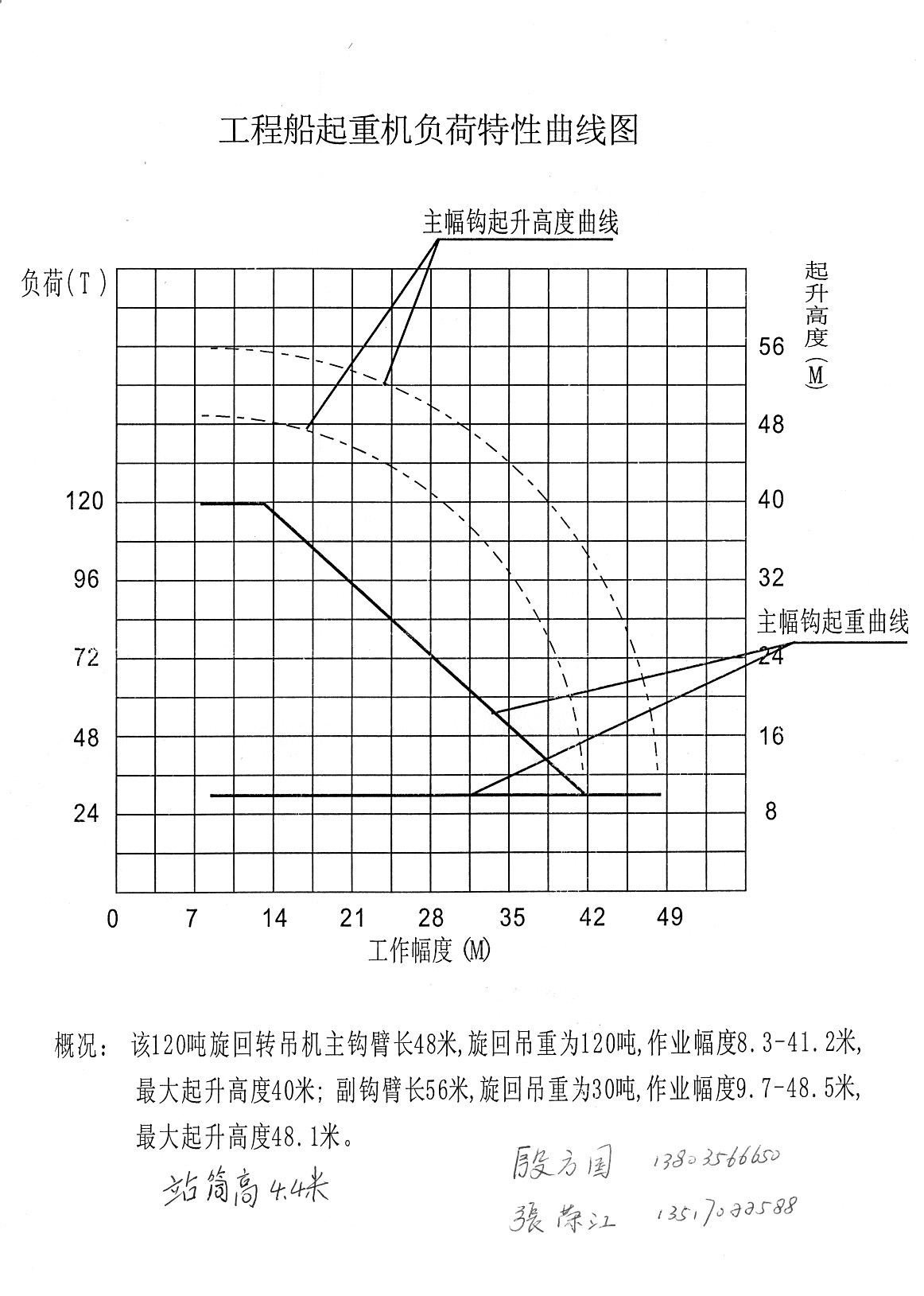

Jib Length: 48 m
Revolving Lift Capacity: 120 t
Lifting Height: 40 m
Jib Range: 8.3 – 41.2 m
Jib Length: 56 m
Revolving Lift Capacity: 30 t
Lifting Height: 48.1 m
Jib Range: 9.7 – 48.5 m
Offshore & Port Construction
Pile driving, module installation, bridge segment hoisting, and heavy equipment handling in ports and shipyards.
Shipbuilding & Ship Repair
Lifting hull sections, engines, propellers, and large outfitting components.
Salvage & Rescue
Salvaging sunken vessels, removing wrecks, and emergency heavy‑load recovery.
Marine Engineering Projects
Wind turbine foundation installation, pipeline laying, and offshore platform support.
General Heavy‑load Transport
Loading/unloading oversized cargo, steel structures, and machinery at coastal terminals.
High Lifting Capacity
120‑ton main hook meets most heavy‑duty marine lifting demands.
Full Slewing Design
360° rotation provides flexible operation and wide working coverage.
Stable Hydrostatics
Deep beam and reasonable draft ensure strong stability under load.
Dual Power System
Main crane engine + dual self‑propelled engines for reliable sailing and positioning.
Long Jib & Wide Reach
Extended jib range supports long‑distance and high‑altitude lifting.
Mature & Reliable
ZC class certified, robust diesel engines, low failure rate, easy maintenance.
