    100m Self Propelled Deck Barge

    100m deck transportation ship, mainly used for loading and transporting offshore wind power equipment, large ship segments, bridge structures, engineering auxiliary materials, steel and large mechanical parts and other cargoes,
    Category:Deck Barge     Browse number:140     Release time:2026-03-01 14:31:27
  • Share:
  • Contact us Inquiry
  • WhatsApp:15952900547


100m Offshore Deck Transportation Vessel – Specifications

Model: WMD4502C-100-02SM
Type: Steel single‑deck transom deck carrier
Dimensions: LOA 100.00m, B 22.00m, D 6.00m, Draft 4.23m
Deadweight: Uniform deck load 15.0 t/m²
Power: 2×Weichai CW8200ZC‑110 (350kW@750rpm)
Speed: ~9.0 knots; Endurance ≥1500 nm
Class: CCS, compliant with China 2020 offshore statutory rules
Crew: 11 persons
Ice class: B‑level strengthened


Key Advantages

  • Strong structural design with longitudinal framing in cargo zone

  • High deck loading capacity for heavy offshore equipment

  • Excellent stability (intact & damage) for offshore operation

  • Dual engine/propeller/rudder for reliable maneuvering

  • Efficient ballast system for flexible load adjustment

  • Full lifesaving, firefighting, and navigation equipment


Applications

  • Offshore Wind power equipment transportation

  • Large ship sections and bridge structure transport

  • Steel, machinery, and heavy engineering cargo delivery

  • Offshore engineering support and material supply

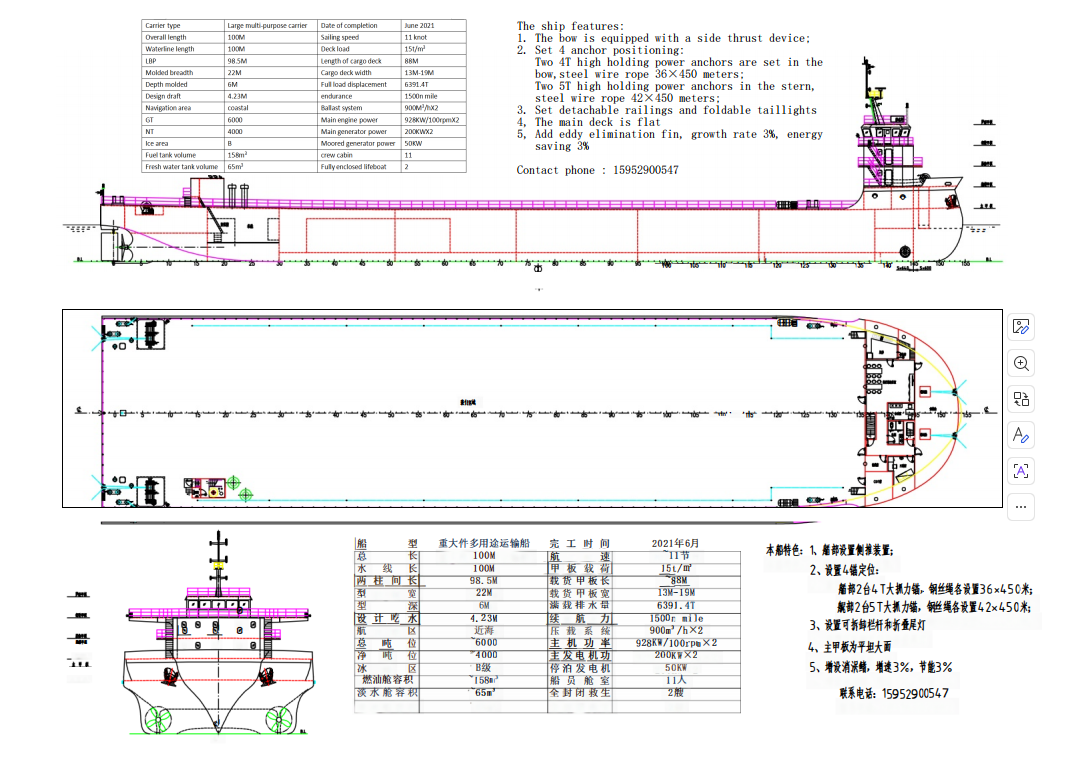

image.png100M Self Propelled Deck Barge
