1000 Tons floating crane - Brief Specification
Type: 1000-tonne self-propelled floating rotating crane
Built: 2007
Class: China ZC; Coastal/offshore navigation
SWL: 1,000 tonnes; Max lifting: 1,050 tonnes

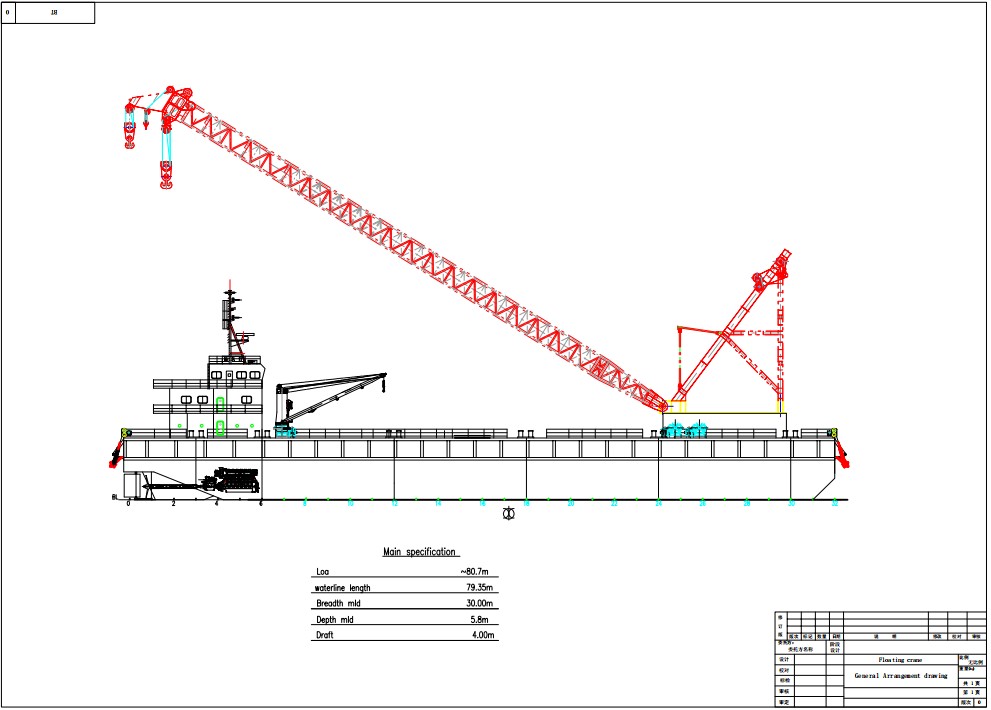

Main dimensions: LOA 80.7m, Molded breadth 30m, Molded depth 5.8/6m, Design draft 2.8/3m
Displacement: Light 3,557t; Full load 6,333t
GRT/NRT: 4,496/1,348
Accommodation: 60–70 persons
Main engines: 2×DAIHATSU, 835kW each
Auxiliary generators: 2×500kW, 1×325kW, 3×90kW
Main boom: 80m; Fixed jib: 60m
Main hook: 2×500t; Aux hook: 120t; Rigging hook:15t
Lifting speed: Main 0–2.0m/min; Aux 0–5.0m/min; Rigging 0–18.0m/min
Offshore Wind turbine installation & maintenance

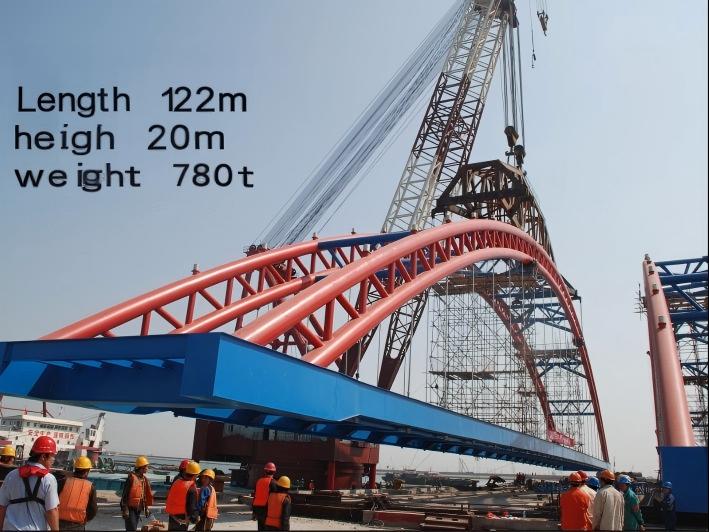

Large-scale bridge construction & piling
Shipbuilding & ship repair
Harbor construction & heavy cargo handling
Offshore platform installation & salvage
Coastal engineering & heavy lifting projects

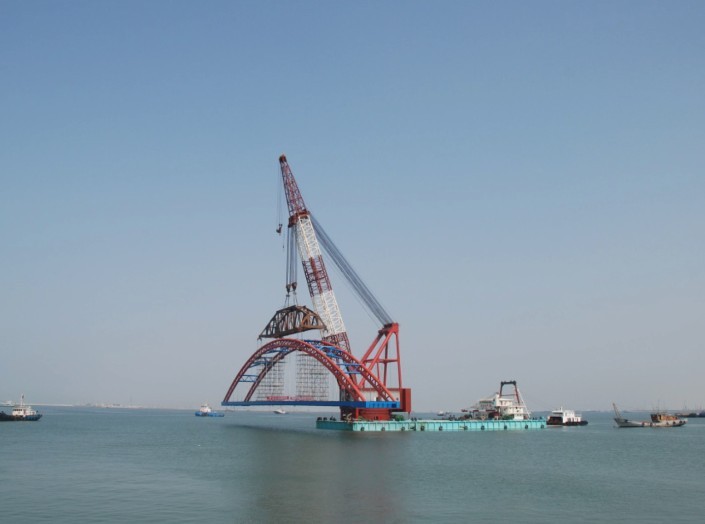

Project case:
Heavy lifting capacity: Safe working load up to 1,000 tonnes; max lifting 1,050 tonnes
Self-propelled & self-sailing: Flexible mobilization without assist tugs
Stable & efficient: Wide beam (30m) & shallow draft (2.8m) for coastal/offshore stability
Full crane configuration: Main hook, auxiliary hook & rigging hook for multi-scenario use
Reliable power system: 2 main engines + 6 auxiliary generators for continuous operation
ZC class approved: Fully compliant with coastal & offshore navigation regulations
Comfortable accommodation: Up to 70 persons for long-term offshore missions
Q: What is the maximum safe working load?
A: SWL is 1,000 tonnes; max lifting capacity is 1,050 tonnes.
Q: What navigation area is allowed?
A: Coastal and offshore areas with ZC class certificate.
Q: Is it self-propelled?
A: Yes, self-propelled / self-sailing.
Q: What are the crane configurations?
A: Main hook: 2×500t; Aux hook: 120t; Rigging hook:15t.
