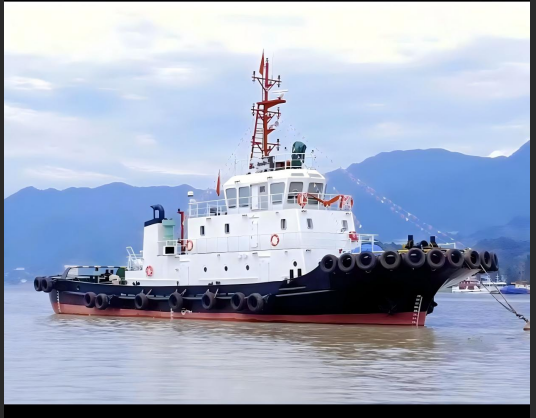

Tugboat Propulsion System | Propulsion Structure & Power Combination Selection Guide

Tugboat Propulsion Configurations | Core Equipments

I. Definition of Core Terms

Three Core Configurations of Marine Propulsion Systems

1. Conventional Propulsion (Fixed Shaft Line)

Configuration: Main Engine + Long Shaft Line + Independent Rudder System + [FPP or CPP]

Characteristics: Highest efficiency in straight-line navigation; mature technology.

Application: Long-distance pure towing missions (point-to-point, low maneuverability) where ultimate fuel economy and cost-effectiveness are pursued.

2. Azimuth Propulsion Systems

Core Feature: The entire propulsion unit rotates 360°, replacing the independent rudder system.

Sub-types:

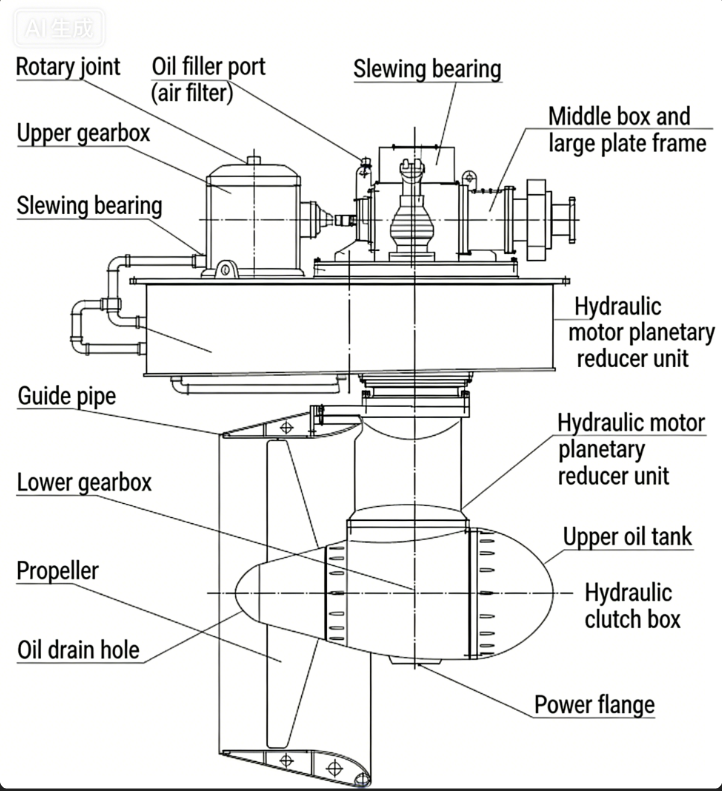

Mechanical Transmission (Z/L-Drive)

Structure: Inboard Gearbox + Z/L-type Shafting + Underwater Rotatable Unit + [Typically CPP]

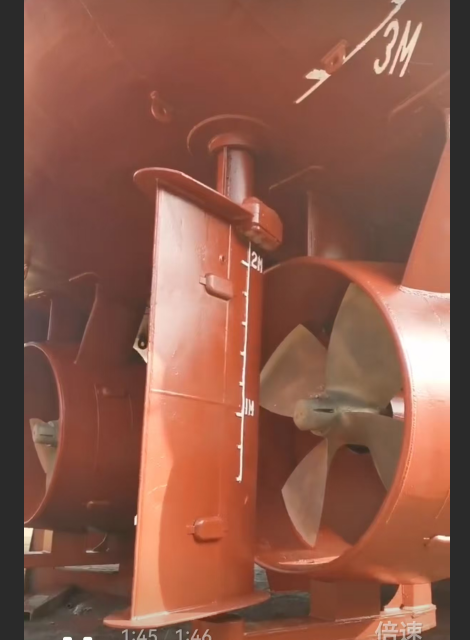

ASD (Azimuth Stern Drive): Specifically refers to the configuration with twin engines and twin propellers located at the stern; this is the industry standard for modern tugs.

Electric Transmission (Pod / Azipod)

Structure: Underwater Podded Motor Direct Drive + [FPP or CPP]

Characteristics: No long shaft line, low noise, flexible arrangement.

Application: High-end eco-friendly tugs and offshore support vessels (OSV) with high demands for Dynamic Positioning (DP).

3. Voith Schneider Propeller (VSP) / Cycloidal Propeller

Structure: Vertical rotating disc + Variable-pitch blades (No traditional propeller).

Characteristics: Millisecond-level thrust vector response; capable of true lateral translation (sideways movement).

Application: Port operations in confined waters with extreme maneuverability requirements (e.g., assisting large container ships in berthing).

4. Power Source / Load Control

Diesel Power: Mature technology, long endurance, high emissions, suitable for open sea/onshore power-free scenarios.

Battery Electric Power: Battery energy storage, zero emissions, low noise, limited endurance, suitable for environmentally strict port/inland river areas.

DE-Hybrid (Diesel-Electric Hybrid): Diesel generator + battery, with three working modes (diesel engine/battery/combined), balancing endurance and environmental protection, the mainstream upgrading solution.

Slip Clutch: A hydraulic coupling device that softens thrust and provides overload protection. It has a low transformation cost and is suitable for the renovation of old tugboats.

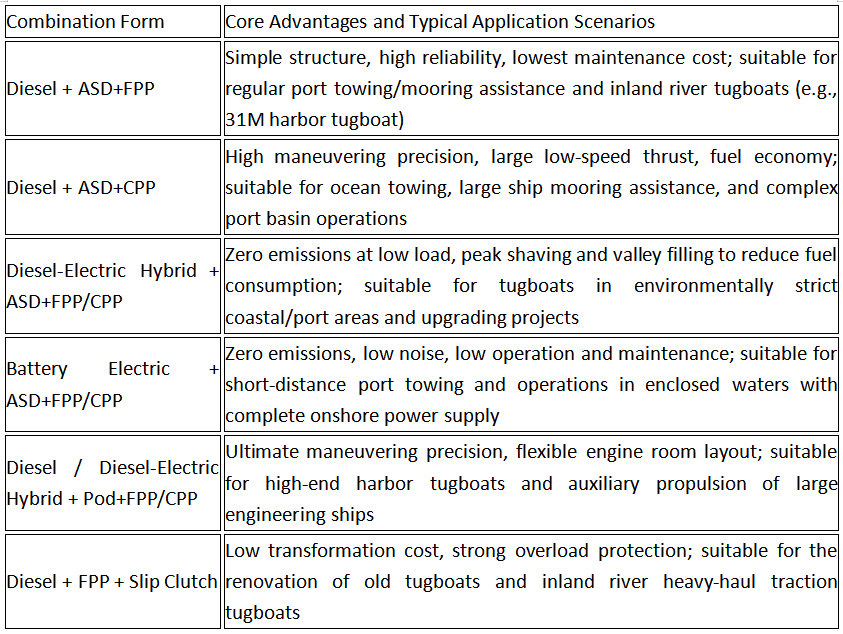

II. Classic Power Combinations and Applicable Scenarios

III. Core Functions and Performance Indicators of Tugboats

(1) Core Functions (by Operation Scenario)

Port Operations / Mooring & Unmooring: Assisting large ships with mooring/unmooring/turning, requiring the ultimate maneuverability of AZI/VSP, with a bollard pull of 40-80 tons.

Coastal / Ocean Towing: Towing unpowered ships/heavy cargo (wind power foundations, ultra-large modules), requiring large thrust and long endurance, with a bollard pull of 100-250 tons + and endurance of 30 days +.

Maritime Rescue / Emergency: Rescuing out-of-control ships, maritime fire fighting, oil spill recovery, personnel evacuation, requiring DP positioning, Fi-Fi fire fighting system, and fast thrust response.

Engineering Ship Collaboration: Assisting dredging/lifting/pipelaying ships with precise positioning/operations, requiring DP2 level positioning, multi-thrust point coordination, and high low-speed precision.

Special Functions: Ice-breaking operations (high-strength bow + high-power propulsion for opening waterways in cold areas); logistics supply (transporting fresh water/fuel/spare parts to offshore platforms).

(2) Core Performance Indicators

Bollard Pull (BP): 40-80 tons for port tugboats, 100-250 tons + for ocean tugboats (Unit: ton / kilonewton kN).

Maneuverability: Whether 360° full rotation is available, thrust response time (AZI<1s, CPP≤3s).

Endurance: ≥30 days for ocean navigation, ≥8 hours of continuous operation for port use.

Seakeeping: ≥2m wave height for port use, ≥6m wave height for ocean navigation.

Fire Fighting Class (Fi-Fi): ≥Fi-Fi Class 1 for rescue tugboats, Fi-Fi Class 2/3 for professional fire fighting tugboats.

DP Class: DP1 (basic positioning), DP2 (redundant backup, standard configuration for rescue/engineering tugboats).

IV. Key Supporting Equipment (Excluding Power/Rudder Propeller)

★A Deck Machinery System

Core Function: Directly realize the core operations of towing and mooring, serving as the core carrier of tugboat operation capacity. The mainstream drive mode is hydraulic drive, with a small number of high-end models adopting electric drive.

Towing WinchCore Function: Retract and release the towing cable, maintain constant cable tension in real time, and adapt to different towing loads.

Key Types: ① Automatic Tension Winch: Most commonly used in port tugboats, automatically retracts and releases the cable according to the load to prevent cable breakage due to excessive tension; ② Render Winch: Exclusive to ocean tugboats, automatically and quickly releases the cable when the tension exceeds the equipment limit to prevent ship capsizing due to excessive towing force.

Towing HookCore Layout: A core operating component at the stern, standard equipped with a Quick Release function, which can cut off the towing force with one key in an emergency to avoid ship capsizing caused by towing force overload.

High-End Configuration: Universal Towing Hook, allowing the towing cable to operate at a large angle without operating angle restrictions, avoiding equipment damage due to an excessively large cable angle.

Mooring WinchCore Function: Fix the tugboat hull when the tugboat berths by itself, and complete positioning with the dock bollards to ensure the operational stability of the tugboat itself.

Applicable Scenarios: Waiting for port mooring & unmooring, berthing during operation intervals, dock supply and other scenarios.

★B Dynamic Positioning and Control System

DP System: DP1/DP2 level, automatically coordinates all thrusters to resist wind, waves and currents to keep the ship at the designated position without frequent manual adjustment.

Joystick Control System: Single-handle operation, the computer automatically calculates the speed/rotation angle of each thruster to realize "what you think is what you get" movement such as transverse movement, in-situ rotation, and precise berthing.

Integrated Monitoring System (IMS): Centrally displays the operating status of all equipment such as main engines, thrusters, winches, and fire fighting systems, realizing real-time fault alarm and real-time parameter monitoring.

★C Fire Fighting and Rescue System

Fi-Fi Fire Monitor System: Water/foam dual-purpose type, divided into Fi-Fi Class 1/2/3, equipped with high-power fire pumps + remote-controlled fire monitors, standard configuration for rescue tugboats.

Oil Spill Recovery Equipment: Including oil skimmers and oil storage tanks, the core configuration of multi-functional tugboats, suitable for emergency handling of maritime oil spill accidents.

Rescue Boat Davit: Quick-release davit, matched with a special rescue boat to realize rapid evacuation of crew members of distressed ships.

★D Stabilization and Auxiliary System

Anti-Roll Fins / Anti-Roll Tanks: Reduce the rolling amplitude of the ship during navigation/operation, and improve the operational safety and crew comfort during ocean towing.

Bow Thruster: Optional for large ocean tugboats, enhancing lateral maneuverability during low-speed navigation/operation, generally not required for full-rotation tugboats (ASD/AZI).

Shore Power Connection System: Standard configuration for battery electric/diesel-electric hybrid tugboats, realizing direct shore power drive when berthing at the port for zero-emission operations throughout the process.

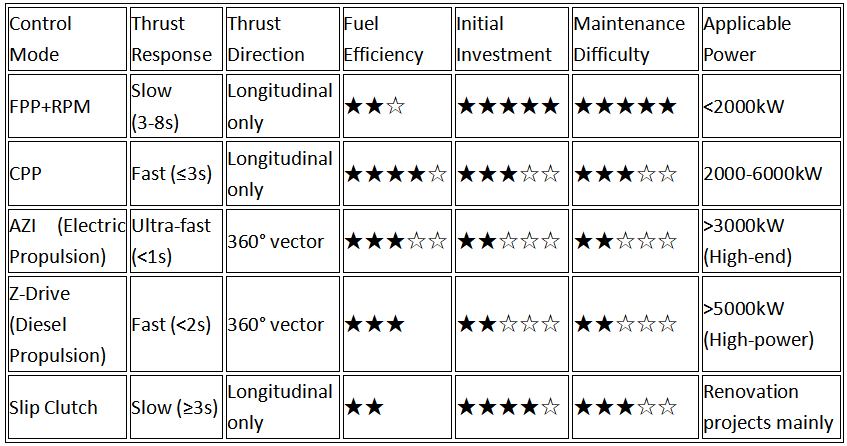

V. Comparison of Mainstream Propulsion Load Control Modes

VI. Other Power Forms and Applications

Diesel Direct Drive (without full rotation):
Lowest cost, mature technology, extremely poor maneuverability, slow reversing response, suitable for small old inland river tugboats (currently being gradually eliminated by ASD full-rotation configuration).

LNG Dual Fuel:
Free switching between diesel/LNG fuel, significantly reducing nitrogen oxide and sulfur oxide emissions, with endurance equivalent to pure diesel. It requires supporting port LNG refueling facilities and is suitable for coastal/port tugboats in environmentally strict areas.

CODOG/COGAS (Combined Diesel and Gas):
Diesel engine + gas turbine combination, using diesel engine at low speed and gas turbine at high speed. It has high power density and excellent high-speed performance, but high cost and complex maintenance, suitable for high-speed ocean tugboats, coast guard ships/patrol ships.

Hydrogen / Ammonia Fuel:
Zero carbon emissions, with hydrogen/ammonia fuel cells as the core power. Currently in the technical test/port demonstration stage, suitable for green port demonstration new energy tugboats.

Sail Assistance:
Hard/soft sails arranged on the deck, using wind energy to provide auxiliary thrust, save energy and reduce emissions and fuel consumption. It is only an auxiliary power and cannot drive independently, suitable for ocean tugboats in sea areas rich in wind energy.

Shore Power Direct Drive:
Not an independent power form. The ship is directly connected to the port shore power system when berthing to supply power for the propulsion/auxiliary system, realizing zero emissions throughout the process. It is a standard supplementary power supply method for all harbor tugboats.

VII. Selection Suggestions + Development Trends

(1) Selection Logic (by Operation Scenario Priority)

★Regular Port Operations:

Diesel + ASD+FPP (high cost performance, high reliability); upgrade to diesel-electric hybrid + ASD+CPP in environmentally strict areas.

★Ocean Towing / Large Ship Mooring Assistance:
Diesel + ASD/CPP，FPP +Z-Drive, meeting the requirements of large thrust, high maneuvering precision and long endurance.

Note: Traditional ocean tugboats mostly adopt the fixed pitch propeller + steering gear configuration to optimize long-distance navigation efficiency.

Although ASD tugboats have obvious advantages in maneuverability, their energy consumption may be slightly higher at the pure ocean economic speed.

Practical Application:
ASD tugboats have been used for ocean towing. For example: Damen ASD series tugboats (e.g., ASD 2111, ASD 3010) have been purchased by the navies of many countries for ocean ship towing and support. ASD tugboats built by Chinese shipyards have also participated in the ocean towing of large offshore engineering platforms and unpowered floating bodies.Such operations usually require tugboats to meet IMO Tier III emission standards, large bollard pull (e.g., more than 50 tons) and seaworthiness certification, which new ASD tugboats can already satisfy.

★Maritime Rescue / Engineering Collaboration Operations:
Diesel-electric hybrid + dual AZI+CPP+DP2, supported by Fi-Fi fire fighting system + oil spill recovery equipment to ensure equipment redundancy and emergency operation capacity.

★Green Port Demonstration Operations:
Battery electric + ASD+FPP/CPP (needing supporting complete shore power charging facilities); pure electric + Pod propulsion can be selected if the budget is sufficient.

★Renovation of Old Tugboats:
FPP + slip clutch, realizing overload protection and low-speed thrust improvement at low cost without overall replacement of the propulsion system.

(2) Development Trends

★Decarbonization:
With the full implementation of IMO Tier III emission regulations, diesel-electric hybrid + battery energy storage + AZI/CPP has become the standard configuration of a new generation of tugboats. Hydrogen/ammonia fuel power is gradually industrialized, and port shore power direct drive facilities are fully popularized.

★Intelligence:
Digital twin technology empowers predictive maintenance of propulsion systems, and AI algorithms optimize the pitch/rotation angle in real time to realize intelligent thrust control and significantly reduce energy consumption redundancy.

★High Reliability:
The redundant design of propulsion systems is continuously upgraded, and DP3 level dynamic positioning is gradually applied to high-end rescue/engineering tugboats to achieve "single point of failure-free" operation guarantee.

★Integration:
The integrated integration of propulsion system + deck machinery + control system simplifies the maneuvering logic, improves the operation efficiency by more than 30%, and has become the mainstream of modern tugboat design.
