Comparison: Integral vs. Modular Cutter Suction Dredgers (CSD)
Scope of Comparison: This document compares CSDs with a production capacity of under 1,000 m³/h.
For larger CSDs ，with the exception of one 2,200 m³/h unit built by CCCC, virtually all larger vessels are of integral design, so a comparison is not applicable.
The choice between an Integral (one-piece) or Modular (split-type) hull structure directly dictates the vessel's transportation method and operational suitability.
1. Core Differences Overview
Integral Type: Suitable for long-term, fixed-location operations without frequent relocation.
Modular Type: Suitable for frequent relocation, especially for remote areas with difficult access.
2. Integral Cutter Suction Dredger
Characteristics: The hull is a complete, single-piece steel structure with all equipment installed on the same platform.
Advantages:
High Structural Strength: Excellent hull integrity provides superior resistance to wind and waves, ensuring higher operational stability. It is suitable for long-term, high-intensity construction.
Ready for Operation: Factory-tested and commissioned before delivery. No complex assembly is required upon arrival at the site.
Superior Sealing: No splicing gaps, eliminating the risk of leakage.
Disadvantages:
Transportation Constraints: Must be towed via waterways; cannot access inland, mountainous, or isolated sites without water connections.
3. Modular Cutter Suction Dredger
Characteristics: The hull is designed as detachable modules (pontoon sections) of specific dimensions.
Advantages:
Flexible Transportation: Can be transported via truck (road), railway, or cargo ship.
High Accessibility: Can reach remote construction sites inaccessible by water (e.g., inland lakes, reservoirs).
Disadvantages:
Complex Design: Requires reinforced connection structures.
Time-Consuming Assembly: Requires days to weeks for assembly and commissioning on-site.
High Maintenance: Connection bolts and seals require regular inspection.
Capacity Limits: Limited to smaller sizes. Note: Apart from transportation convenience, modular CSDs are inferior to integral types in all aspects. The gap in hull strength, stability, and suitability for high-intensity work is particularly evident in complex hydrological conditions such as estuaries, ports, and coastal areas.
4. Advantages of Integral over Modular
Structural Strength: Single-hull rigid structure offers better integrity, torsion resistance, bending resistance, and wave impact resistance. Continuous framing and reinforced plating ensure better durability in harsh waters. The absence of flexible module connections avoids common fatigue damage, deformation, and leakage. The double-bottom structure in engine and pump rooms enhances safety and damage resistance.
Stability: Lower center of gravity ensures greater stability during operations, shifting, and mooring. Integrated bow/stern ballast systems allow for quick trim adjustment. The wider hull offers better resistance to rolling and pitching. Complies with China MSA stability rules, ensuring safety in coastal wave environments.
Operational Performance: Higher efficiency as no disassembly is required. Integrated suction/discharge systems reduce pipeline resistance and loss. Higher positioning accuracy with the spud trolley and integral hull ensuring stable ladder attitude. Underwater pump design improves suction performance and reduces cavitation risk.
Site Adaptability: Suitable for coastal and open waters with superior wave resistance. Relocation is convenient via towing. Operational range far exceeds most modular units. High reliability and low downtime make it ideal for long-term projects.
Operation & Safety: Easier operation and maintenance with centralized control systems. Better watertight integrity with fewer compartments reduces leakage risk. Long endurance supports continuous offshore operations. Equipped with a full set of gear (crane, winches, spuds) without needing extra modules.
5. Construction Standards & Certification
Modular: Typically built in general workshops; many are not constructed by formal shipyards.
Integral: Built by formal shipyards under full supervision of a Classification Society.
Design drawings are approved by the Classification Society.
The entire construction process is supervised by surveyors on-site.
All materials and key equipment possess valid Class certificates.
The vessel is launched and commissioned to optimal condition, obtaining official Class certification.
6. Summary
The Integral CSD is significantly superior to the Modular type in structural strength, stability, wave resistance, efficiency, and safety. It is the preferred equipment for coastal engineering, land reclamation, and long-term dredging projects. The higher the hourly production capacity, the lower the safety and reliability of a modular design. However, transportation convenience is absolute advantage of Modular CSDs .

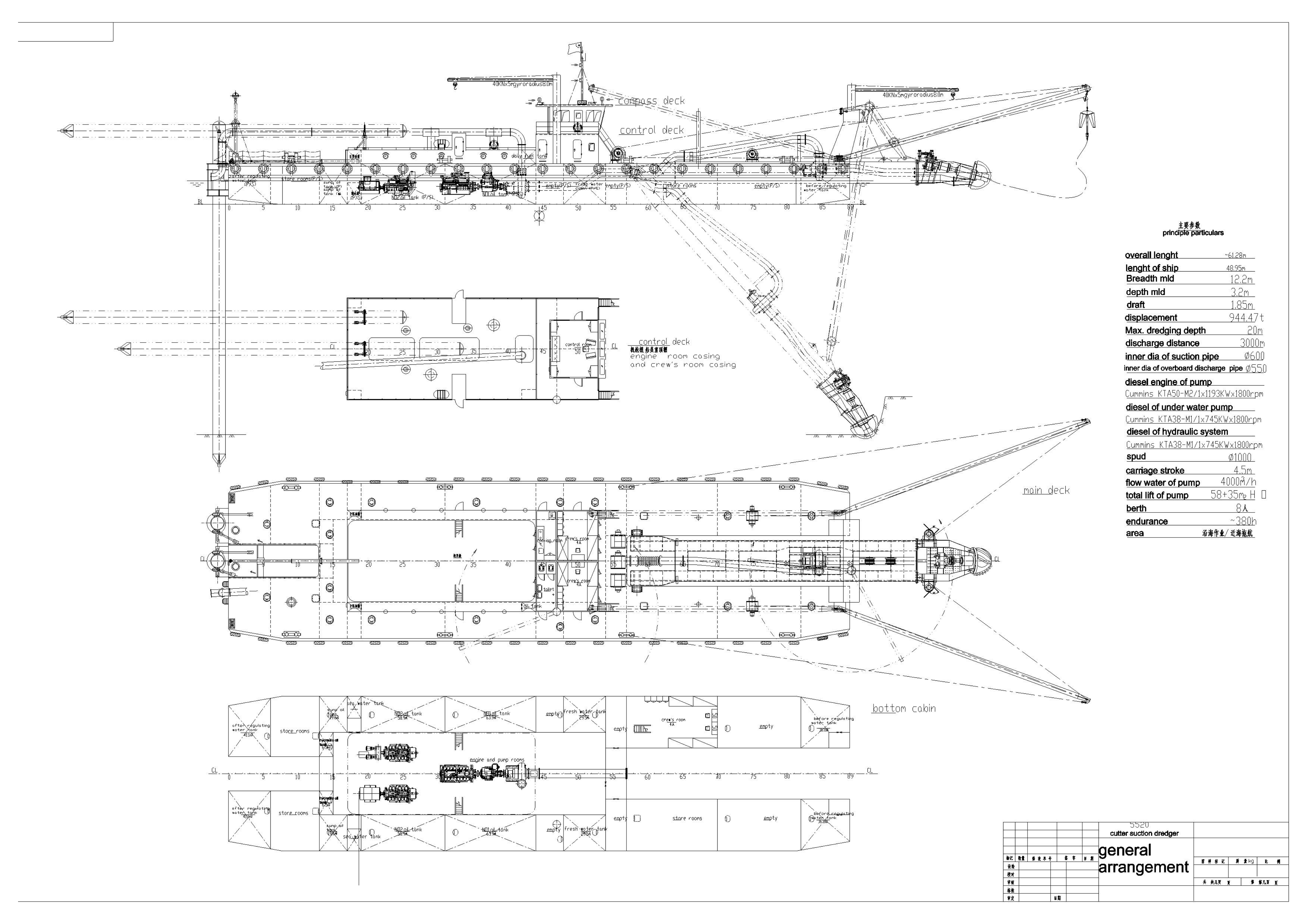

Product Profile: Yanyang Marine 800m³/h Integral CSD
This vessel is an 800m³/h non-self-propelled integral CSD. It features a single-hull structure integrating the underwater pump, spud system, trolley, mooring system, dredge pump, hydraulic system, and deck crane. Compared to modular CSDs, this vessel offers significant advantages in strength, stability, adaptability, efficiency, and safety, making it suitable for coastal port construction, land reclamation, and channel dredging.
Main Technical Specifications
Vessel Type: Integral Non-Self-Propelled Cutter Suction Dredger
LOA: Approx. 61.28m
Length: 48.95m
Beam (Overall): 12.60m
Breadth (Molded): 12.20m
Depth: 3.20m
Design Draft: 1.85m
Displacement: 944.47t
Max Dredging Depth: 20m
Production: 800m³/h
Dredge Pump: JFC112-23-55 (Flow: 4000m³/h, Head: 93m)
Suction Pipe Dia: 600mm
Discharge Pipe Dia: 550mm
Main Engine: Cummins LTA50-M2, 1193kW
Auxiliary Engine (Underwater Pump/Hydraulic): 2 × Cummins KTA38-M1, 745kW each
Spud Diameter: 1000mm
Trolley Stroke: 4.5m
Winch Pull: 200kN (Ladder/Swing)
Deck Crane: 4t, Radius 4m
Endurance: Approx. 380 hours
Crew: 8 Persons
Navigation Zone: Coastal
Class: IACS (International Association of Classification Societies)
Structure: Transverse framing, double-bottom structure (Engine/Pump room)
Hull Material: CCS Grade A Marine Steel
Application ：
Coastal port construction and maintenance dredging
Land reclamation and enclosure projects
River, lake, and coastal channel dredging
Excavation in moderate sea conditions
Projects requiring high stability and continuous operation
