How the split system for a split hopper barge works, what kind of components included

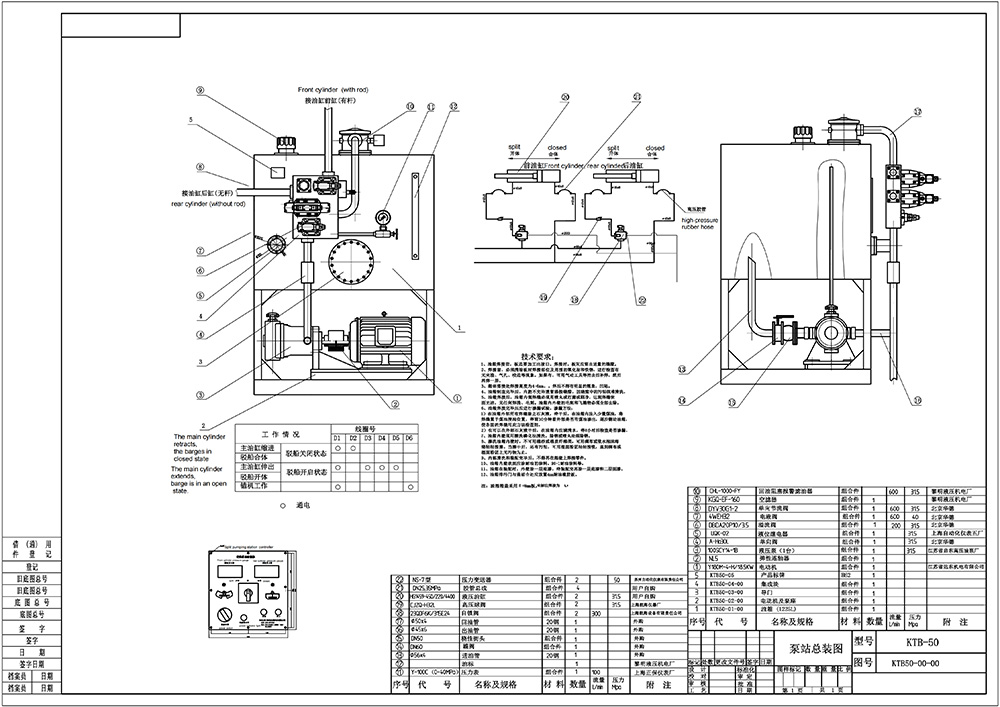

Hydraulic Power Unit (HPU) for Split Hopper Barge

Working Principle & Engineering Components

1. Working Principle

1. Energy conversion

   Motor or diesel engine drives the hydraulic pump, converting mechanical energy into high-pressure hydraulic energy (16–31.5 MPa).
2. Actuation

   High-pressure oil flows through the control manifold to the opening cylinders, extending pistons to split the hull.

   Reversing the valve retracts cylinders to close the hull.
3. Holding & locking

   The system maintains pressure when closed, supported by mechanical locks to prevent accidental opening or leakage during transport.
4. Safety & control

   Relief valves limit pressure, counterbalance valves control speed, and limit switches define full-open / full-close positions.

2. Core Engineering Components

1. Power Section

• Hydraulic pump (piston pump / gear pump): generates high-pressure oil

• Prime mover: electric motor or diesel engine

2. Actuating Component

• Opening/closing hydraulic cylinders: large-bore cylinders, port and starboard mounted, to split and close the hull

3. Control Manifold & Valves

• Solenoid directional valves: control opening/closing direction

• Relief valve: system pressure limiting & overload protection

• Counterbalance valves / pilot check valves: prevent overspeed, load drop, and cylinder drift; maintain holding pressure

• Throttle valves: adjust opening/closing speed

4. Auxiliary Components

• Hydraulic tank: oil storage, heat dissipation, contamination separation

• Oil cooler (water-cooled / air-cooled): control oil temperature

• Suction filter & return filter: maintain oil cleanliness

• Level gauge, thermometer, pressure gauge: system monitoring

• High-pressure hoses & steel pipes: oil distribution

5. Electrical & Control System

• Control cabinet

• Local control panel / joystick

• Limit switches (full open / full close)

• Emergency stop (E-stop)

Short Summary

The hydraulic power unit supplies high-pressure oil to drive the hull split/close. Key components: pump, cylinders, valve manifold, tank, cooling/filtration, and control system.

Core Working Principle (Step-by-Step)

1. Closed (Loading/Transport Mode)

• The two symmetrical hull halves are clamped tightly together along the centerline keel/side seam.

• A full-length watertight rubber/neoprene seal runs the length of the split joint, preventing water ingress and cargo leakage during dredging, loading, or transit.

• Hydraulic cylinders are fully retracted; locking mechanisms (clamps/pins) secure the hull to resist bending, wave loads, and internal cargo pressure.

2. Opening (Discharging Mode)

• The operator releases the centerline locking clamps/pins.

• Hydraulic power units (HPUs) activate large-diameter hydraulic cylinders (mounted port/starboard, along the barge length or at the ends).

• Cylinders extend, pushing the two hull halves outward and downward (pivoting at the bottom keel hinge or side hinges) to create a V-shaped opening down the center.

• Gravity pulls the dry/wet spoil (sand, silt, rock) out through the open split—dumping is fast, complete, and requires no additional equipment.

3. Closing (Reset Mode)

• Hydraulic cylinders retract, pulling the two hull halves back together.

• The watertight seal compresses, and locking clamps engage to re-seal the hopper for the next load cycle.

Key Components of the Split System (Full List)

1. Hull Structure & Hinge System (Foundation)

• Split Hull Halves: Two identical port/starboard pontoons, designed to pivot and form a sealed hopper when closed.

• Centerline Hinge(s): Primary pivot point (usually at the bottom keel or side girders) – allows the halves to swing open/closed like a clamshell. May use heavy-duty steel pins, bushings, or flexible rubber hinges for large barges.

• Reinforced Girders/Frames: Heavy longitudinal/transverse steel frames to withstand splitting forces, wave loads, and cargo pressure (prevents hull deformation).

2. Hydraulic Actuation System (Power Core)

• Hydraulic Power Unit (HPU): Electric/diesel-driven pump, reservoir, filters, and control valves—supplies high-pressure oil (200–350 bar) to drive cylinders.

• Main Hydraulic Cylinders: 2–8 large-bore cylinders (mounted along the barge sides or at bow/stern) – the "muscle" that pushes halves open/pulls closed. Cylinders are sized for the barge’s hopper volume and structural load.

• Hydraulic Piping/Hoses: High-pressure steel pipes and flexible hoses to route oil from HPU to cylinders, with quick-connects and pressure relief valves for safety.

• Control System: Operator panel (local/remote) with joysticks, solenoid valves, and pressure sensors—controls opening/closing speed, synchronizes cylinders, and monitors system pressure.

3. Sealing & Locking System (Critical for Watertightness)

• Watertight Centerline Seal: Full-length, heavy-duty rubber/neoprene profile seal (often double-lip or U-shaped) – compresses when closed to form a watertight, leak-proof joint; resistant to abrasion, oil, and saltwater.

• Locking Clamps/Pins: Mechanical clamps (hydraulically actuated) or shear pins along the split joint—locks the hull halves tightly closed during loading/transit, prevents accidental opening, and distributes structural loads.

• Seal Compression Mechanism: Ensures the seal is evenly compressed across the entire split length to avoid gaps.

4. Auxiliary & Safety Components

• Position Sensors/Limit Switches: Detect fully open/closed positions, stop cylinders automatically, prevent over-travel.

• Emergency Stop System: Manual/remote E-stops to halt splitting in case of malfunction.

• Pressure Relief Valves: Protect cylinders and piping from overpressure.

• Lubrication System: For hinges and moving parts to reduce wear.

• Structural Monitoring Sensors: Strain gauges to track hull stress during splitting.

Key Design Variations

• End-Split vs. Full-Length Split: Most are full-length (centerline split the entire barge); some smaller barges use end-split (only the aft section splits).

• Hinge Type: Keel-hinged (most common, stable dumping) vs. side-hinged (wider opening, used for larger spoil).

• Cylinder Placement: Side-mounted (along the hull) or bow/stern-mounted (end-push).
