How to Select the Right Pipeline for Your Dredging Project?

FAQs of Dredging Pipeline

Q1: What is dredging pipelines ?
A: Dredging pipelines are essential supporting components for the discharge system of hydraulic dredgers(Hydraulic dredgers loosen sediment by high-pressure water jets, cutter heads or drag heads, then suck the slurry through mud pumps. Common types include cutter suction dredgers, trailing suction hopper dredgers, non-cutter dredgers and pneumatic dredgers). Dredging pipelines are used to transport and discharge the slurry pumped by mud pumps.

Q2: What are the common types of dredging pipelines?

A: According to material, structure and application scenarios, dredging discharge pipelines are mainly classified into the following categories:

Dredging Steel PipeHigh strength, wear-resistant and strong pressure-bearing capacity. Suitable for high-pressure, long-distance, offshore and complex working conditions. It is the most widely used main pipeline in dredging projects.
HDPE Discharge PipeLight weight, corrosion-resistant with smooth inner wall. Mostly used in inland rivers, coastal areas and low-pressure discharge scenarios. Easy to install but not suitable for high-pressure and long-distance transportation.
Rubber Dredging Hose / Flexible PipeGood flexibility and bendability. Mainly used for stern discharge of dredgers, movable sections of floating pipelines, pipeline bends and other parts requiring swing and deformation.

Steel-Plastic Composite Pipe / Lined Plastic Steel PipeCombines the strength of steel pipe and the wear & corrosion resistance of plastic. Suitable for main discharge pipelines with heavy wear and strong corrosion, with longer service life.
Floating Dredging PipelineComposed of steel pipe or HDPE pipe with floats, or HDPE self-floating pipe (high cost). Used for floating discharge on water and adaptable to movable dredging operation areas.

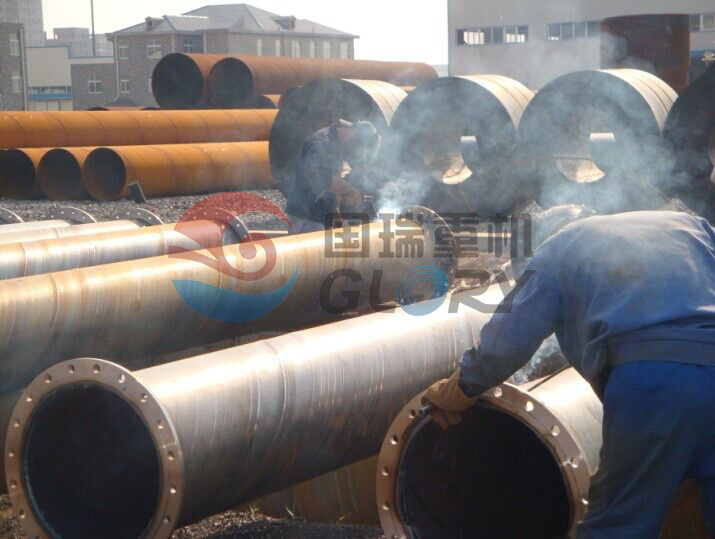

Q3: Why Steel Pipe Is the First Choice in Dredging Projects?

A: Steel pipe stands as the core and preferred piping material for dredging engineering, as its inherent advantages perfectly align with the harsh working conditions of dredging operations—including high wear, high pressure, and complex marine environments. Its core merits can be condensed into seven key aspects, making it irreplaceable compared to HDPE, FRP, cast iron pipes and other alternatives.

1. Superior Strength & Wear Resistance
Dredging media such as sediment, pebbles and gravel cause severe scouring and abrasion to pipelines, the primary cause of pipe failure. Steel pipe boasts far stronger tensile, compressive and impact resistance than alternative materials, enduring long-term high-speed sediment scouring. Its wear resistance can be further enhanced via thickened walls or wear-resistant alloy/ceramic linings, cutting down pipe replacement frequency drastically for both shallow and deepwater dredging.
2. Excellent High-Pressure Bearing Capacity
Long-distance discharge via cutter suction dredgers, trailing suction hopper dredgers and other mainstream equipment generates internal pressure up to several megapascals, with sustained pressure loss across extended distances. Steel pipe’s exceptional pressure resistance eliminates bursting and deformation, fully meeting deepwater, high-pressure and long-discharge demands. In contrast, HDPE and FRP pipes only bear 1/3 to 1/2 of steel pipe’s pressure capacity, unfit for high-pressure long-haul transport.
3. High Rigidity for Complex Underwater/Offshore Installation
Dredging pipelines (floating, intertidal submerged, submarine) endure long-term wave impacts, current scouring and external drag, requiring high structural stability. Steel pipe features high rigidity and minimal deflection, with stable structure and low deformation/fracture risks, making it the only reliable option for critical pipelines. Flexible HDPE pipes stretch and deform under wave drag, while FRP pipes have poor impact resistance and are vulnerable to damage in complex conditions.
4. Reliable Sealing for Large-Diameter & Long-Line Construction
Most dredging discharge pipelines are large-diameter (φ400–1200mm and above) and long-distance, demanding tight sealing and efficient construction. Steel pipe supports on-site welding or flange connections, both delivering high strength and premium sealing to prevent mud and water leakage. Welding enables continuous large-diameter pipeline laying, with convenient later maintenance and rerouting, outperforming HDPE and FRP pipes in connection sealing and efficiency.
5. Customizable Seawater Corrosion Resistance
Most dredging projects operate in seawater or brackish water, where chloride and salt induce severe corrosion that shortens ordinary pipes’ service life. Steel pipe can be equipped with dual anti-corrosion protection: external coatings (coal tar epoxy, polyethylene) and internal anti-corrosion/wear-resistant layers (epoxy resin, wear-resistant coatings). With proper treatment, it can serve 10–20 years in seawater, far longer than untreated alternatives.
6. Complete Specifications for Versatile Matching
Dredging engineering involves diverse equipment (dredgers, discharge pumps, floating devices) requiring varied pipe diameters, wall thicknesses and strength grades. Steel pipe offers full customization, ranging from small φ200mm pipelines to large main pipes over φ2000mm, with adjustable strength grades to fit all dredging systems. HDPE and FRP pipes lack large-diameter supply, failing to meet large-scale project demands.
7. Aging Resistance & Long-Term Cost-Effectiveness
Long-term outdoor/water exposure subjects pipelines to UV radiation, temperature fluctuations and weathering-induced aging. Steel pipe has stable material properties, strong UV and aging resistance, and good temperature adaptability, with no material degradation in prolonged outdoor use. With routine anti-corrosion maintenance, it lasts 15–20 years, with lower overall costs than frequently replaced HDPE and FRP pipes, delivering remarkable cost-effectiveness.
One-Sentence Summary
Steel pipe dominates dredging engineering thanks to its high strength, wear/pressure resistance, stable rigidity, reliable sealing, seawater corrosion resistance, complete specifications and long service life. It adapts seamlessly to sediment scouring, high-pressure transport and complex offshore/submarine installation, making it the most economical and practical piping choice for dredging works.

Q4: What is Other Pipes Used in Dredging Projects and Their Application Scenarios?

A: In addition to steel pipe, other pipes are selected in dredging projects according to working pressure, installation environment and location, with the following characteristics and applications:

1. High-Density Polyethylene Pipe (HDPE Pipe)
Core characteristics: wear-resistant, corrosion-resistant, light weight, good flexibility, smooth inner wall, rust-free, easy installationApplication scenarios: low-pressure discharge in inland rivers/coastal areas, onshore discharge pipelines for small cutter suction dredgers, high-corrosion and low-pressure (≤0.6 MPa) conditionsAdvantages: smooth inner wall reduces sediment deposition and flow resistance; light and flexible, fast assembly without weldingLimitations: weak pressure capacity (max ≤1.0 MPa), poor rigidity, not suitable for high-pressure, long-distance or offshore main pipelines
2. Fiberglass Reinforced Plastic Pipe (FRP Pipe)
Core characteristics: corrosion-resistant, light weight, smooth inner wall without scaling, good insulationApplication scenarios: onshore fixed discharge in highly corrosive seawater, short-distance shore pipelines, gentle conditions without external impactAdvantages: acid and alkali resistant, long service life in seawater and polluted water; high conveying efficiency, no scalingLimitations: poor impact resistance, high brittleness, easy damage from waves and dragging, unsuitable for complex on-water or submarine conditions.
3. Dredging Rubber Hose
Core characteristics: extremely flexible, bendable, wear-resistant, aging-resistant, adaptable to dynamic deformationApplication scenarios: stern discharge joints of dredgers, movable sections of floating pipelines, pipeline bends, connections subject to vessel movementAdvantages: bends freely with waves and vessel movement without fracture; the only suitable pipe for movable joints in dredging pipelines.

In actual operation, the steel pipe mentioned above is often used with rubber hoses to solve pipeline turning and flexible layout.Limitations: high price (3–5 times that of steel pipe), limited pressure capacity, cannot be used as long-distance main pipeline.

Note:

The primary application of abrasion-resistant dredging hoses is to serve as a "flexible connection."

For example, in dredging projects, a flexible connection between PE pipes requires an abrasion-resistant dredging hose. In such cases, a dredging hose is the only suitable option.

The most significant difference between the production process of an abrasion-resistant dredging hose and a steel wire reinforced hose lies in the reinforcement structure. Dredging hoses do not contain a steel wire skeleton layer. This design results in a highly flexible hose body. Both the inner and outer covers are made of high-quality, wear-resistant rubber. Although the dredging hose lacks a steel wire reinforcement layer, its body strength and pressure rating are still excellent.

Yanyang Marine reminds you: You should procure abrasion-resistant dredging hoses, not steel wire reinforced hoses.

4. Steel-Plastic Composite Pipe / Lined Plastic Steel Pipe
Core characteristics: combines high strength of steel pipe with wear and corrosion resistance of plastic; structured as steel base + lined PE/HDPE/wear-resistant plastic layerApplication scenarios: main pipelines with severe sediment wear and seawater corrosion, dredging projects requiring extremely long service lifeAdvantages: internal plastic layer greatly improves wear and corrosion resistance, extending service life by 30%–50% compared with plain steel pipe, while retaining high strength and pressure resistanceLimitations: complex production, high cost (1.5–2 times that of steel pipe), unsuitable for small and medium dredging projects,

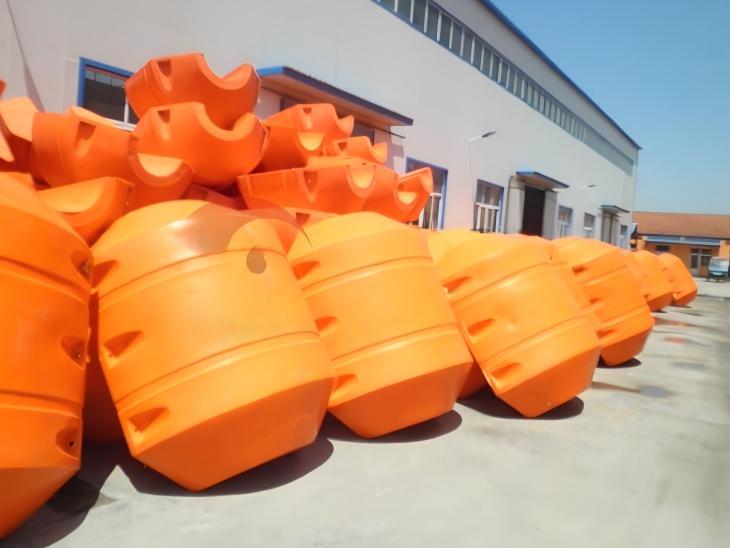

5. Floating Pipeline (Steel/HDPE Pipe + External Floats)
Core characteristics: steel/HDPE pipe as core, equipped with inflatable or float-type buoys for floating on waterApplication scenarios: long-distance water floating discharge pipelines, shallow sea floating lines, movable dredging discharge systems

Advantages: stable buoyancy adaptable to waves; movable structure suitable for site adjustment; steel core ensures strength and pressure resistance

Limitations: regular float maintenance required; float damage affects stability; higher cost than ordinary steel pipelines .
6. Ductile Iron Pipe
Core characteristics: wear-resistant, good rigidity, better impact resistance than ordinary cast iron pipeApplication scenarios: fixed onshore short-distance discharge, shallow shore fixed pipelinesAdvantages: strong wear resistance for sediment-laden onshore conditions; good rigidity, not easy to deformLimitations: heavy weight, high transportation and installation cost; relatively brittle, prone to impact damage offshore, rarely used in marine dredging.
