Classification, Technical Specifications and Operational Risks of Mud Barges

Mud Barges ▎Classification, Technical Specifications, and Operational Risks

1. Classification of Mud Barges

Mud barges are mainly used with backhoe dredgers and grab dredgers to load, transport and unload sediment, gravel and clay. They are available in self-propelled and non-self-propelled versions, and are generally sized by loading capacity, such as 3,200 m³, 2,600 m³, etc.

By structure and dumping method, they fall into four categories:

Elevator hopper barge

The hopper of the Elevator Hopper Barge (or Full-bottom Hopper Barge) is fully enclosed. Dredged material must be removed by suction via a silt blowing vessel, suction dredger or shore pumping station. This type is now rare and has been replaced by dredgers with sand blowing capability.

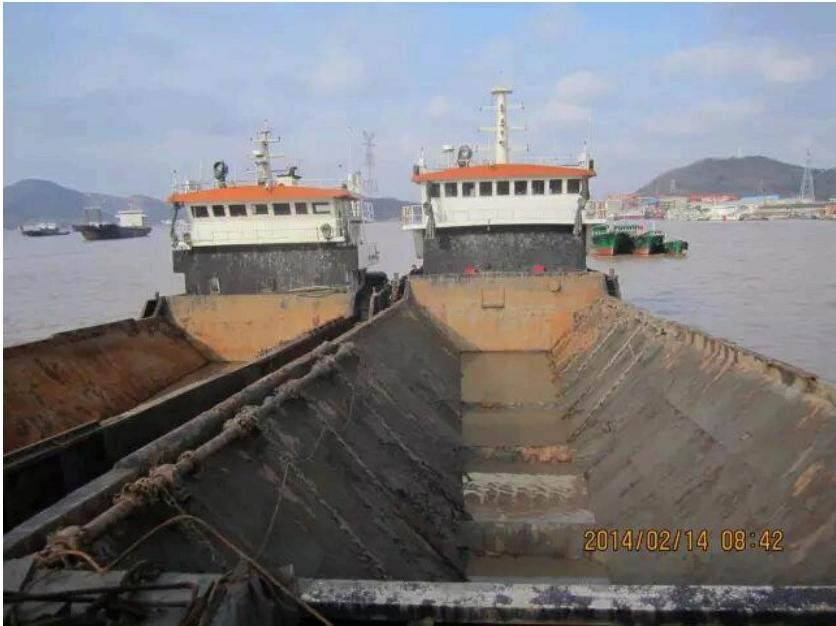

Bottom-dump Mud Barge

A self-discharging barge with movable bottom doors controlled by electric motors and hydraulic systems for automatic dumping. Similar in hull structure to closed-bottom barges, it is mostly used in shallow water with slow dumping speed.

Side-dump Mud Barge

Equipped with side doors on both sides of the hopper for automatic dumping. The midship features a triangular air chamber, suitable for shallow-water dumping.

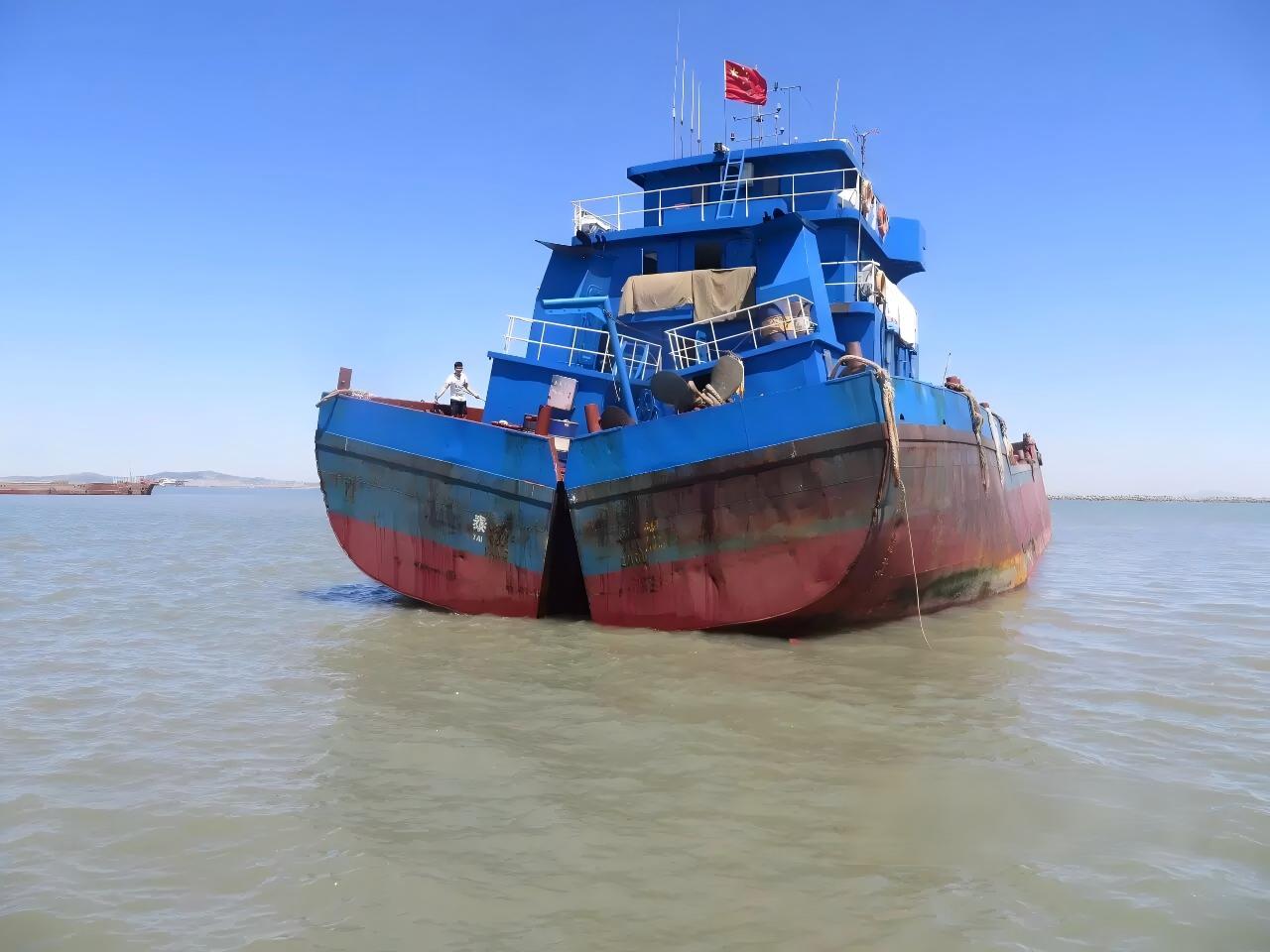

Split Hopper Barge (Split-hull Mud Barge, Two-part Mud Barge)

Composed of two symmetrical longitudinal hull halves connected by deck hinges at the fore and aft of the hopper. The hull halves rotate around hinge shafts to open and close the hopper. The doors protrude downward during dumping, enabling fast discharge — making it the preferred type for deep-water dumping.

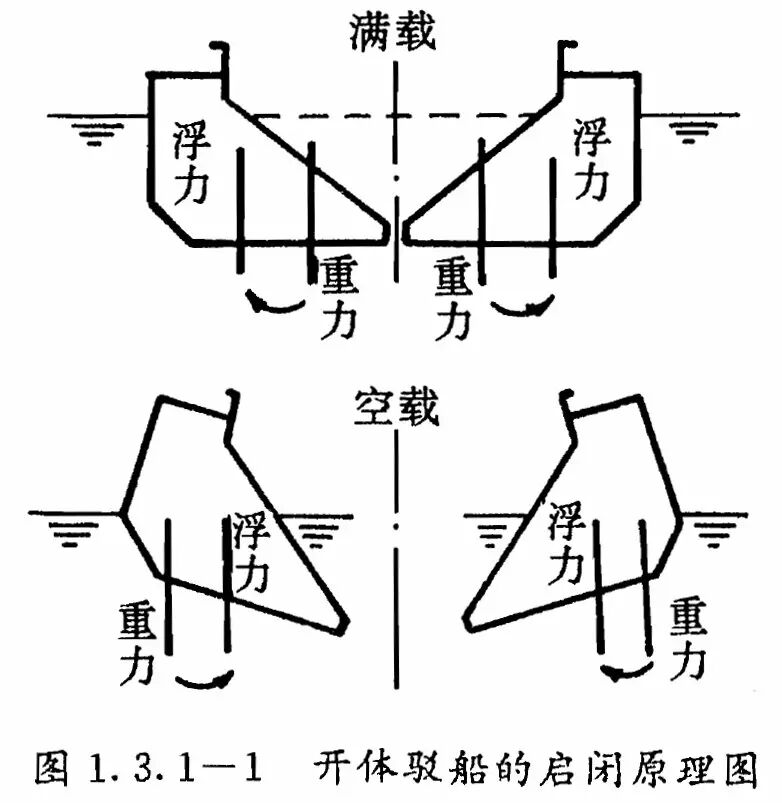

Full load: The center of gravity of sediment is inside the buoyancy center of each half-hull, creating an opening moment to open the hull with hydraulic cylinders for dumping.

Light load: The center of gravity moves outside the buoyancy center, creating a closing moment to automatically close the hull with hydraulic cylinders.

Self-propelled barges dominate in China; non-self-propelled barges with tugboats are common in some overseas regions.

Export Control Requirements (for self-propelled self-discharging mud barges):

Hopper capacity ≥ 1,000 m³

Equipped with bow blowing function and self-discharging system

Reference tariff code: 89019041

2. Technical Requirements for Mud Barges

2.1 Special Stability Requirements

Sea-going ships (domestic): In accordance with the 2020 Technical Rules for the Statutory Survey of Sea-going Ships Navigating Domestically

Chapter 6, Part 3: Special requirements for marking operating draft on barges with open hoppers and bottom opening devices.

Chapter 7, Part 4, Clause 7.3.17: Intact stability requirements for loading, transporting and dumping; sea state restrictions; stability to be verified for 5 loading conditions:

Full hopper, full fuel and supplies

Full hopper, 10% fuel and supplies

Partially loaded hopper, 10% fuel and supplies

Empty hopper (open to seawater), full fuel and supplies

Empty hopper (open to seawater), 10% fuel and supplies

Inland waterway ships: In accordance with the 2011, 2019, 2015 Amendments to Technical Rules for the Statutory Survey of Inland Waterway Ships

Chapter 4, Part 3, Section 4: Minimum freeboard requirements; identical calculation for split-hull and bottom-dump barges.

No explicit stability calculation method; sediment carriers shall comply with tanker stability rules (Chapter 8, Part 5, Section 3).

Chapter 8, Clause 8.1.1.5: Except for Class J waterways, inland barges may comply with the 2020 sea-going ship rules; Class J waterways require separate stability calculation.

2.2 Other Technical Requirements

Strength, structure, arrangement, materials, dimensions, main and auxiliary machinery, boilers, pressure vessels, electrical equipment, outfitting, shafting, piping, engine-room automation and welding are subject to China Classification Society (CCS) standards.

CCS rules, including the Rules for the Construction and Classification of Sea-going Steel Ships and Rules for the Construction of Inland Waterway Steel Ships, specify hull structure requirements for mud barges and split-hull mud barges.

3. Operational Risks of Mud Barges

Operating cycle: Loading → Transporting → Dumping. Used mainly with non-dumping dredgers; also with self-dumping dredgers for efficiency. Four major risks:

3.1 Collision During Berthing

Frequent berthing alongside dredgers raises collision risk from improper maneuvering. Anchor wires may damage rudders. Berthing time directly affects project efficiency.

3.2 Grab/excavator Impact

Improper grab/excavator operation strikes the barge, causing structural deformation and strength reduction.

Vulnerable parts:

Hopper coamings

Hopper deck

Longitudinal bulkhead deck

3.3 Stability Loss During Loading/Dumping

Poor sediment flowability causes uneven loading or discharge, leading to list and stability failure. Risks increase sharply in bad weather, overloading or improper stowage.

3.4 Opening/Closing Mechanism Failure

Split hopper barges: Hydraulic/cylinder failure prevents closing after dumping.

Bottom-dump barges: Failed door closure causes flooding.Caused by hydraulic system or motor malfunctions.

Recommended Maintenance Schedule:Regular inspection of hinge wear; routine maintenance of hydraulic motors and piping; full hydraulic system overhaul every 2 years.

Conclusion

Self-propelled split-hull mud barges are widely used in China. Driven by the four major canal projects, many new barges have been built by private enterprises. With longer dumping distances in port projects, barge capacity is trending larger, with more 3,000 m³+ split-hull barges in service.

Domestic mud barges are mainly classed by ZC or CCS and cannot be registered in jurisdictions with strict rule requirements. For details, refer to the relevant article.
