Maintenance and Repair Guide for Key Components of a Cutter Suction Dredger

A cutter suction dredger is an indispensable core equipment for various maritime and water conservancy projects such as port
maintenance, land reclamation, and river dredging. To ensure its efficient and continuous operation, standardized maintenance and timely repair of key components are crucial. This article aims to provide a detailed guide on how to scientifically maintain and restore these core components.

1. Cutter Head

1.1 Structure and Function

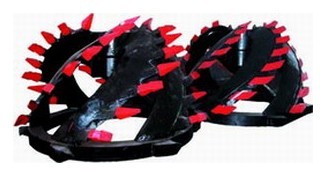

The cutter head is the front-end working component of a cutter suction dredger, primarily responsible for crushing seabed or riverbed materials. Its structure typically consists of a rotating drum with cutting teeth or blades attached. Depending on the dredged material (such as soft silt, hard clay, or even rock), the shape and size of the cutting teeth vary to adapt to different operating conditions.

1.2 Maintenance

Regular Inspection:

Visual Inspection: Be sure to conduct a visual inspection of the cutter head before and after each dredging operation. Focus on checking for signs of wear, damage, or missing cutting teeth, while also inspecting the drum for cracks or deformation that might affect rotation.

Non-destructive Testing: Utilize non-destructive testing methods like ultrasonic testing to detect internal defects in the cutter head structure, especially in stress concentration areas, to prevent potential hazards from expanding.

Lubrication Management:

Bearings and Gears: Ensure adequate lubrication of the bearings and gears within the cutter head assembly. Use high-quality lubricants suitable for marine environments and specific operating conditions, strictly enforce the lubrication schedule, and regularly check and replenish the lubricant level.

Moving Joints: If cutting teeth are mounted on movable or adjustable mechanisms, lubricate the connecting joints to ensure smooth movement and prevent seizing.

Cleaning:

After each use, accumulated sediment, debris, or abrasive particles on the cutter head must be cleaned. High-pressure water jets are recommended for flushing, paying special attention to areas around the cutting teeth and gaps between the teeth and the drum, which are prone to blockage.

1.3 Repair Measures

Cutting Teeth Replacement:

When cutting teeth are severely worn or damaged, they need to be replaced promptly. First, confirm the tooth type and size required for the specific cutter head model.

Remove the old teeth using special tools, taking care not to damage the drum or mounting structure.

When installing new teeth, ensure they are aligned and tightened securely. For teeth requiring welding or bolting, strictly follow the manufacturer's welding procedures or bolt torque specifications.

Drum Repair:

If the drum develops cracks or deformation, minor cracks can be repaired via welding technology, but correct welding materials and processes must be used to ensure the drum's structural integrity.

For significant deformation or extensive damage, the entire drum may need replacement.

Dynamic Balance Correction: After repair or replacement, the cutter head must undergo dynamic balance correction to ensure smooth rotation. Imbalance causes excessive vibration during operation, which can damage the cutter head and other ship components.

2. Suction Pipe and Ladder

2.1 Structure and Function

The suction pipe is responsible for conveying slurry (a mixture of water and dredged material) from the cutter head to the pump. The ladder supports the suction pipe and allows adjustment of height and angle to adapt to different dredging depths.

2.2 Maintenance

Pipe Integrity Inspection:

Regularly inspect the suction pipe for signs of wear, corrosion, or damage. Focus on wear on the inner surface caused by slurry flow (especially at flow direction changes) and corrosion on the outer surface in saltwater environments.

Regularly measure the wall thickness of the suction pipe using a thickness gauge. If the thickness falls below the minimum allowable value, the pipe section should be repaired or replaced promptly.

Ladder Mechanism Maintenance:

Lubricate the hinges, joints, and winch systems of the ladder regularly. These components move frequently and can seize if not properly lubricated. Use specialized lubricants capable of withstanding the dredging environment (water, sediment, temperature fluctuations).

Inspect the structural integrity of the ladder, looking for bending, cracks, or loose fasteners. The ladder must be able to support the weight of the suction pipe and withstand various external forces generated during dredging operations.

2.3 Repair Measures

Pipe Repair:

Small holes or cracks in the suction pipe can be repaired using patch welding, but the welding process must be strictly controlled to avoid further damage.

For pipe sections with extensive corrosion or wear, the affected part must be replaced. During replacement, ensure precise alignment and secure welding (or other connection methods) to maintain pipe integrity and smooth slurry flow.

Ladder Repair:

If ladder components are bent or cracked, straightening or welding repairs can be used depending on the severity of the damage.

For loose fasteners, retighten or replace them.

If the ladder structure is severely damaged, replacing the entire ladder is often more cost-effective than attempting complex repairs.

3. Suction Pump

3.1 Structure and Function

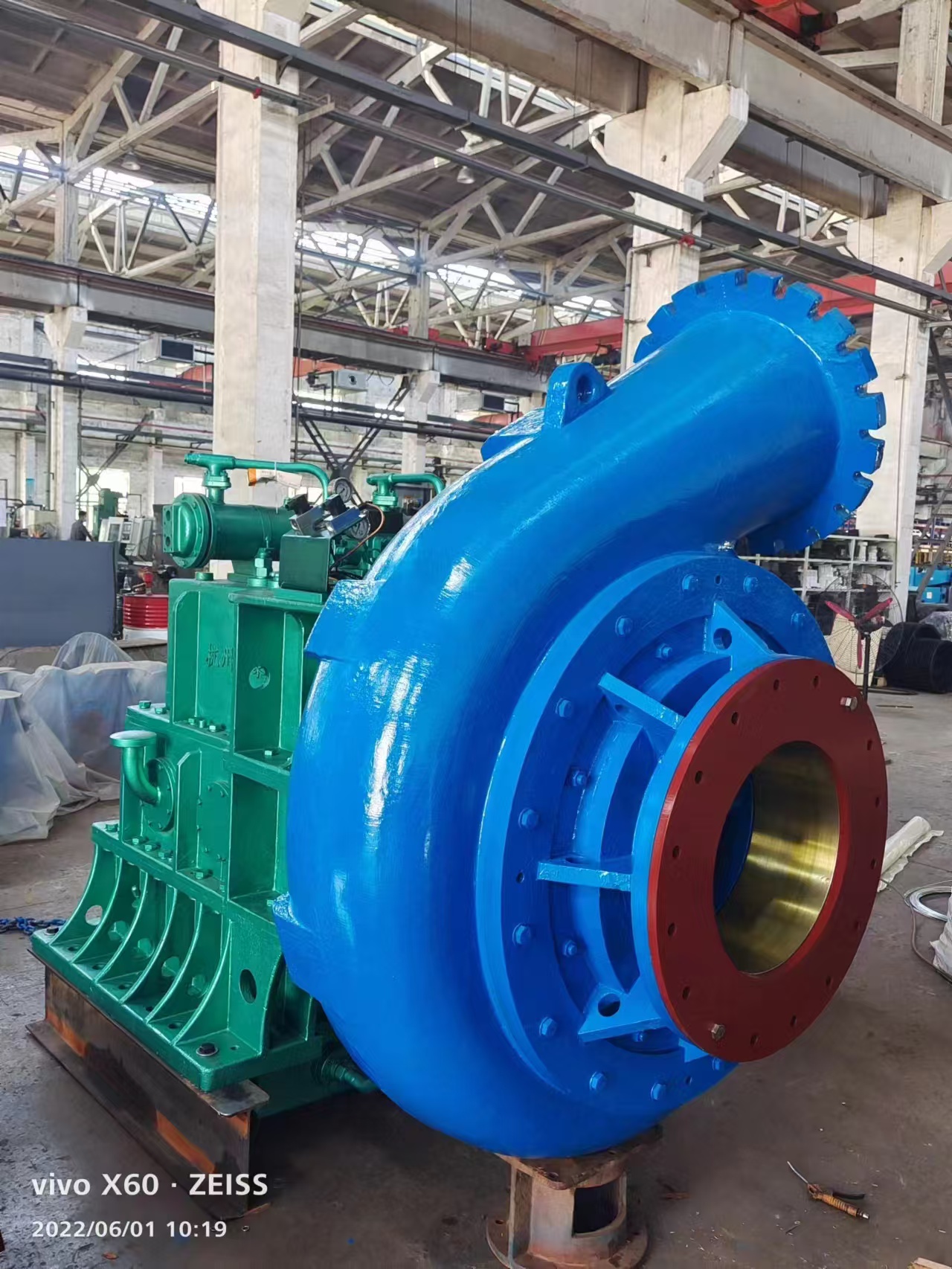

The suction pump is the "heart" of the cutter suction dredger, responsible for creating a vacuum to draw slurry into the suction pipe and pump it to the discharge point. Its typical structure includes a centrifugal pump, impellers, casings, and sealing devices.

3.2 Maintenance

Impeller and Casing Inspection:

Regularly inspect the impellers for signs of wear, erosion, or damage. Since impellers are in direct contact with abrasive slurry, they wear out easily. Also, check for cavitation damage caused by improper flow conditions.

Inspect the pump casing, paying attention to wear in the impeller rotation area, and look for any cracks or deformation that might affect pump performance.

Seal Maintenance:

Devices such as mechanical seals or packing seals are crucial for preventing leakage. Regularly check the wear and leakage of seals.

For mechanical seals, inspect the seal faces for damage or contamination; for packing seals, ensure the packing is properly adjusted and not excessively worn.

Lubricate the seals as recommended by the manufacturer. Some seals require a constant supply of lubricating fluid, which should be monitored and maintained at the correct level.

Vibration and Temperature Monitoring:

Install vibration and temperature sensors to monitor the operating status of the suction pump. Excessive vibration may indicate impeller imbalance, misalignment, or bearing failure; abnormal temperature rise may be a sign of overheating caused by insufficient lubrication, blockages, or worn components.

3.3 Repair Measures

Impeller Repair or Replacement:

If impellers are worn but within repairable limits, they can be restored using techniques like hardfacing or coating to recover thickness and functionality.

If impellers are severely damaged or worn beyond limits, they must be replaced. New impellers must undergo strict dynamic balance correction and be precisely aligned with the pump shaft to avoid vibration issues.

Casing Repair:

Minor cracks in the pump casing can be repaired by welding, but the operation must be cautious to prevent casing warping or damage to internal components.

For larger cracks or extensive damage, the casing may need replacement.

Seal Replacement:

Seals should be replaced immediately upon signs of wear or leakage. The replacement process must strictly follow the manufacturer's instructions, as it often involves precise alignment and component handling.

After replacement, a pressure test must be conducted to ensure no leakage and normal pump operation.

4. Spuds and Winches

4.1 Structure and Function

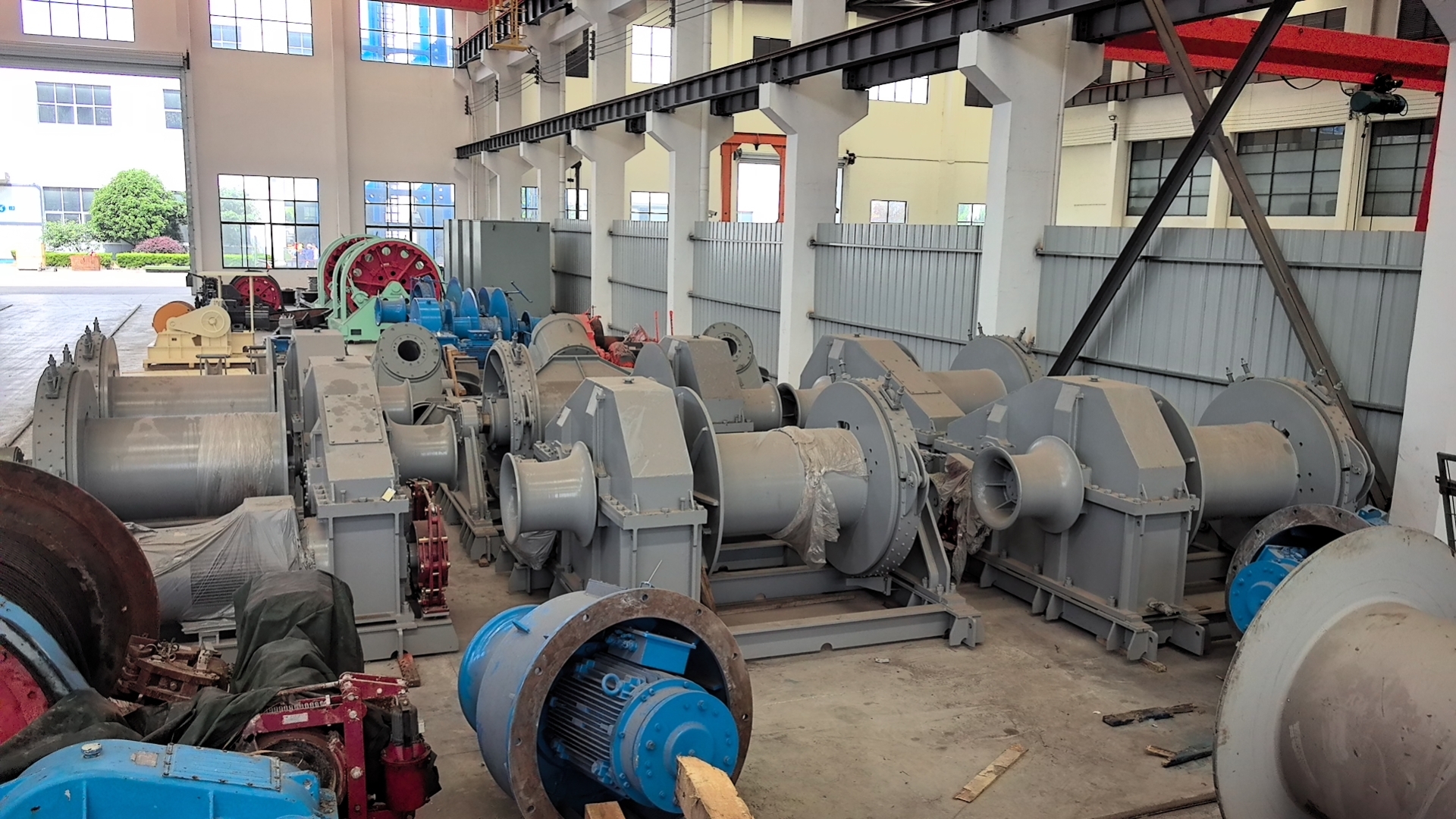

Spuds are vertical poles used to anchor the cutter suction dredger during operation, providing stability. Winches are used to control the movement and positioning of the spuds, as well as other components like the ladder and suction pipe.

4.2 Maintenance

Spud Inspection:

Regularly inspect the spuds for signs of bending, cracking, or corrosion. Spuds withstand tremendous forces during dredging, so any structural damage affects vessel stability.

If spud shoes are equipped, check their wear. As spud shoes contact the seabed directly, they wear down over time, reducing their stabilizing effectiveness.

Winch Maintenance:

Inspect the wear on winch drums, especially areas where wire ropes are wound.

Check wire ropes for broken wires, corrosion, or excessive wear, and replace damaged ropes immediately.

Lubricate the gears, bearings, and other moving parts of the winch regularly. Given the winch's high-load, high-frequency usage, proper lubrication is key to smooth operation.

4.3 Repair Measures

Spud Repair:

Slightly bent spuds can be straightened using appropriate tools and techniques, but care must be taken to avoid material overstress.

For cracks, welding repair can be used, but the structural integrity of the spud must be ensured after repair.

Worn-out spud shoes should be replaced with new ones matching the original design and specifications.

Winch Repair:

Damaged winch drums can be repaired using welding or other metalworking techniques depending on the nature of the damage. If the damage is extensive, the winch drum may need replacement.

When replacing wire ropes, cables meeting strength and durability specifications must be used and correctly spooled onto the drums to ensure smooth operation.

5. Control System

5.1 Structure and Function

The control system of a cutter suction dredger includes various sensors, controllers, and software responsible for monitoring and regulating vessel operation. Its main functions include adjusting cutter head speed, controlling the suction pump, and positioning the spuds and ladder.

5.2 Maintenance

Sensor Calibration:

Regularly calibrate sensors in the control system, such as depth sensors, pressure sensors, and flow sensors. Accurate readings are vital for correct vessel operation and control.

Check sensors for damage or contamination and clean them when necessary to ensure accurate readings.

Controller and Software Updates:

Keep controllers and control software up-to-date. Firmware or software updates released by manufacturers usually enhance system performance, reliability, and functionality.

Regularly back up control system data to prevent data loss in case of system failures.

5.3 Repair Measures

Sensor Replacement:

When sensors fail or provide inaccurate readings, replace them with new sensors compatible with the control system, strictly following the manufacturer's instructions for installation and calibration.

Controller and Software Troubleshooting:

If issues arise with controllers or software, start with basic troubleshooting steps such as checking power supplies, connections, and error logs.

If problems persist, contact the manufacturer's technical support or qualified technicians.

In some cases, trained personnel may need to reprogram or reconfigure controllers and software to resolve issues; do not operate randomly to avoid causing more problems.

Yanyang marine, relying on over 30 years of experience in numerous large-scale projects, can provide professional maintenance and repair teams to serve customers.
