Hydraulic Open-Closing For Split Hopper Barge

The hydraulic opening and closing system is the core working mechanism of a Split Hopper Barge, designed to rapidly and reliably open/close the bottom hopper doors (i.e., "split") in designated waters for efficient discharge of sediment or dredged material. This system must operate stably under high loads and in highly corrosive marine environments, demanding extremely high standards of safety and reliability.

Components & Functional Description

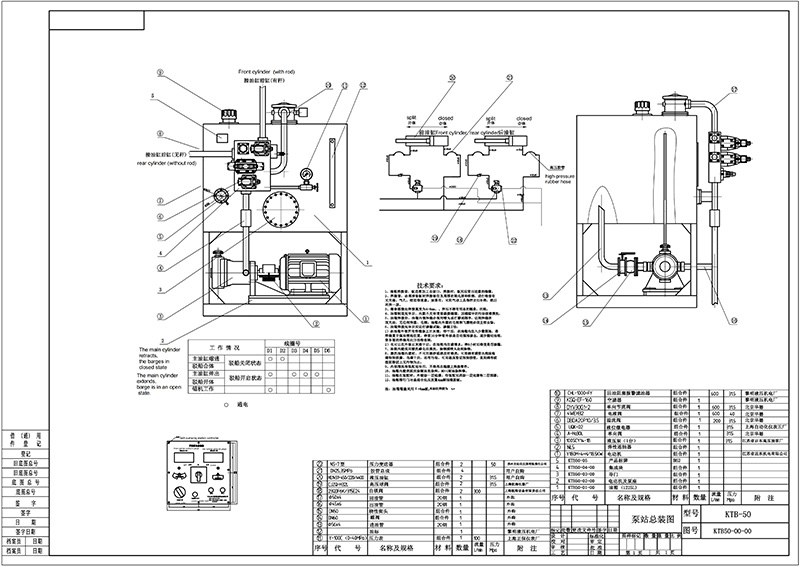

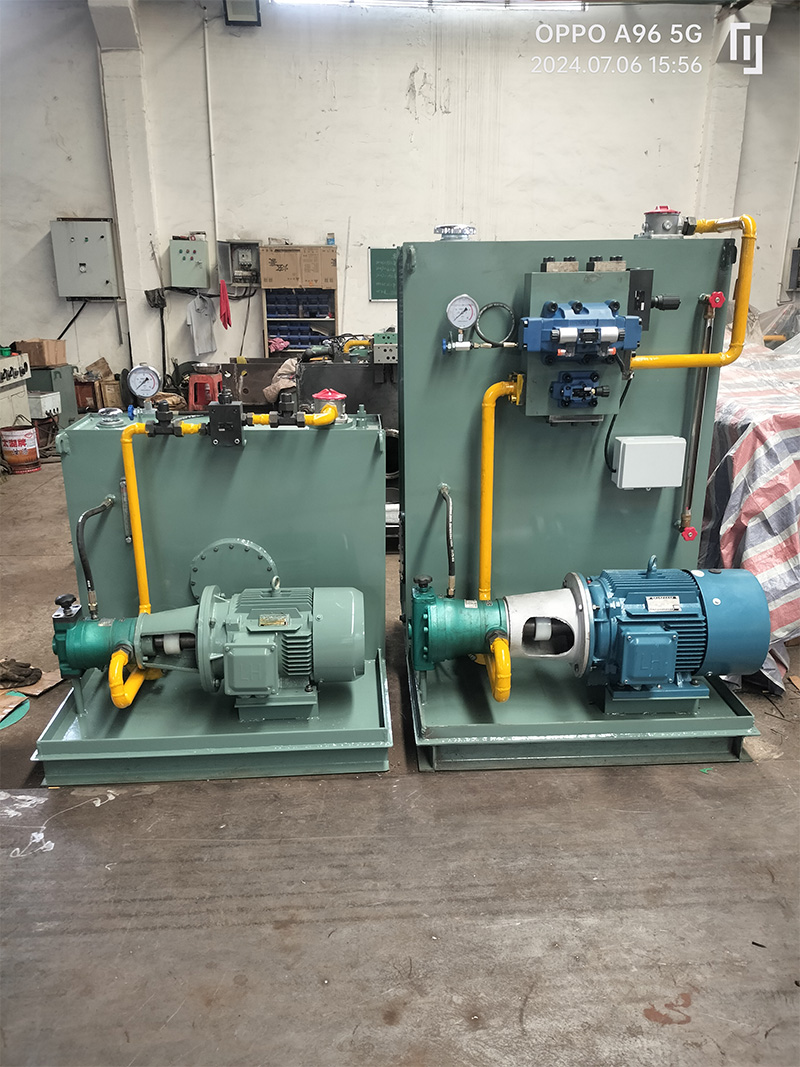

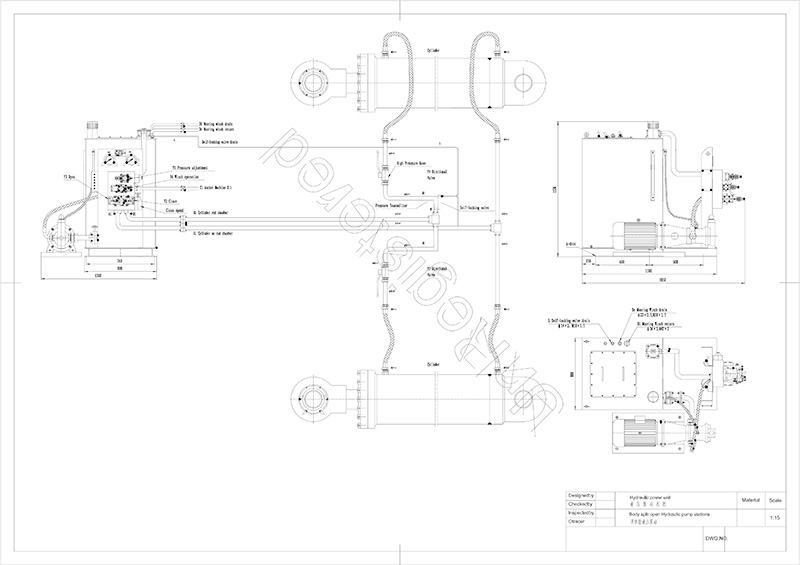

1   Hydraulic Power Unit (HPU)

Provides the pressurized hydraulic oil source for the system, typically including:

1.1 Electric or diesel-driven hydraulic pumps

1.2 Oil tank (with filtration, cooling, and level monitoring)

1.3 Pressure control valves (relief valves, pressure reducing valves, etc.)

2    Hydraulic Cylinders

The actuators that directly push or pull the hopper doors to open/close.

2.1 Usually double-acting cylinders (capable of bidirectional force)

2.2 Mounted on both sides of the hull or near the bottom hinges

2.3 Designed with anti-corrosion features (e.g., chrome-plated or stainless steel piston rods) to resist seawater erosion

3  Directional Control Valves

Controls the flow direction of hydraulic oil, determining the extension/retraction of the cylinders.

3.1  Mostly electro-hydraulic directional valves (solenoid-controlled)

3.2  May integrate manual emergency operation functions

4  Hydraulic Piping & FittingsTransmits high-pressure hydraulic oil and connects all components.

4.1  Uses corrosion-resistant steel pipes or high-pressure hoses

4.2  Isolation valves installed at key points for ease of maintenance

5  Electrical Control System

Enables automated operation and safety interlocking:

5.1 PLC or relay control logic

5.2 Hopper door position sensors (open/closed in-position signals)

5.3 Vessel attitude monitoring (heel/trim) to prevent accidental opening under excessive inclination

5.4 Dual control panels (bridge/local)

6   Safety & Emergency Devices

6.1  Mechanical locking pins: Inserted after door closure to prevent accidental opening during navigation

6.2  Accumulators: Provide emergency power to complete one open/close cycle in case of power failure

6.3  Pressure gauges / filter clogging alarms: Monitor system status

Brief Workflow

· Preparation for Discharging: The barge arrives at the dumping ground, stabilizes, and confirms the vessel attitude meets safety criteria (e.g., heel < 2°).

· Unlocking: Mechanical locking pins are withdrawn (some systems feature hydraulic automatic unlocking).

· Opening Doors: The operator presses the "Open" button on the bridge → Electrical signal triggers the directional valve → Hydraulic oil enters the cylinder's cap-end → Piston rod extends → Pushes the doors to rotate open around hinges (typically 10°~30°) → Sediment slides out by gravity.

· Closing Doors: After discharge, reverse operation → Hydraulic oil enters the cylinder's rod-end → Piston rod retracts → Doors close → Locking pins are inserted → System pressurizes for sealing.

· Return Voyage: Depart the dumping ground only after ensuring the doors are fully locked.

Technical Features

· High Reliability: Redundant design for critical components to prevent loss of door control due to single-point failure.

· Corrosion Resistance: All exposed metal parts receive marine-grade anti-corrosion treatment (e.g., hot-dip galvanizing, epoxy coating).

· Strong Environmental Adaptability: Operates normally in temperatures from -10°C to +50°C and in high-salt-mist environments.

· Easy Operation: Supports dual-mode control (remote from bridge/local on deck).

· Safety Interlocks: Doors cannot open unless unlocked; navigation is prohibited unless doors are fully closed and locked.

Typical Applications

· Long-distance transport of dredged material in cooperation with trailing suction hopper dredgers or grab dredgers

· Offshore mud dumping operations (for environmentally regulated precise discharge)

· Intermediate unloading in land reclamation projects

Note: Modern large split hopper barges are often equipped with a double-split structure . The hydraulic system must ensure synchronized movement of cylinders on both sides to avoid structural damage from uneven loading.

Currently, as the size of SHB (Split Hopper Barge) continues to increase, the number of hydraulic cylinders has been increased to four per vessel (two at the bow and two at the stern).

In summary, the hydraulic opening and closing system of a Split Hopper Barge is a specialized marine engineering hydraulic system integrating power, control, sensing, and safety functions. Its performance directly impacts the vessel's operational efficiency and navigation safety.

Yanyang Marine had exported many units of cylinders, hydraulic pump stations for split hopper barges to shipyards, owners . If you are manufacturing new Split Hopper Barges or replacing hydraulic cylinders and power units for existing ones, we can provide technical support and supply products compatible with your Split Hopper Barges.
