Grab Dredger Selection Guide: Clamshell vs. Orange Peel for Different Soil Types

Abstract | Yanyang Marine

Grab dredgers are versatile mechanical dredging tools widely used for excavating various soil types, particularly in confined spaces like harbors, docks, and canals. This guide provides a comprehensive overview of grab dredger selection, focusing on the critical choice between clamshell grabs and orange peel grabs. We delve into their distinct operational principles, suitability for different soil conditions (from soft mud to hard clay and rock), and key performance indicators. Understanding these nuances is crucial for optimizing dredging efficiency and project costs. Yanyang Marine offers a range of customizable grab dredgers, designed to meet diverse project demands with superior performance and reliability.

1. Introduction to Grab Dredgers

Grab dredgers, often mounted on pontoons or barges, operate by lowering a grab bucket to the seabed, closing it to scoop up material, and then lifting and discharging the dredged spoil into barges or onto land. Their precision and ability to work in areas inaccessible to cutter suction or trailing suction hopper dredgers make them indispensable for specific projects. The efficiency of a grab dredger largely depends on selecting the correct type of grab for the prevailing soil conditions.

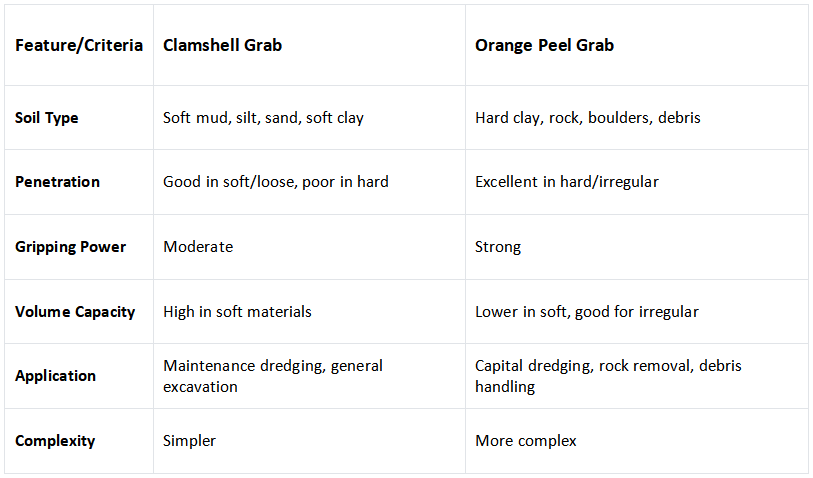

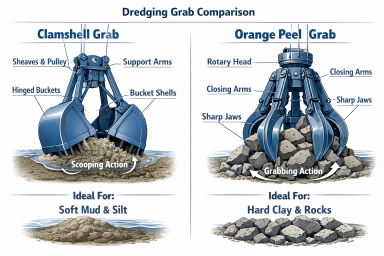

2. Types of Grabs: Clamshell vs. Orange Peel

The two primary types of grabs used in dredging are clamshell grabs and orange peel grabs, each designed for specific applications.

2.1 Clamshell Grabs

Structure: Consist of two hinged shells that close together like a clam. They are typically heavier and have a larger opening area.

Operational Principle: The weight of the grab and the closing force of the shells penetrate the soil, scooping it up.

Suitable Soil Types: Highly effective for:

Soft to Medium Cohesive Soils: Such as mud, silt, and soft clay.

Loose Granular Materials: Sand and gravel.

General Maintenance Dredging: Ideal for clearing accumulated sediments in ports and waterways.

Advantages: High digging efficiency in soft materials, good for large volumes, relatively simple design.

Disadvantages: Less effective in very hard or rocky soils, can lose material if not fully closed in very loose conditions.

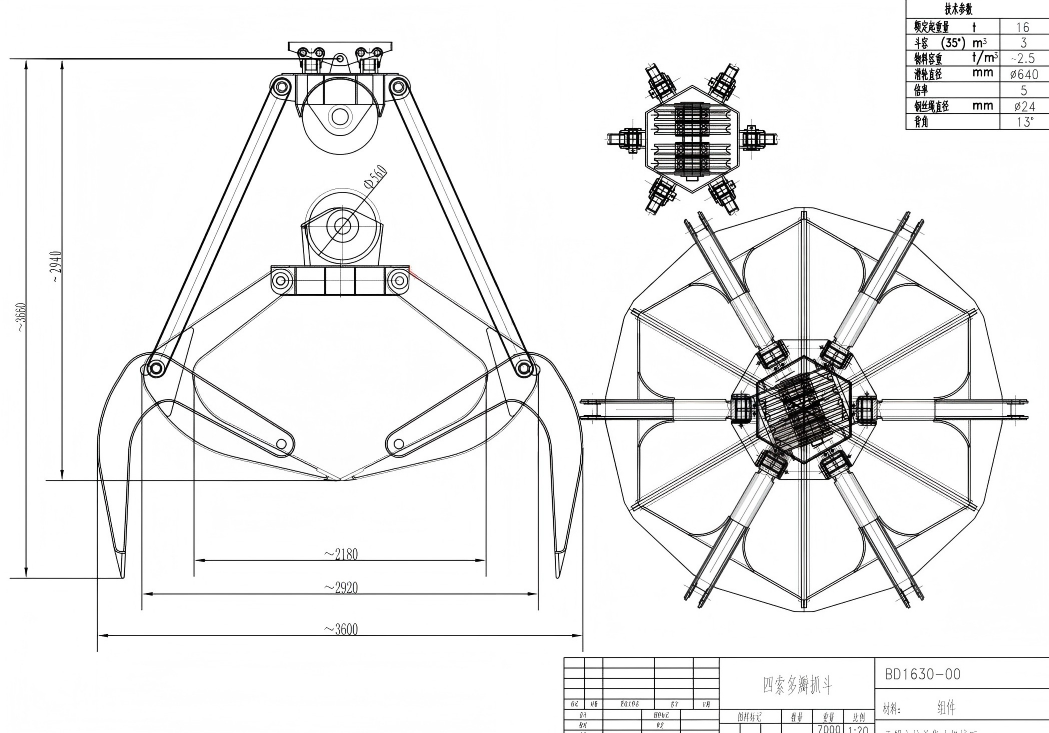

2.2 Orange Peel Grabs

Structure: Composed of multiple (typically 3 to 8) curved segments (jaws) that close inwards, resembling an orange peel. They are generally more robust.

Operational Principle: The sharp edges of the jaws penetrate and grip irregular or hard materials, providing a strong closing force.

Suitable Soil Types: Best suited for:

Hard Cohesive Soils: Stiff clay.

Rocky Materials: Boulders, blasted rock, broken concrete.

Irregular Materials: Debris, logs, sunken objects.

Capital Dredging in Challenging Grounds: Projects involving rock excavation or removal of obstructions.

Advantages: Excellent penetration and gripping power in hard and irregular materials, minimizes material loss with irregular shapes.

Disadvantages: Lower volume capacity compared to clamshells for soft materials, more complex mechanical structure.

3. Key Selection Criteria

When selecting a grab dredger, consider the following:

Soil Conditions: The most critical factor. Conduct thorough geotechnical surveys to determine soil type, density, and cohesiveness.

Dredging Depth: Ensure the grab and crane system can reach the required depth.

Production Rate: Match the grab volume and cycle time to the project's required output.

Discharge Method: Consider whether the spoil will be loaded into barges (requiring a wider opening) or directly onto land.

Environmental Considerations: Minimize turbidity and material spillage, especially in sensitive areas.

Maintenance and Durability: Evaluate the grab's construction, wear parts, and ease of maintenance.

4. Yanyang Marine's Customizable Grab Dredgers

Yanyang Marine specializes in designing and manufacturing robust grab dredgers equipped with both clamshell and orange peel options, tailored to your specific project needs. Our dredgers feature:

High-Strength Steel Construction: Ensuring durability and longevity in harsh marine environments.

Optimized Hydraulic Systems: Providing powerful closing forces and efficient operation.

Versatile Crane Systems: Capable of handling various grab sizes and types.

Customizable Designs: From pontoon-mounted to self-propelled configurations, we can adapt to any operational requirement.

Expert Consultation: Our engineers provide comprehensive guidance on grab selection and dredging methodology to maximize your project's success.

Conclusion

Choosing the right grab for your dredger is paramount for achieving optimal efficiency and cost-effectiveness in dredging operations. While clamshell grabs excel in soft to medium cohesive soils, orange peel grabs are indispensable for challenging conditions involving hard clay, rock, and debris. By carefully assessing soil conditions and project requirements, and partnering with experienced manufacturers like Yanyang Marine, you can ensure your grab dredger delivers superior performance for any task.
