Fault Diagnosis and Maintenance Solutions for Hydraulic Motors of Engineering Vessels
Engineering Vessels normally refer to Cutter Suction Dredger, Trailing Suction Hopper Dredger, Split Hopper Barge, Piling Vessel , Flaoting Crane in this article.

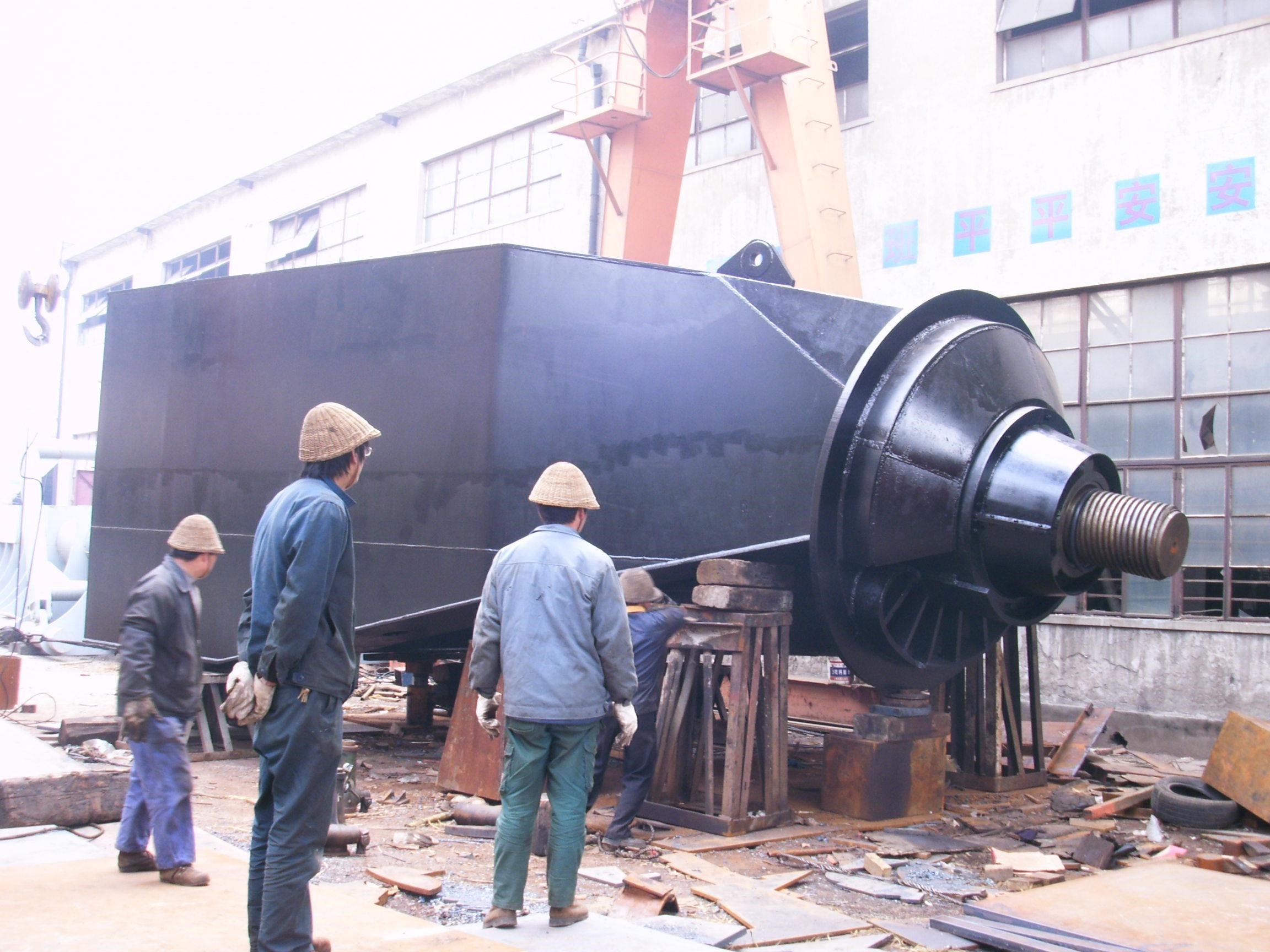

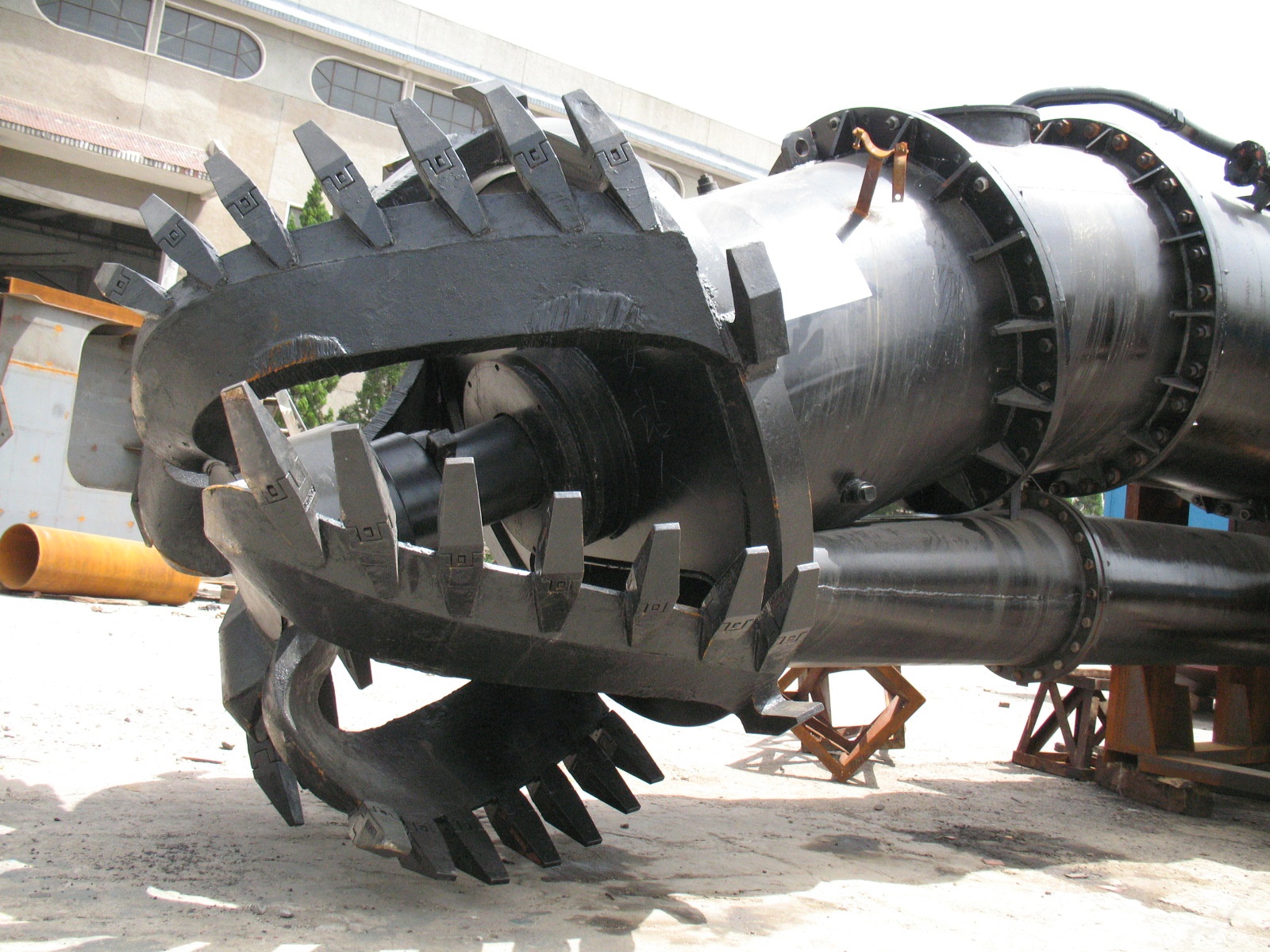

Abstract: Hydraulic motors serve as core actuators for various engineering vessels: used for cutter, ladder and spud drive in cutter suction dredgers; drag head, door and winch control in trailing suction hopper dredgers; hull opening/closing in split hopper barges; pile hammer, frame and gripper drive in pile drivers; main/auxiliary hook, luffing and slewing in crane vessels; and azimuthing thrusters and towing winches in tugs. They meet heavy-duty, speed regulation, positioning and safety locking needs, being key to efficient and reliable operation.
Engineering vessels operate under long-term high-load, salt-spray, hot and humid conditions. Performance degradation and sudden failures of hydraulic motors are characterized by high concealment and great harm.
Based on the operating environment of hydraulic systems on engineering vessels, the construction team of Yanyang Marine has established an integrated fault diagnosis method for engineering vessel hydraulic motors starting from structural principles and common faults, adopting pressure-flow characteristic diagnosis, volumetric efficiency testing, oil monitoring, and operation trend detection. Data recording, trend analysis, and edge monitoring are added to traditional empirical inspection, improving the accuracy of identifying faults such as internal leakage, port plate wear, and spool jamming. Component replacement is proposed, with the complete scheme including flow pair repair, system commissioning, and preventive maintenance.
The results show that the comprehensive diagnosis method can effectively reduce the failure rate of hydraulic motors, extend their service life, and is suitable for popularization and application on engineering vessels.
Hydraulic motors are widely used in the main operating systems of engineering vessels. Limited offshore maintenance conditions and spare parts supply significantly affected by sea conditions make the maintenance and management of hydraulic motors more difficult. Especially with the precise internal structure of hydraulic motors, once wear or fit clearance changes occur, problems such as internal leakage, efficiency reduction, increased vibration, and excessive temperature rise will gradually accumulate, significantly affecting equipment operating capacity. Therefore, it is necessary to systematically study the structural characteristics, fault types, diagnosis methods, and maintenance strategies of hydraulic motors for engineering vessels, providing operable technical solutions for high-reliability operation under high-intensity continuous operation.
Hydraulic motors for engineering vessels vary in performance due to different operating tasks and load requirements. Gear motors feature simple structure, low cost, and pollution resistance, mostly used in winches, deck auxiliary machinery, cleaning pump drives, and other occasions with low torque and stability requirements. Vane motors offer smooth torque output, low noise, and good speed controllability, commonly applied in slewing systems, hatch cover devices, and medium-pressure auxiliary mechanisms; however, vanes are sensitive to oil contamination, requiring stricter filtration protection in sediment conditions. Piston motors are the most critical power output components on engineering vessels, applied in cutter drive, draghead pump slewing, thruster pitch control, spud lifting, large winches, etc. Among them, axial piston motors are the mainstream due to compact structure, high volumetric efficiency, and wide speed regulation range. Radial piston motors, with ultra-high starting torque and low-speed stability, play an irreplaceable role in direct-drive devices under heavy-load, low-speed, and shock conditions.
The essence of hydraulic motors is converting hydraulic energy into continuous mechanical rotational energy by liquid pressure acting on core components such as pistons, vanes, or gears. In axial piston motors, pistons are evenly distributed circumferentially in the cylinder block, and the swash plate provides an inclination angle, enabling pistons to reciprocate under high-pressure oil. Reciprocation is converted into drive shaft rotation via slippers and porting mechanisms. The switching between high and low-pressure chambers is controlled by the port plate. Wear of the port plate or piston assembly causes uneven oil distribution and intensified pressure pulsation, leading to unstable motor output. Radial piston motors feature radially arranged pistons generating torque via an internal curve, with high starting torque suitable for heavy-load conditions of engineering vessels.
Hydraulic motor performance is determined by total efficiency, starting torque, speed control performance, low-speed stability, and pollution resistance. Volumetric efficiency reflects internal leakage, a key indicator for evaluating motor wear; mechanical efficiency is directly related to friction pair wear and lubrication. Low-speed stability is critical for engineering vessels, as cutter slewing or drag suction pipe adjustment requires low-speed and gentle control. Crawling severely affects operating accuracy. Impact resistance, oil temperature rise control, and stability in high-pollution environments are also performance indicators.
Common mechanical faults include piston wear, slipper spalling, bearing damage, and seal failure. Pistons and cylinder bores are high-pressure, high-speed friction pairs requiring high oil cleanliness. Sediment intrusion causes piston scoring and increased clearance, raising internal leakage and reducing efficiency. Slippers and swash plates, under long-term lateral force, suffer scoring and surface fatigue spalling due to insufficient lubrication or severe oil contamination, enlarging friction pair clearance. Bearings, as main supporting components, are prone to pitting, cracking, or cage deformation under heavy load shocks; elevated vibration is a precursor to bearing failure. Seals age, harden, and crack in salt spray, sediment, and high temperatures, increasing external leakage, wasting oil, and impairing internal lubrication.
Hydraulic system faults mainly include insufficient pressure, unstable pressure, severe leakage, and valve spool jamming. Insufficient pressure usually stems from upstream issues (severely worn hydraulic pump, low relief valve setting, or oil blockage) rather than motor faults, but directly affects output and is easily misjudged as motor degradation. Pressure fluctuation is caused by rapid load changes, unstable spool action, or high air content in oil. Typical internal leakage: low no-load speed, large load drop, failure to output rated torque under high pressure. External leakage is obvious, mostly at shaft seals, end cover seals, and joints; shutdown is required for large leakage.
Thermal faults are characterized by rising oil temperature, thinning oil, and accelerated internal wear, caused by high pressure loss, long-term heavy load, energy loss from high internal leakage, clogged coolers, or failed water pumps/fans. Excessively high oil temperature destroys lubricating films, accelerates seal aging, and shortens motor life. Oil temperature easily exceeds the warning value in summer; load adjustment or enhanced cooling is required promptly.
Abnormal vibration and noise are key indicators of hydraulic motor health, caused by mechanical wear, bearing damage, port plate eccentric wear, uneven piston action, cavitation, or oil pulsation. Cavitation produces sharp noise, while bearing damage causes low-frequency periodic roaring. Increased vibration under high load indicates severe friction pair wear or poor shaft alignment, requiring vibration spectrum analysis.

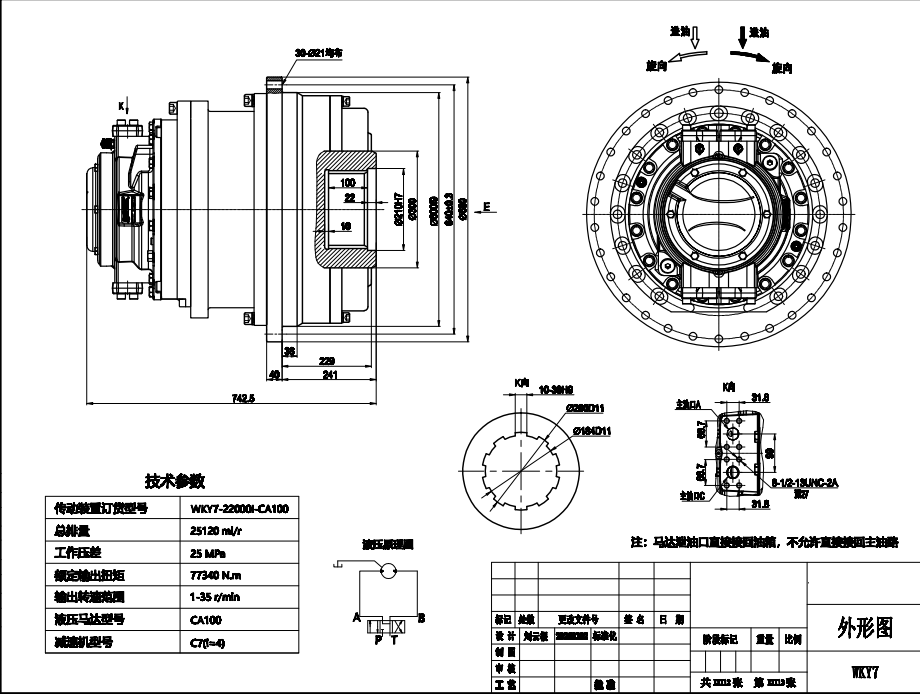

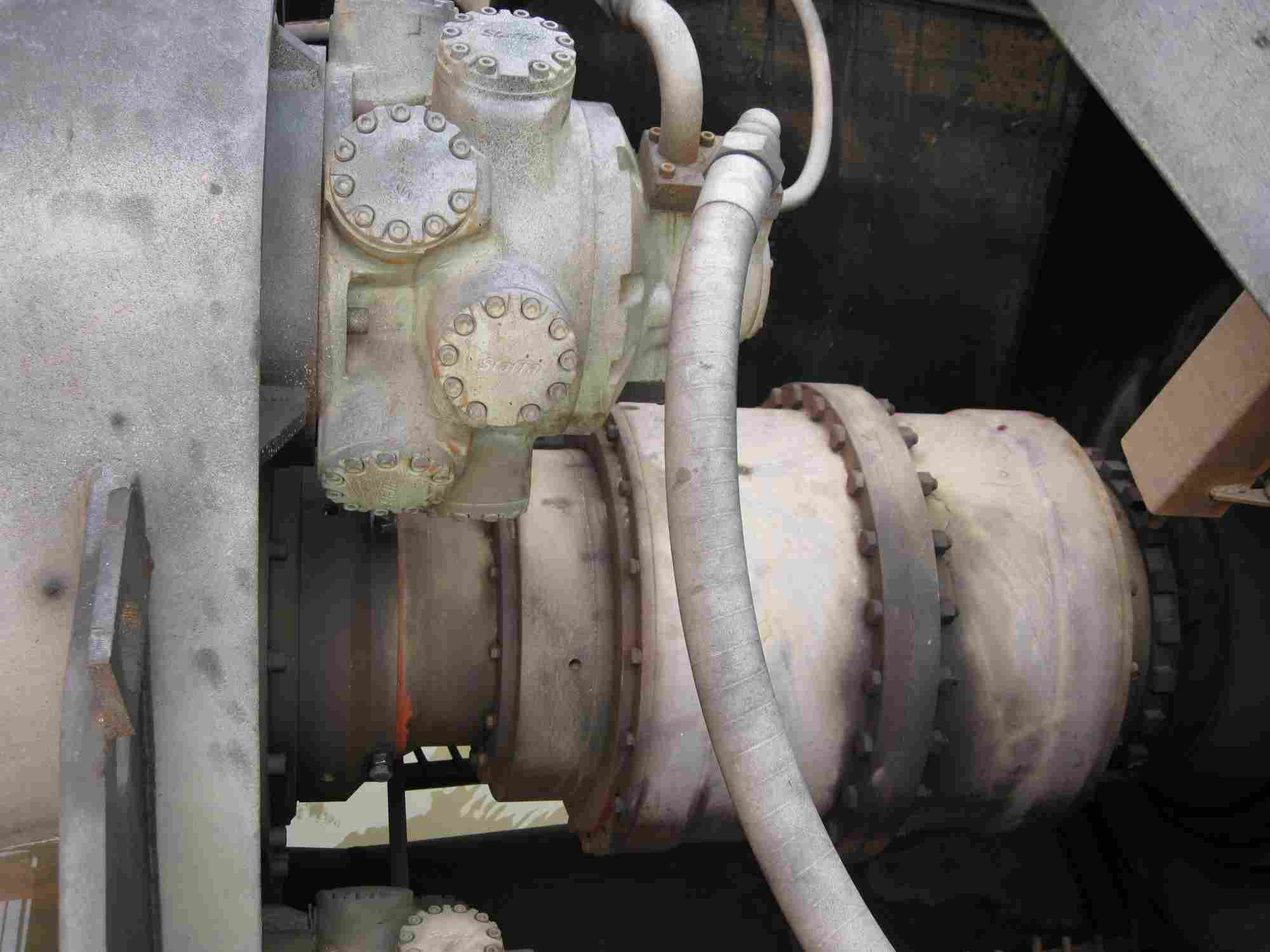

After 2,000 hours of continuous operation, the cutter slewing motor of a large cutter suction dredger suffered reduced output torque, rapid temperature rise, and obvious vibration. Oil testing showed excessive metal particles (significantly higher iron and copper content); vibration spectrum had abnormal peaks at 1× and 2× rotational frequency; local hot spots existed in the return oil area. Comprehensive analysis revealed severe wear of piston and port plate pairs and increased internal leakage, drastically reducing volumetric efficiency. Disassembly found piston scoring and swash plate scratches. This case proves that inadequate oil filtration and monitoring in high-sediment environments greatly shorten motor life.
Daily inspection is the most direct and timely method. Monitor changes in pressure, temperature, vibration, noise, and external leakage during operation. Normal hydraulic oil temperature: 45–65°C; check cooler and oil viscosity grade if exceeding 75°C. Slow start with metal friction noise indicates insufficient piston lubrication or air in oil. Increased pressure fluctuation under load change suggests poor spool action or porting jamming. Abnormal housing heating results from reduced heat dissipation efficiency.
Pressure-flow characteristics intuitively reflect hydraulic pump performance, widely used for on-site system condition judgment. Reduced speed at specified pressure indicates increased internal leakage or severe wear of key friction pairs (piston/port plate), lowering volumetric efficiency. Failure to increase speed under high pressure may result from increased load resistance, over-high relief valve setting, actuator jamming, or oil blockage. Transient pulses relate to poor spool response, contaminated control orifices, or main spool jamming; sawtooth pressure fluctuation indicates high air content, poor suction, or mild cavitation. Comparing on-site characteristics with baseline data analyzes efficiency degradation and wear stages, requiring only portable pressure gauges, flowmeters, and pump control system data.
Volumetric efficiency directly reflects internal leakage and clearance changes, the main basis for motor evaluation. On-site maintenance threshold: ~80%. Gradual efficiency reduction is normal; sudden drop requires checking piston scoring, abnormal port clearance, or seal aging. Results guide piston assembly replacement or port plate repair, avoiding blind disassembly and improving maintenance accuracy.
Oil monitoring is highly predictive, judging oil deterioration and internal wear via composition. Water content >0.05% requires attention; ≥0.1% indicates possible water intrusion, requiring immediate troubleshooting. Oil cleanliness: ISO 4406: 18/16/13 or better balances reliability and maintenance costs. Ferrographic analysis identifies wear particle types: iron-based (cylinder, port plate, piston pairs); copper-based (slippers, bearings); flaky/cutting particles (hard particle intrusion or boundary lubrication failure). Viscosity changes affect oil film strength and low-temperature startup.
Focus on clean oil and sufficient cooling. Regularly test viscosity, acid value, and contamination; clean tank deposits and ensure filter patency. Maintain cooler heat transfer performance; clean if inlet-outlet temperature difference is too small. Check for oil leaks at end covers, joints, and flanges. Establish operation data records (pressure, temperature rise, vibration) to predict faults early.
Piston, slipper, and port plate pairs wear easily under long-term high pressure. Light scratches allow lapping; deep grooves or spalling require replacement. Replace bearings with increased clearance or rapid temperature rise. Overhaul includes full seal replacement and thorough cavity cleaning to meet assembly standards.
Conduct no-load test run after repair, monitoring pressure, speed pulsation, and starting stability; gradually pressurize to rated conditions, checking parameter stability, load response, and vibration. Edge terminals record temperature rise, pulsation, and leakage trends, comparing with factory data. Restore pressure-flow curves; put into use only after stable continuous load operation.
Establish condition-based maintenance using operating hours, oil contamination, vibration RMS, and efficiency changes. Typical fault tree: abnormal pressure → (A) insufficient output or (B) rapid temperature rise → (A1) internal leakage (check pistons); (A2) heavy load (check actuators); (B1) poor cooling (check cooler); (B2) degraded oil (replace oil/filters). Create equipment archives and life curves to predict maintenance windows. Stock wearing parts for high-intensity vessels. Combine trend analysis with intelligent judgment to improve reliability.
Hydraulic motors are critical power components for engineering vessels in harsh environments; their stability affects equipment availability and project progress. This paper analyzes structural principles, typical faults, diagnosis methods, and maintenance strategies, proposing a comprehensive method based on pressure-flow characteristics, assisted by volumetric efficiency, oil monitoring, and operation trends, with practical maintenance schemes for engineering vessels. Daily monitoring, precise diagnosis, and preventive maintenance reduce failure rates, extend service life, and improve operating efficiency. Future integration with digital monitoring systems will enable intelligent diagnosis and remote O&M, enhancing the reliability of complex offshore engineering equipment.
