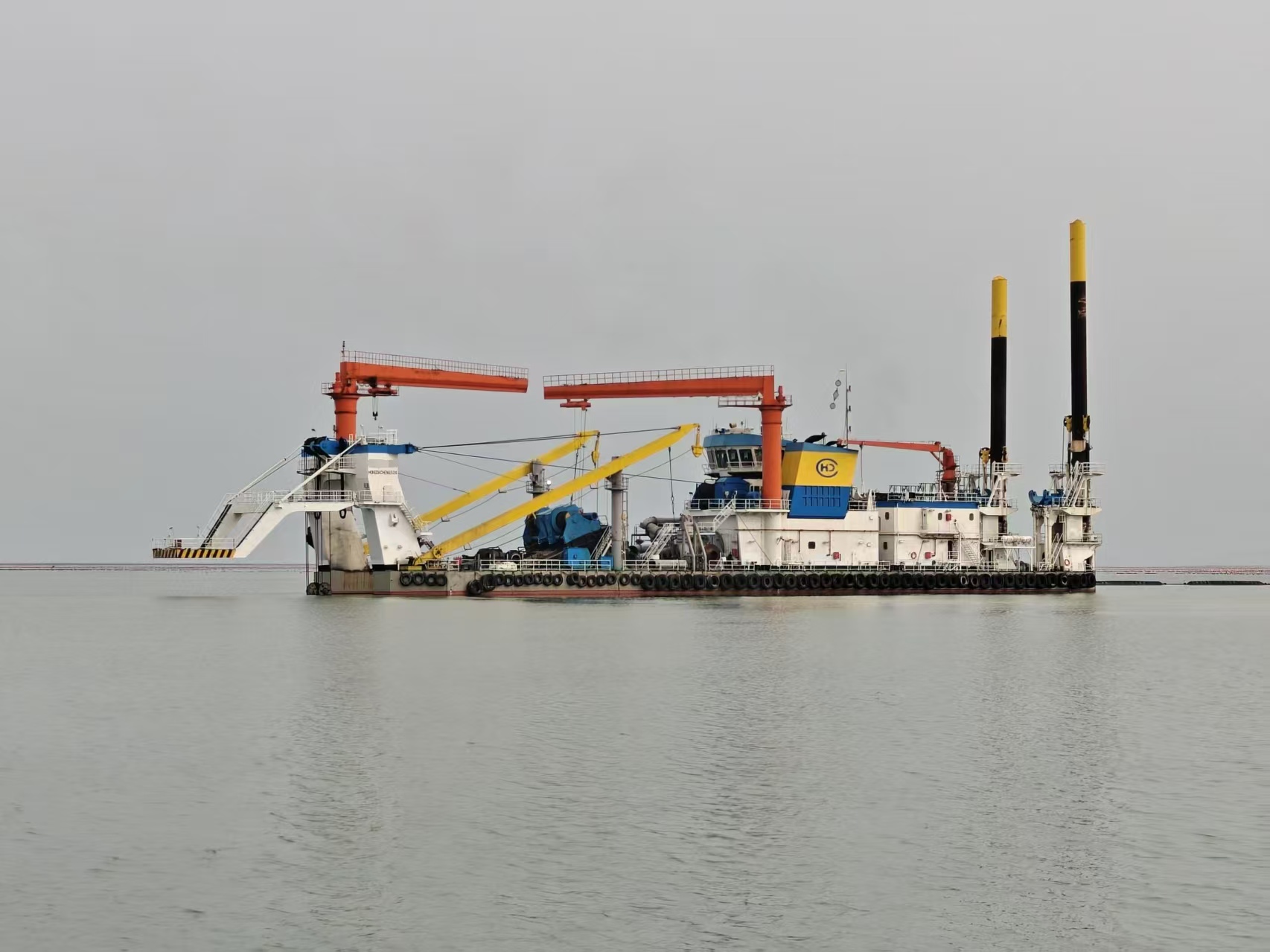

Application Scenarios, Typical Construction and Electric Cutter Rock Dredging Technology of Cutter Suction Dredger (CSD)

1 Application Scenarios of Cutter Suction Dredger

1.1 Port and Waterway Maintenance

Core Challenge: Sedimentation caused by river runoff and tidal movements continuously reduces the navigable water depth of ports and waterways, hindering normal berthing and navigation of cargo ships.

Application: Efficiently excavate sediments such as silt, sand and clay in waterways and berth areas, maintain designed water depth of 10–25 meters with GPS-guided precise positioning to ensure smooth port operation.

Typical Case: Port of Rotterdam conducts annual maintenance dredging with cutter suction dredgers, with an annual dredging volume of 20 million cubic meters.

1.2 Land Reclamation

Core Challenge: Coastal cities urgently need new land resources to support airport, industrial zone construction and urban expansion.

Application: Pump sand and slurry from the seabed to designated areas via pipelines to lay a stable foundation for reclaimed land, with an hourly processing capacity of 500–5000 cubic meters. Sediments can be screened to ensure optimal foundation compactness and erosion resistance.

Typical Cases: Landmark projects such as Dubai Palm Island and Singapore Tuas Port adopt large-scale hydraulic filling with cutter suction dredgers.

1.3 River and Canal Regulation

Core Challenge: Severe sedimentation in rivers and canals reduces flow capacity, causes flood risks, damages irrigation systems and harms local aquatic ecosystems.

Application: Conduct desilting operations on major rivers such as the Nile and Mississippi to restore flow capacity and effectively prevent floods; remove excess invasive sediments to restore wetland environments; precisely excavate irrigation canals with designed slopes to support agricultural production.

1.4 Subsea Pipeline and Cable Trenching

Core Challenge: Subsea infrastructures such as oil and gas pipelines and optical fiber cables require trenching and burial to ensure stable and safe operation.

Application: Excavate narrow and deep trenches with a width of 1–4 meters and a maximum depth of 30 meters. Backfilling can be completed synchronously after pipeline/cable laying. Compared with traditional open-cut methods, it disturbs the seabed minimally and reduces marine environmental damage.

1.5 Mineral and Aggregate Extraction

Core Challenge: Engineering and industry have a sustained strong demand for sand, gravel and mineral resources from riverbeds and seabeds.

Application: Equip cutter heads with tungsten teeth to efficiently collect aggregates and excavate hard materials; screen alluvial sediments to extract valuable minerals such as tin and gold; implement environmentally friendly mining in protected areas with low-turbidity operation mode to avoid excessive damage to water environment.

1.6 Environmental Remediation

Core Challenge: Toxic sludge formed by industrial waste and heavy metal pollutants pollutes rivers, lakes and other water bodies, threatening ecological security.

Application: Use closed pipeline system to accurately remove contaminated sediments and transport contaminated slurry to professional treatment plants for purification and disposal. This technology has been successfully applied to habitat restoration projects such as PCB pollution cleanup in Chesapeake Bay.

1.7 Coastal Protection and Beach Nourishment

Core Challenge: Coastal erosion seriously threatens shoreline stability, coastal tourism and waterfront property safety.

Application: Pump high-quality sand from offshore to replenish eroded beaches, and use transported sediments to build breakwaters and artificial reefs to further enhance coastal protection capacity.Typical Case: Miami Beach Nourishment Project, USA.

1.8 Reservoir and Pond Management

Core Challenge: Long-term sedimentation in reservoirs and ponds continuously reduces effective storage capacity, affecting water supply and agricultural irrigation.

Application: Operate flexibly in restricted waters, deepen reservoirs, remove accumulated organic sludge at the bottom, improve water quality, and effectively restore agricultural and domestic water storage functions of reservoirs and ponds.

1.9 Core Advantages

High Precision: Equipped with spuds and GPS positioning system to achieve centimeter-level precise dredging, suitable for ecologically sensitive and narrow construction areas.

Strong Material Adaptability: Replaceable cutter heads adapt to various materials such as silt, clay, gravel, coral and soft rock, suitable for complex geological conditions.

Environmental Protection and High Efficiency: Closed slurry conveying system reduces water turbidity, minimizes disturbance to marine organisms, and meets ecological environmental protection requirements.

Economy: Hourly output exceeds 1000 cubic meters, shortening overall construction period by 30%–50% and effectively reducing project cost.

2 Typical Construction of Cutter Suction Dredger

Before large-scale formal excavation, trial excavation is recommended to determine the optimal construction parameters and achieve the best production efficiency. Construction parameters shall be reasonably determined according to on-site soil texture, mud layer thickness and excavation depth to match cutter excavation efficiency with slurry conveying efficiency, so as to achieve the highest productivity on the premise of ensuring construction quality.
After trial excavation, construction experience shall be summarized in timely manner to form parameter standards for subsequent formal construction.

2.1 Cutting Layer Thickness

Mainly determined by cutter size and soil texture. Generally, cutting layer thickness can be larger than cutter diameter for loose and soft soil, and smaller than cutter diameter for hard soil. For loose sand, layer thickness can be 2–3 times the cutter diameter, but excessive thickness may cause collapse and abnormal operation of dredge pump and cutter. Forward advance distance and traverse speed must be properly selected to ensure stable cutter operation without material omission. For general clay, layer thickness is 0–0.75 times cutter diameter; for hard soil and rock, it is about 0.5 times cutter diameter or even smaller.

2.2 Forward Advance Distance

Mainly determined by soil texture, cutting layer thickness and cutter length, generally 0.5–1.0 times cutter length. For soft soil, it can be larger than cutter length; for hard soil or thick cutting layer, it should be smaller than cutter length to avoid soil omission. Forward advance distance shall be reduced with the increase of excavation depth.

2.3 Traverse Speed

Mainly affected by soil texture, cutting layer thickness, forward advance distance and cutter rotational speed, and determined by traverse winch characteristics. Traverse speed shall be selected to achieve optimal suction concentration and ensure smooth operation of winch and cutter without overload. During construction, dredger operators can control traverse speed according to soil texture changes. For silt, soft soil and loose sand, slow traverse speed may cause over-depth when excavating to designed depth; for hard foundation soil, fast traverse speed may result in unexcavated soil above designed depth and shallow spots. Therefore, reasonable traverse speed matching designed layer depth shall be determined through trial excavation before formal construction.

2.4 Cutter Rotational Speed

Mainly determined by soil texture, traverse speed and cutter drive characteristics. Controlling cutter rotational speed aims to obtain optimal soil cutting thickness. With constant traverse speed, increased cutter speed produces thinner soil slices, facilitating suction process.

However, excessively high speed causes thin slices, increasing friction, wear and power consumption, which is not conducive to output improvement. Excessively low speed leads to overly thick slices, limited by the opening size between dredge pump and cutter arm, and may overload cutter and traverse winch. Cutter rotational speed shall be selected according to dredging soil texture and traverse speed.

Generally, faster traverse speed requires higher cutter speed, and harder dredging soil requires higher cutter rotational speed.

The four parameters of cutting layer thickness, forward advance distance, traverse speed and cutter rotational speed interact with each other and are mainly determined by experience.

Cutter suction dredgers should select these parameters through trial excavation at each new site to achieve good productivity.

2.5 Slurry Flow Velocity and Concentration

Stable and high output depends on matching sustained high concentration and high flow velocity. High concentration or high flow velocity alone cannot maintain high productivity. To ensure normal construction of cutter suction dredger, practical slurry flow velocity should be higher than critical flow velocity, leaving space for increasing slurry concentration to achieve safe, efficient and low-consumption construction.

Maintain relatively stable conveying status during construction. When conveying sand, stone and clay balls, prevent excessively high instantaneous concentration, drastic concentration changes and long-term water blowing. When concentration in pipeline is excessively high and flow velocity decreases rapidly, reduce suction concentration below average pipeline concentration and strive to increase dredge pump speed for continuous construction. Never reduce speed or blow water to clear pipelines.

Due to delayed response of instruments, especially concentration meters, while cutter oil pressure and suction vacuum respond relatively quickly, during traversing, when other dredging parameters are within normal range, mainly monitor cutter oil pressure and suction vacuum to adjust traverse speed.

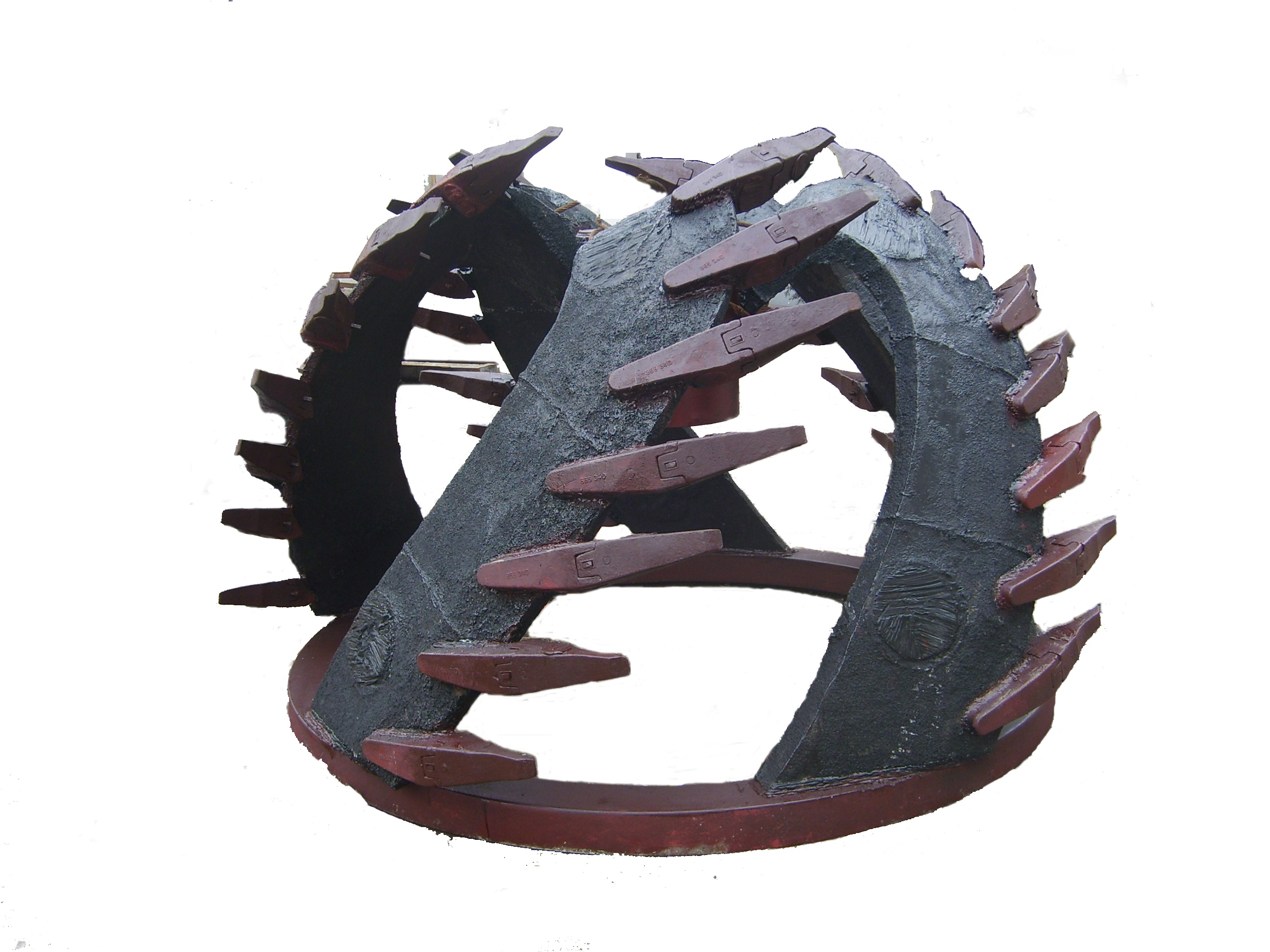

绞刀 (9)副本.jpg

3 Electric Cutter Rock Dredging Construction of Cutter Suction Dredger (CSD)

3.1 General Parameter Requirements for Rock Excavation

For coral reef excavation (strength 40MPa), cutter power ≥1500kW;

For limestone excavation, cutter power ≥2000kW;

Cutter rotational speed for rock construction should be controlled at 30rpm; excessively low speed easily produces large rocks causing pump blockage;

General principle: high speed for hard soil, low speed for soft soil.

3.2 Construction Case: 1400kW Electric Cutter CSD Rock Dredging at Dalian Port

3.2.1 Project Overview

This case is the underwater foundation trench rock excavation project at Dayaowan and Taipingwan Port Areas of Dalian Port. The geological conditions of the construction area are mainly highly weathered rock, moderately weathered rock, slightly weathered rock, gravel and clay wrapped with a large amount of gravel, which is a typical hard rock complex dredging condition.

The project adopts a 1400kW Electric Cutter CSD for excavation. Through targeted process optimization, practical construction problems such as low efficiency, severe equipment wear, and easy blockage of outlets and pumps under hard rock conditions are solved.

3.2.2 Construction Background and Difficulties

At present, cutter drives of cutter suction dredgers are divided into hydraulic drive and electric drive. Electric Cutter has rigid drive characteristics, can output full effective power and operate with instantaneous overload, with higher overall efficiency than hydraulic drive, making it more suitable for rock dredging.

However, existing domestic Electric Cutter Rock Dredging researches mostly take the 4200kW Tianjing Hao as the object, which is quite different from commonly used 1000–2000kW vessels, with few mature experiences for direct reference.

Main construction difficulties:

Hard stratum with low excavation efficiency and difficult guarantee of operating rate under conventional construction methods;

Hard stratum causes difficulty in anchoring traverse anchors, limiting vessel positioning and swinging;

High hardness of rock debris causes severe wear of suction and discharge pipelines, easy blockage of outlets and pumps;

Complex lithology (alternation of highly/moderately/slightly weathered rocks) makes it difficult to uniformly control construction parameters.

3.2.3 Construction Technology and Key Technical Measures

Electric Cutter Power Application:

Adopt 1400kW dual-motor coordinated drive, torque increased by 35%, equipped with dynamic power adjustment system, automatically increasing torque when encountering hard rock; underwater heat dissipation structure ensures long-term high-load operation of equipment, overall efficiency increased by 20% compared with traditional hydraulic drive.

Cutter and Tooth Selection:
Adopt tungsten carbide teeth to improve rock breaking capacity and wear resistance; match cutting parameters according to different lithology, control rock debris particle size and reduce large rock generation.

Rock Excavation Construction Method:
Implement layered stripping, first excavate the top weathered layer of rock stratum, then excavate step by step; cutter feeds spirally at 15° inclination to reduce cutter jamming and stalling risks; monitor stratum changes in real time through slurry concentration and automatically adjust feeding speed.

Anti-wear and Anti-pump Blockage Measures:
Optimize suction and discharge pipeline layout, control rock debris particle size within 30cm; adopt pipeline wear-resistant protection scheme to reduce erosion wear of rock debris and improve construction continuity.

Hard Stratum Mooring Guarantee:
Aiming at the difficulty of anchoring traverse anchors in hard rock areas, adopt mooring technology suitable for hard strata to ensure normal traverse and continuous excavation of vessels.

3.2.4 Construction Results and Application Effects

Significantly improve rock dredging productivity and operating rate under limited cutter power and bridge weight;

Maximum daily excavation volume reaches 8000m³, construction period shortened by 40% compared with traditional technology;

Electric energy replaces diesel, energy consumption per cubic meter of rock reduced by 1.2 kWh, construction cost lowered;

Underwater noise reduced by 50% compared with blasting excavation, small disturbance to marine ecology, safe and environmentally friendly;

Compared with processes such as reef blasting, heavy grab dredgers and rock drilling rods, it has faster equipment mobilization, faster production, less construction interference and higher comprehensive benefits.

3.2.5 Application Scope

This construction technology is suitable for Electric Cutter CSD with cutter power of 1000–2000kW, and can handle complex geological constructions such as highly weathered rock, moderately weathered rock, slightly weathered rock, gravel and clay wrapped with a large amount of gravel.

FAQs

FAQ 1: What are the primary applications of a Cutter Suction Dredger (CSD)?

A: The Cutter Suction Dredger (CSD) is a highly versatile workhorse in the dredging industry. Its core applications span eight major engineering fields:

Port and waterway maintenance, land reclamation, river/canal regulation, subsea pipeline and cable trenching, mineral aggregate mining, aquatic environmental remediation, coastal protection & beach nourishment, and reservoir desilting.

With its adaptability to marine, infrastructure, and environmental projects, the CSD is an indispensable asset for modern engineering.

FAQ 2: What are the key advantages of a CSD compared to other dredging equipment?

A: The CSD boasts several distinct competitive edges:

High Precision: It delivers centimeter-level accurate dredging, enabled by GPS systems and spud poles, making it ideal for operations in sensitive water areas.

Superior Adaptability: By simply swapping cutter heads, it can handle diverse geological conditions ranging from silt and clay to gravel and soft rock.

Environmental Protection: Utilizing a closed-pipeline transportation system, it significantly reduces water turbidity and minimizes ecological disruption.

High Efficiency: With an hourly production capacity exceeding 1,000 cubic meters, the CSD drastically shortens project timelines and reduces overall costs.

FAQ 3: Can a CSD handle dredging operations in heavily polluted waters?

A: Yes. The CSD is a core solution for aquatic environmental remediation. When dealing with contaminated sediments containing industrial waste or heavy metals, the CSD can precisely suction the polluted sludge through its closed pipeline system. This ensures zero dispersion of contaminants during transport. Furthermore, the polluted slurry can be directly pumped to specialized treatment plants for purification. Iconic environmental restoration projects, such as the PCB cleanup in the Chesapeake Bay, rely on CSDs to perform efficient and pollution-free desilting operations.
